IUIAutomation MS framework automate chrome, FF, IE, ....

sex123 · March 29, 2015

Are you sure you are using examples.zip?

yes,I am totally sure. I download from this bbs. BTW, My windows7 is not English. I am from Asia, Can this affect this udf?

sex123 · March 29, 2015

Attached File UIA_V0_4.zip 38.79KB 1482 downloads Attached File EXAMPLES.zip 56.23KB 1224 downloads Attached File EXAMPLES_V0_5.zip 59.88KB 816 downloads Attached File UIA_V0_51.zip 41.49KB 1250 downloads

I should download which zip?

junkew · March 29, 2015

$UIA_oDesktop should be used

EXAMPLES_V0_5.zip is the set related to UIA_V0_51.zip

ex7_firefox should be your starting point

and yes there can be language influence but normally thats only in recognition of objects:

;~ Make this language specific
const $cToolbarByName = "name:=Navigation Toolbar"
const $cAddressBarByName = "name:=Search or enter address"
const $cFFNewTabByName="name:=Open a new tab"
const $cstrDocument="Name:=" & "AutoIt.*" & "; controltype:=" & $UIA_DocumentControlTypeId & "; isoffscreen:=False"

sex123 · March 29, 2015

$UIA_oDesktop should be used

EXAMPLES_V0_5.zip is the set related to UIA_V0_51.zip

ex7_firefox should be your starting point

and yes there can be language influence but normally thats only in recognition of objects:
;~ Make this language specific
const $cToolbarByName = "name:=Navigation Toolbar"
const $cAddressBarByName = "name:=Search or enter address"
const $cFFNewTabByName="name:=Open a new tab"
const $cstrDocument="Name:=" & "AutoIt.*" & "; controltype:=" & $UIA_DocumentControlTypeId & "; isoffscreen:=False"

thanks, I update my win7 from Chinese to English Version and download Firefox English Version. Then It works! But the following information is shown:

>"C:Program Files (x86)AutoIt3SciTE..autoit3.exe" /ErrorStdOut "E:au444ex7_firefox.au3"

Action 1

Action 2

Action 3

Action 4

Action 5

Action 6

Action 7 retrieve document after clicking a hyperlink

Action 7 failed

>Exit code: 0 Time: 17.07

Action 7 Failed. This may be my slow network? How can I solve this problem?

BTW, Can you suggest my setting on my Chinese Win7 Version. So I should not change my Win CN to Win ENG. That may be easy for me to use this udf, else I have to change my CN Version(chinese Version) to Eng Version.

junkew · March 29, 2015

Maybe better to ask question in general help and support. There is no reason why it shouldnt work as iuiautomation is part of win 7. The simple spy can give you basic source on elements. The examples are on dutch and english.

sex123 · March 30, 2015

Maybe better to ask question in general help and support. There is no reason why it shouldnt work as iuiautomation is part of win 7. The simple spy can give you basic source on elements. The examples are on dutch and english.

ok I want to log in the website use firefox. The url is

https://weblogin.utoronto.ca/

after log in I want to download the pdf use firefox

https://login.library.utoronto.ca/auth/start.pl?url=http://www.jbc.org/content/290/7/4163.full.pdf

Can u help me? Especially how to log in use your udf?

junkew · March 30, 2015

use simplespy and hover over the elements

and press ctrl+w

as described in the quickstart getting started of this thread.

it will give you the basic source as a starting point

then if you need help start a thread in general help and support

Quickstart

Start simplespy.au3
Hover your mouse over the element you want to handle
Press ctrl+w
Copy / paste the given source to a new AutoIT script
If you need help
- ask for help in new thread in general support section and post
  - screenshot that shows your element is highlighted with simplespy
  - post output of simplespy with all properties
  - attached log.txt if available in your script directory
  - use allways contents of latest zip files which could be work in progress (WIP) zip

Edited March 30, 2015 by junkew

sex123 · March 31, 2015

use simplespy and hover over the elements

and press ctrl+w

as described in the quickstart getting started of this thread.

it will give you the basic source as a starting point

then if you need help start a thread in general help and support

Quickstart

Start simplespy.au3

Hover your mouse over the element you want to handle

Press ctrl+w

Copy / paste the given source to a new AutoIT script

If you need help
ask for help in new thread in general support section and post
screenshot that shows your element is highlighted with simplespy

post output of simplespy with all properties

attached log.txt if available in your script directory

use allways contents of latest zip files which could be work in progress (WIP) zip

Following your suggestion, I use simplespy.au3 and run firefox to open the website. I put my mouse into the blank where to log in my acount and password. Finally I run simplespy by Press F5. But I got so many information: which one should I use.

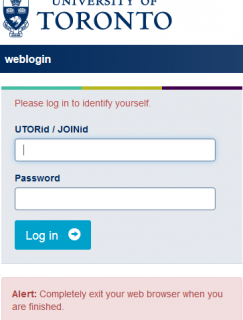

The following is I put my mouse into the UTORId blank.

Mouse position is retrieved 183-379

At least we have an element [uTORid / JOINid][]

Having the following values for all properties:

Title is: <UTORid / JOINid> Class := <> controltype:= <UIA_EditControlTypeId> ,<50004> , (0000C354) 125;360;300;34

*** Parent Information top down ***

11: Title is: <Desktop> Class := <#32769> controltype:= <UIA_PaneControlTypeId> ,<50033> , (0000C371) 0;0;1366;768

"Title:=Desktop;controltype:=UIA_PaneControlTypeId;class:=#32769"

10: Title is: <weblogin | University of Toronto - Mozilla Firefox> Class := <MozillaWindowClass> controltype:= <UIA_WindowControlTypeId> ,<50032> , (0000C370) -4;-4;1374;732

"Title:=weblogin | University of Toronto - Mozilla Firefox;controltype:=UIA_WindowControlTypeId;class:=MozillaWindowClass"

9: Title is: <> Class := <> controltype:= <UIA_CustomControlTypeId> ,<50025> , (0000C369) 0;97;1366;627
