Problem with - png image in ListViewItem

[incepator]

#include <GUIConstantsEx.au3>
#include <ListViewConstants.au3>
#include <WindowsConstants.au3>

Global $Bin = InetRead ("http://www.find-ip-address.org/ip-location-lookup-module.php")
Global $Page = BinaryToString ($Bin)

$YourIP = Grep($Page, "Your IP Number")
$YourCountry = Grep($Page, "Your Country Name")

#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Form1", 334, 153, 431, 304)
$ListView1 = GUICtrlCreateListView("my ip|my contry|flag state", 0, 0, 330, 150)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 0, 50)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 1, 100)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 2, 100)
$ListView1_0 = GUICtrlCreateListViewItem($YourIP&"|"&$YourCountry&"|"&"-", $ListView1)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###


While 1
$nMsg = GUIGetMsg()
Switch $nMsg
Case $GUI_EVENT_CLOSE
Exit

EndSwitch
WEnd

Func Grep($sString, $sSearch)
Local $aGrep = StringRegExp($Page, "(?i)(?U)" & $sSearch & ": <b>(.*)</b>", 3)
If @error Then Return SetError(@error, 0, 0)
Return $aGrep[0]
EndFunc

hello!

can someone help me with this ...

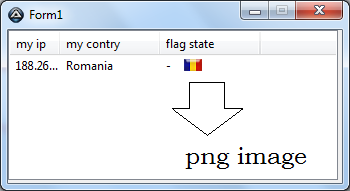

I made this script, but the problem is that they fail in any way to set a small size picture inside the list.

Thank you!

Edited March 28, 2013 by incepator

[careca]

I've been playing around with that, (i mean it has been playing around with me)

and couldn't find a way to do it, in here, no image appears anywhere in the listview.

I managed to place a colored image in some places of the listview, but no external png or other,

just plain image with a color code in hex defined by me.

[water]

Please have a look at the GUIListView UDF (comes with AutoIt). Check function _GUICtrlListView_AddItem and the example script in the help file.

[UEZ]

Try this:

expandcollapse popup

#include <GuiImageList.au3>
#include <GDIPlus.au3>
#include <GuiListView.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

_GDIPlus_Startup()
Global $Bin = InetRead("http://www.find-ip-address.org/ip-location-lookup-module.php")
Global $Page = BinaryToString($Bin)

$YourIP = Grep($Page, "Your IP Number")
$YourCountry = Grep($Page, "Your Country Name")

#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Form1", 334, 153, 431, 304)
$ListView1 = GUICtrlCreateListView("my ip|my contry|flag state", 0, 0, 330, 150, -1, BitOR($WS_EX_CLIENTEDGE, $LVS_EX_DOUBLEBUFFER, $LVS_EX_SUBITEMIMAGES))
$hListView = GUICtrlGetHandle($ListView1)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 0, 50)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 1, 100)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 2, 100)
;~ $ListView1_0 = GUICtrlCreateListViewItem($YourIP&"|"&$YourCountry&"|", $ListView1)
$hBitmap = _GDIPlus_BitmapCreateFromFile(@ScriptDir & "\Flag_ROM.png")
$hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmap)
$hFlags = _GUIImageList_Create(16, 16, 5, 0)
_GUIImageList_Add($hFlags, $hHBitmap)
_GUICtrlListView_SetImageList($hListView, $hFlags, 1)
_GDIPlus_BitmapDispose($hBitmap)
_WinAPI_DeleteObject($hHBitmap)
_GUICtrlListView_AddItem($hListView, $YourIP, 1000)
_GUICtrlListView_AddSubItem($hListView, 0, $YourCountry, 1, 1000)
_GUICtrlListView_AddSubItem($hListView, 0, "", 2, 0)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###


While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            _GDIPlus_Shutdown()
            Exit
    EndSwitch
WEnd

Func Grep($sString, $sSearch)
    Local $aGrep = StringRegExp($Page, "(?i)(?U)" & $sSearch & ": <b>(.*)</b>", 3)
    If @error Then Return SetError(@error, 0, 0)
    Return $aGrep[0]
EndFunc   ;==>Grep

Br,

UEZ

Edited March 28, 2013 by UEZ

[water]

@UEZ,

brilliant!

[incepator]

Thank You

@UEZ

[Clark]

Very cool UEZ,

I am not understanding why the number 1000 in the following line though:

_GUICtrlListView_AddSubItem($hListView, 0, $YourCountry, 1, 1000)

Can you enlighten me please?

[UEZ]

Very cool UEZ,

I am not understanding why the number 1000 in the following line though:

_GUICtrlListView_AddSubItem($hListView, 0, $YourCountry, 1, 1000)

Can you enlighten me please?

This selects the 1001st icon to display it, a dummy one.

E.g. if you use these lines

_GUICtrlListView_AddItem($hListView, $YourIP, 0)
_GUICtrlListView_AddSubItem($hListView, 0, $YourCountry, 1, 0)

you will see that the 1st and 2nd colums have the 1st icon, too. 1000 means simply select the 1001st icon (zero based) and display it. If there is no icon on that index display nothing.

I hope it's clear now.

Br,

UEZ

[Clark]

Yes, I understand now. I knew it was the reference to the icon but I couldn't figure out why the number 10,000

One further question about your script. I noticed that if I put some error checking around this line:

_GUICtrlListView_SetImageList($hListView, $hFlags, 1)

...it is returning a zero, which according to the help file indicates a failure. Is this important? (I guess not seeing as your programme works, but if it returning an error does the line of code need to be there at all?) [edit: Well, removing the line means the icon doesn't get displayed, so not sure what the return value of zero is all about.]

Now, I know this is asking a lot, but if I wanted to be able to click on the displayed icon, and change it to another icon, is that possible do you think? (This is a real world application I am writing, not an intellectual exercise.)

I am already using the udf that allows listboxview items to be editable and sortable, if that helps.

(I feel that it could and should be possible, as the second image can be the next image in the list, and the listviewitem is editable, but not sure how to go about making the program realise the user has clicked on the icon and then display the second icon.)

Edited April 16, 2013 by Clark

[Clark]

Further to this, there is some funny stuff going on with listviewboxes.

For example, using your program above, if I add the following line:

_GUICtrlListView_SetExtendedListViewStyle($ListView1, $LVS_EX_FULLROWSELECT)

...the icon will not display.

However, if I include $LVS_EX_FULLROWSELECT as part of the initial creation of the listboxview, the icon will display. i.e.

$ListView1 = GUICtrlCreateListView("my ip|my contry|flag state", 0, 0, 330, 150, -1, BitOR($WS_EX_CLIENTEDGE, $LVS_EX_DOUBLEBUFFER, $LVS_EX_SUBITEMIMAGES,$LVS_EX_FULLROWSELECT))

Very strange...

[UEZ]

Further to this, there is some funny stuff going on with listviewboxes.

For example, using your program above, if I add the following line:

_GUICtrlListView_SetExtendedListViewStyle($ListView1, $LVS_EX_FULLROWSELECT)

...the icon will not display.

However, if I include $LVS_EX_FULLROWSELECT as part of the initial creation of the listboxview, the icon will display. i.e.

$ListView1 = GUICtrlCreateListView("my ip|my contry|flag state", 0, 0, 330, 150, -1, BitOR($WS_EX_CLIENTEDGE, $LVS_EX_DOUBLEBUFFER, $LVS_EX_SUBITEMIMAGES,$LVS_EX_FULLROWSELECT))

Very strange...

With _GUICtrlListView_SetExtendedListViewStyle() you are overwritting the ext. styles. You have to use this instead:

_GUICtrlListView_SetExtendedListViewStyle($ListView1, BitOR($WS_EX_CLIENTEDGE, $LVS_EX_DOUBLEBUFFER, $LVS_EX_SUBITEMIMAGES, $LVS_EX_FULLROWSELECT))

Regarding the return value of _GUICtrlListView_SetImageList(). The reason for being 0 is that there is no previous image list. The error code is also 0 which means no error has occured.

To change the icon when clicking on it you have to extend the image list at least by one image. Afterwards you have to use notify windows message to check which column / row was clicked to change the icon.

Br,

UEZ

Edited April 16, 2013 by UEZ

[Clark]

Got it!

Thanks for the explanations UEZ
