[Rogue5099]

This is awesome Melba!!! Great concept and implementation! Makes me want to make more GUI controls!

[CodingCody37]

Hi Melba23 and thanks for your cool UDFs, here's a little question, is there a way to embed a child GUI inside an extendable section ? Here's a little test script, I have commented the lines that I would like to work but that unfortunately don't until now...

#include <GUIConstantsEx.au3>
#include "GUIExtender.au3"
#include "GUIScrollbars_Ex.au3"

Opt("GUIOnEventMode", 1)

$hGUI_1 = GUICreate("GUI Extender with Child GUI test", 300, 180, 100, 100)
GUISetBkColor(0xBBCCFF, $hGUI_1)
GUISetOnEvent($GUI_EVENT_CLOSE, "On_Exit")

_GUIExtender_Init($hGUI_1)

_GUIExtender_Section_Start($hGUI_1, 0, 60)
GUICtrlCreateGroup(" 1 - Static ", 10, 10, 280, 50)
_GUIExtender_Section_Action($hGUI_1, 2, "", "", 270, 40, 15, 15, 0, 1) ; Normal button
_GUIExtender_Section_End($hGUI_1)

_GUIExtender_Section_Start($hGUI_1, 60, 110)
GUICtrlCreateGroup(" 2 - Extendable ", 10, 70, 280, 100)
;~ $childGUI = GUICreate("Child", 280, 100, 10, $WS_POPUP, -1, $hGUI_1)
;~ GUISetBkColor(0xAACF0C, $childGUI)
;~ GUISetState(@SW_SHOW, $childGUI)
;~ DllCall("user32.dll", "int", "SetParent", "hwnd", WinGetHandle($childGUI), "hwnd", WinGetHandle($hGUI_1))
;~ _GUIScrollbars_Generate($childGUI, 2000, 0, 0, 0, Default, 7)
_GUIExtender_Section_End($hGUI_1)

GUICtrlCreateGroup("", -99, -99, 1, 1)

GUISetState()

While 1
    Sleep(50)
WEnd
Func On_Exit()
    Exit
EndFunc   ;==>On_Exit

[Melba23]

CodingCody37,

You mean like this?

expandcollapse popup

#include <GUIConstantsEx.au3>
#include "GUIExtender.au3"
#include "GUIScrollbars_Ex.au3"
#include <WinAPI.au3>

Opt("GUIOnEventMode", 1)

$hGUI_1 = GUICreate("GUI Extender with Child GUI test", 300, 180, 100, 100)
GUISetBkColor(0xBBCCFF, $hGUI_1)
GUISetOnEvent($GUI_EVENT_CLOSE, "On_Exit")

_GUIExtender_Init($hGUI_1)

_GUIExtender_Section_Start($hGUI_1, 0, 60)
GUICtrlCreateGroup(" 1 - Static ", 10, 10, 280, 50)
_GUIExtender_Section_Action($hGUI_1, 2, "", "", 270, 40, 15, 15, 0, 1) ; Normal button
_GUIExtender_Section_End($hGUI_1)

_GUIExtender_Section_Start($hGUI_1, 60, 110)
GUICtrlCreateGroup(" 2 - Extendable ", 10, 70, 280, 100)
_GUIExtender_Section_End($hGUI_1)

GUISetState()

$childGUI = GUICreate("Child", 280, 90, 10, 80, $WS_POPUP, -1, $hGUI_1)
GUISetBkColor(0xFFCCCC, $childGUI)
GUISetState(@SW_SHOW, $childGUI)
_WinAPI_SetParent($childGUI, $hGUI_1)
_GUIScrollbars_Generate($childGUI, 2000, 0, 0, 0, Default, 7)

While 1
    Sleep(50)
WEnd

Func On_Exit()
    Exit
EndFunc   ;==>On_Exit

M23

[CodingCody37]

CodingCody37,

You mean like this?

M23





definitely ! The answer was very simple, my brain was focused on "putting the elements in the sections" and I've put the lines of code to mimic that without actually thinking at what I was writing lol ...it looks so clear and obvious now than I'm a bit ashamed hehe, thanks for the heads-up !

// I can see that my code even had a childGUI where I somehow deleted the "top" parameter by mistake, ty for the correction as well :-)

Edited August 19, 2014 by CodingCody37

[Melba23]

CodingCody37,

If you have sections below the child GUI, you need to do a bit more:

<snip>

All clear I hope.

M23

Edited August 21, 2014 by Melba23
Old Beta code removed

[CodingCody37]

Thank you ! You're anticipating questions, I guess that's called being experienced ^^ , yes I will have sections lying under, thus I would have obviously came across this little tweak that you showed me ;-)

Edited August 19, 2014 by CodingCody37

[Melba23]

CodingCody37,



You're anticipating questions, I guess that's called being experienced

Thanks - and I have come up with another scenario where you will need to do even more. If the child GUI has retractable sections above it we will need to relocate the child GUI to its new position if they are extended/retracted. I have some working code to do just that - but I will see if I can make it easier for the coder by getting it all into a single function. Stay tuned!

M23

[Melba23]

Hi,

Here is modified UDF and example which will cater for embedded child GUIs:

<snip>

Comments welcomed.

M23

Edited August 21, 2014 by Melba23
Old Beta code removed

[mLipok]

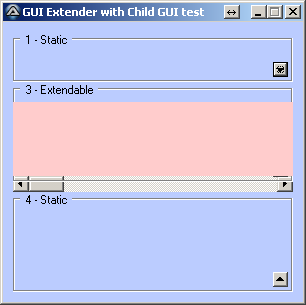

There is small issue with GUI.

EDIT: I attach png where you can see how scrollbar is not correctly refreshed/repainted.

Edited August 19, 2014 by mLipok

[CodingCody37]

great ! gonna look at this tomorrow, off to bed right now. It's nice that you took it a little further, because as you've guessed, embedding GUIs to retractable sections is really useful, especially in my case where I needed to use your easy scrollbars, thus I needed that kind of child GUI !

Edited August 20, 2014 by CodingCody37

[Melba23]

mLipok,

That is an artefact caused by the overlap of the group frame and the scrollbar. I already redraw the child GUI - I would have thought that the scrollbars would have been redrawn too, but evidently not. Anyway, if you reduce the child height by 10 pixels it no longer appears - and how often will there be overlapping group frames and scrollbars anyway?

M23

[CodingCody37]

Just a quick note about mLipok's screenshot, this is also a typical case where your NoFocusLines UDF is handy, because if you watch the tiny arrow button used to develop or retract the section, with the dotted selection lines around it looks wrong (because of the small size), so getting rid of them is good in this case ^^

[CodingCody37]

Hi,

Here is modified UDF and example which will cater for embedded child GUIs:

<snip>

Comments welcomed.

M23



Just tested and I must say ..nice ! And thanks because that's a piece of code that would obviously have been needed a moment or another, and you just made it even simplier by adding it to the UDF itself, allowing us to build even more complicated apps with minimum thinking. Thumbs up!



I could go crazy and build a "La Vache qui rit" GUI :



(in other words, infinite nested retractable stuff lol... sorry I'm french and that's a thing coming to my mind right away when thinking of "Mise en abyme" !)



I remember once doing this with operating systems and virtual machines.. installing win98 on WinXP on..Win7 host haha...just for fun

Edited August 21, 2014 by Melba23
Link to old Beta removed

[Melba23]

CodingCody37,

Glad you like it. I will write some header info for the added functions and release a new version in the next few days.

M23

[CodingCody37]

I'll stay tuned to update my files

[Melba23]

CodingCody37 (and anyone else reading),

Here is a more polished Beta version with even easier syntax which mirrors the existing function for UDF-created controls:

<snip>

Please comment, report bugs, etc.

M23

Edited August 22, 2014 by Melba23
Removed Beta code

[Melba23]

Back again,

There was a problem with minimizing and restoring the GUI with the earlier code. A lot of testing shows that you must NOT use the parent parameter when creating the child GUI, or else you do not get a $GUI_EVENT_RESTORE message. I have also merged the code for embedding UDF-created controls and child GUIs into a single function - all you need to do is set a parameter to tell the UDF what it is dealing with - as you can see here:

<snip>

As usual, comments welcome from any testers.

M23

Edited August 24, 2014 by Melba23
Beta code removed

[Melba23]

[New version] - 24 Aug 14

Added: Ability to embed child GUIs. Child GUIs must be created with the $WS_POPUP style and the _WinAPI_SetParent function used, not the "parent" parameter of GUICreate.

This is a script-breaking change. The old _GUIExtender_UDFCtrlCheck function has been replaced with the new _GUIExtender_HandleCheck function which deals with both UDF-created controls and child GUIs, Just replace the old function name with the new one - no other syntax changes needed.

New UDF and examples in zip in first post.

M23

[Stormgrade]

Hello,

I'm a new user on this forum, I used to be on the French autoit forum, but even if I'm not very good with my English I need your help.

First thank you for your UDF, very useful.
I'm making some lab and I try to make Guiextender work.

I'm new to Autoit.

Anyway I'll try to combine resources.udf with your udf but I have somes bugs.

>Resources UDF link

Well here my script : and yeah I borrowed >from it on your topic for trying.

This intend to be a network checkup.

expandcollapse popup

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_Outfile=test.exe
#AutoIt3Wrapper_UseX64=n
#AutoIt3Wrapper_Res_File_Add=red.bmp, rt_bitmap, BMP_1
#AutoIt3Wrapper_Res_File_Add=green.bmp, rt_bitmap, BMP_2
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****

#include <GUIConstantsEx.au3>
#include "GUIExtender.au3"
#include "resources.au3"

Opt("GUIOnEventMode", 1)

Local $Button, $iThis_Section

$hGUI = GUICreate("Vertical", 300, 170, 100, 100)
GUISetOnEvent($GUI_EVENT_CLOSE, "On_Exit")

_GUIExtender_Init($hGUI)

$Section1 = _GUIExtender_Section_Start($hGUI, 0, 90)

Global $IMGTest1 = GUICtrlCreatePic("", 15, 20, 25, 25)
Global $Test1 = GUICtrlCreateLabel("Test1", 56, 20, 361, 24)
Global $IMGTest2 = GUICtrlCreatePic("", 15, 50, 25, 25)
Global $Test2 = GUICtrlCreateLabel("Test2", 56, 50, 361, 24)


$Button = _GUIExtender_Section_Action($hGUI, 2, "", "", 50, 75, 175, 15, 0, 1)

_GUIExtender_Section_End($hGUI)

$Section2 = _GUIExtender_Section_Start($hGUI, 90, 80)
$List1 = GUICtrlCreateList("", 10, 98, 280, 70)
_GUIExtender_Section_End($hGUI)
_GUIExtender_Section_Extend($hGUI, 0, False)

GUISetState()

$hBmp1 = _ResourceGet("BMP_1", $RT_BITMAP)
$hBmp2 = _ResourceGet("BMP_2", $RT_BITMAP)
_SetBitmapToCtrl($IMGTest1, $hBmp1)
_SetBitmapToCtrl($IMGTest2, $hBmp1)


Local $IP1 = "www.google.com"
$result = WMI_Ping($IP1,32,false,0,true)
If NOT @ERROR Then
    _SetBitmapToCtrl($IMGTest1, $hBmp2)
    GUICtrlSetData($Test1,"Accès à " & $IP1 & " en " & $result & " ms")
Else
    GUICtrlSetData($Test1,"Echec ping vers " & $IP1)
EndIf

Local $IP2 = "www.sdgbgwdfhg.com"
$result = WMI_Ping($IP2,32,false,0,true)
If NOT @ERROR Then
    _SetBitmapToCtrl($IMGTest2, $hBmp2)
    GUICtrlSetData($Test2,"Accès à " & $IP2 & " en " & $result & " ms")
Else
    GUICtrlSetData($Test2,"Echec ping vers " & $IP2)
EndIf

While 1
    Sleep(100)
WEnd

Func WMI_Ping($sAddress = "127.0.0.1", $iBufferSize = 32, $bNoFragmentation = False, $iRecordRoute = 0, $bResolveAddressNames = False, $sSourceRoute = "")
    Local $colItems = "", $strComputer = "localhost", $strStatusCode = 0, $strResponseTime = 0, $Output = ""
    Local $objWMIService = ObjGet("winmgmts:\\" & $strComputer & "\root\CIMV2")
    Local $sQuery = "SELECT * FROM Win32_PingStatus WHERE "
    $sQuery &= "address = '" & $sAddress & "' "
    $sQuery &= "AND BufferSize = " & $iBufferSize & " "
    $sQuery &= "AND NoFragmentation = " & $bNoFragmentation & " "
    $sQuery &= "AND RecordRoute = " & $iRecordRoute & " "
    $sQuery &= "AND ResolveAddressNames = " & $bResolveAddressNames & " "
    $sQuery &= "AND SourceRoute = '" & $sSourceRoute & "'"

    $colItems = $objWMIService.ExecQuery($sQuery, "WQL", 0x10 + 0x20)

    If IsObj($colItems) Then
        ConsoleWrite("Object Name: " & ObjName($colItems) & @CRLF)
        For $objItem In $colItems
            $strResponseTime = $objItem.ResponseTime
            $strStatusCode = $objItem.StatusCode
        Next

        If $strStatusCode <> 0 Then
            Return SetError(1,0,$strStatusCode)
        Else
            Return $strResponseTime
        EndIf
    Else
        Return SetError(2,0,0)
    EndIf

EndFunc   ;==>WMI_Ping

Func On_Exit()
    Exit
EndFunc

You can download it here.

Well my problem is when I unhide my gui, my controls go away

First :

Then when I unhide

My green square become huge et my red square disapear.

Thank you for your help

[Melba23]

Stormgrade,

If by "hide/unhide" you mean "minimize/restore" then you need to call the _GUIExtender_Restore function when a $GUI_EVENT_RESTORE event occurs. When I add that the GUI behave normally:

$hGUI = GUICreate("Vertical", 300, 170, 100, 100)
GUISetOnEvent($GUI_EVENT_CLOSE, "On_Exit")
GUISetOnEvent($GUI_EVENT_Restore, "_GUIExtender_Restore") ; <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

I hope that solves your problem.

M23
