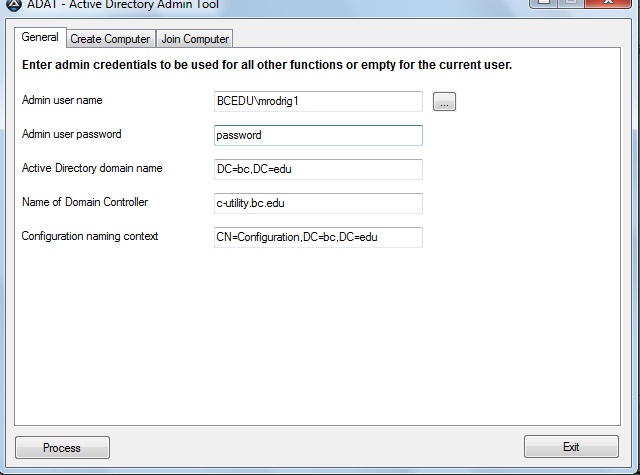

The "General" tab should look like:

<domain><userid>
<password>
DC=microsoft,DC=com
<servername>.microsoft.com
CN=Configuration,DC=microsoft,DC=com
<servername>.microsoft.com is optional.

OK. Also where can I hard code the last three inputs in the General tab?
Link to comment
Share on other sites

When the location column is empty then the property "location" in AD is empty. Or in which property do you save the location?

To hard code the values i suggest an INI file. So the script remains flexible.

I will post a new version.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

Run ADAT at a PC which as a domain member and you'll see the needed values.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

I have uploaded a new version to post #11. Rename the attached .txt file to .ini and set the values in he .ini file to fill the "General" tab.

N.B. The new version doesn't show the domain parameters any more. It only takes them from the ini file

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

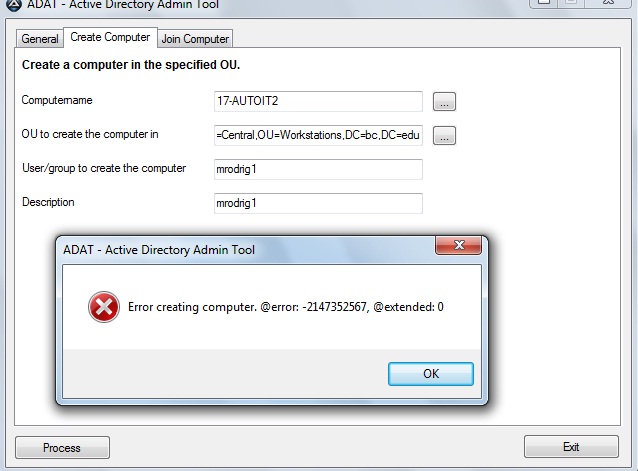

The error code you get is a general error. In most of the cases it means: Missing permissions.

Can you check with the AD admin that the user you have set on the "General" tab has the permissions to set permissions for a computer account?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

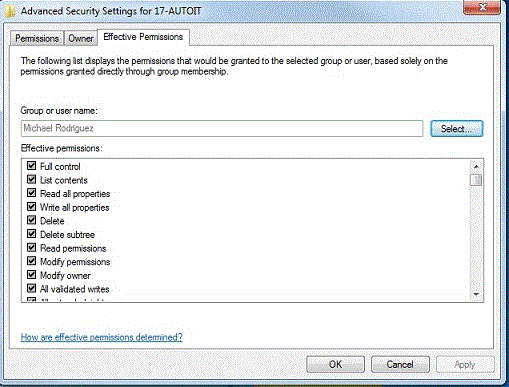

Which user do you use to run the tool to set the permissions on the user account?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

To join a computer to a domain three steps are necessary:

  • _AD_CreateComputer($sAD_OU, $sAD_Computer, $sAD_User) to create a computer account in the specified OU. $sAD_User is the user or group that will be allowed to add the computer to the domain (SamAccountName).

    This is a two step process. Create the computer and then set permissions on the computer account. The commands are executed with the credentials of the user specified for _AD_Open (in the case of ADAT the user specified on the "general" tab). If this user doesn't have the permission to change a computer account then you see errorcode you got above.

  • _AD_JoinDomain($sAD_Computer[, $sAD_UserParam, $sAD_PasswordParam]) to join the computer to the domain. UserParam and PasswordParam are optional and need to be used when the user who is running the script doesn't have the needed rights to join the computer to the domain
  • Reboot the computer
I think the current problem is caused by the user connecting to the AD not having proper permissions to change a computer account. Could you try to connect to the AD as domain admin?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

When logged in as myself, I can run the tool and I get no error creating computer accounts. However, When I log in as the local administrator on a newly cloned machine and use my credentials (in the tool), I get the error.

Edited by mik3
Link to comment
Share on other sites

:) Thanks for this information! It's my fault not passing the credentials from the "General" tab to the function calls. I will post an updated version tomorrow!

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

I have uploaded a new version to post #11.

If this version still gives errors when creating the computer account:

  • try to login using format "domainusername" on the "general" tab instead of "username"
  • Insert "i$AD_Debug = 2" after the "#include <AD.au3>" line
Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

I have uploaded a new version to post #11.

If this version still gives errors when creating the computer account:

  • try to login using format "domainusername" on the "general" tab instead of "username"
  • Insert "i$AD_Debug = 2" after the "#include <AD.au3>" line

#include<AD.au3>

i$AD_Debug = 2

or like this

#include<AD.au3> i$AD_Debug = 2

Link to comment
