Create PDF from your application

[Emiel Wieldraaijer]

@SDothard,

I believe you want to add an existing PDF as background

if so than you have to convert the PDF into a JPG and  do the following

_LoadResImage ("Background", "Background.jpg")

_BeginPage()

_InsertImage("Background", 0, 0, _GetPageWidth() / _GetUnit(), _GetPageHeight() / _GetUnit())

Edited October 17, 2014 by Emiel Wieldraaijer

[vicmandev]

Allowing accented characters

Change in MPDF_UDF.au3 v1.0.3

expandcollapse popup

Func _LoadFontTT($sAlias, $BaseFont, $sOptions = $PDF_FONT_NORMAL)
    Local $sTemp = ""
    $_Font = $_Font + 1
    $BaseFont = StringReplace($BaseFont, " ", "")
    Switch $BaseFont
        Case "TimesNewRoman"
            __FontTimes($sOptions)
        Case "CourierNew"
            __FontCourier($sOptions)
        Case "Symbol"
            __FontSymbol($sOptions)
        Case "Calibri"
            __FontCalibri($sOptions)
        Case "Garamond"
            __FontGaramond($sOptions)
        Case Else
            __FontArial($sOptions)
    EndSwitch
    Local $i = __InitObj()
    __ToBuffer("<< /Type/Font/Subtype/TrueType/Name/" & $sAlias & "/BaseFont/" & $BaseFont & $sOptions & "/FirstChar " & $FirstChar & "/LastChar " & $LastChar & "/FontDescriptor " & $i + 1 & " 0 R/Encoding/WinAnsiEncoding/Widths [")
    For $j = $FirstChar To $LastChar
        If $Widths[$j - $FirstChar] <> 0 Then
            $sTemp &= __ToStr($Widths[$j - $FirstChar]) & " "
            If Mod($j - $FirstChar + 1, 16) = 0 Or $j = $LastChar Then
                __ToBuffer($sTemp)
                $sTemp = ""
            EndIf
        EndIf
    Next
    __ToBuffer("] >>")
    __EndObj()
    $_sFONT = $_sFONT & "/" & $sAlias & " " & $i & " 0 R " & @CRLF
    $_sFONTNAME = $_sFONTNAME & "<" & $sAlias & ">" & StringRight("0000" & $_Font, 4) & ";"
    ;$i =
    __InitObj()
    __ToBuffer("<< /Type/FontDescriptor/FontName/" & $BaseFont & $Param & ">>")
    __EndObj()
EndFunc   ;==>_LoadFontTT

To

expandcollapse popup

Func _LoadFontTT($sAlias, $BaseFont, $sOptions = $PDF_FONT_NORMAL)
    Local $sTemp = ""
    $_Font = $_Font + 1
    $BaseFont = StringReplace($BaseFont, " ", "")
    Switch $BaseFont
        Case "TimesNewRoman"
            __FontTimes($sOptions)
        Case "CourierNew"
            __FontCourier($sOptions)
        Case "Symbol"
            __FontSymbol($sOptions)
        Case "Calibri"
            __FontCalibri($sOptions)
        Case "Garamond"
            __FontGaramond($sOptions)
        Case Else
            __FontArial($sOptions)
    EndSwitch
    Local $i = __InitObj()
    __ToBuffer("<< /Type/Font/Subtype/TrueType/Name/" & $sAlias & "/BaseFont/" & $BaseFont & $sOptions & "/FirstChar " & $FirstChar & "/LastChar " & $LastChar & "/FontDescriptor " & $i + 1 & " 0 R/Encoding/WinAnsiEncoding/Widths [")
    For $j = $FirstChar To $LastChar
        ; VMA, para que acepte cualquier caracter
        If $Widths[$j] <> 0 Then
            $sTemp &= __ToStr($Widths[$j]) & " "
            If Mod($j - $FirstChar + 1, 16) = 0 Or $j = $LastChar Then
                __ToBuffer($sTemp)
                $sTemp = ""
            EndIf

        EndIf
        #cs
        If $Widths[$j - $FirstChar] <> 0 Then
            $sTemp &= __ToStr($Widths[$j - $FirstChar]) & " "
            If Mod($j - $FirstChar + 1, 16) = 0 Or $j = $LastChar Then
                __ToBuffer($sTemp)
                $sTemp = ""
            EndIf
        EndIf
        #ce
    Next
    __ToBuffer("] >>")
    __EndObj()
    $_sFONT = $_sFONT & "/" & $sAlias & " " & $i & " 0 R " & @CRLF
    $_sFONTNAME = $_sFONTNAME & "<" & $sAlias & ">" & StringRight("0000" & $_Font, 4) & ";"
    ;$i =
    __InitObj()
    __ToBuffer("<< /Type/FontDescriptor/FontName/" & $BaseFont & $Param & ">>")
    __EndObj()
EndFunc   ;==>_LoadFontTT

[ElTiburon]

If you look to output PDF's from your application (generate reports, graphics, tables etc), this UDF can be very useful.



In the zip file are examples, images for testing and the UDF.



Enjoy!



I have removed some of the previous versions due to the lack of space, but they are still available on request.





[uPDATED June 22] v.1.0.1 Added more page formats, two more fonts, example table ...



[uPDATED July 30] v1.0.2 Solved issues with Adobe Reader. StuffByDennis added two more functions (Thanks Dennis).



[uPDATED August 10] v1.0.3 Rewrote entirely _LoadResImage function - optimize for speed/size of the pdf. Fixed the Example_Image2PDF

Thanks to xavierh for finding a missing space in the _LoadFontTT function (even it looks insignificant, that solved

an issue with text justification when using Adobe Reader, not Foxit Reader)



Total downloads old versions: 2044 + 21



Version 1.0.3: MPDFv103.zip





Hidden Content



Hi all,

after I updated AutoIt to the latest version 2 functions not working anymore:

; #FUNCTION# ====================================================================================================================
; Name ..........: _GetTextLength
; Description ...: Get the length of a string
; Syntax ........: _GetTextLength( $sText , $sFontAlias , $iFontSize  )
; Parameters ....: $sText               -  string value.
;                  $sFontAlias          -  string value.
;                  $iFontSize           -  integer value.
; Return values .: None
; Author(s) .....: Mihai Iancu (taietel at yahoo dot com)
; Modified ......:
; Remarks .......:
; Related .......:
; Link ..........: http://www.autoitscript.com/forum/topic/118827-create-pdf-from-your-application/
; Example .......: No
; ===============================================================================================================================
Func _GetTextLength($sText, $sFontAlias, $iFontSize)
    Local $k = StringInStr($_sFONTNAME, "<" & $sFontAlias & ">")
    Local $C
    Local $l = StringLen($sText)
    Local $j = 0
    If $k > 0 Then
        $k += StringLen($sFontAlias) + 2
        For $i = 1 To $l
            $C = Asc(StringMid($sText, $i, 1))
            $k += _Iif(($C >= $FirstChar) And ($C <= $LastChar), $Widths[$C], $MissingWidth)
            If $C = 32 Then $j += 1
        Next
    EndIf
    Return __ToUser((($k * $iFontSize / 1000) + ($j * $_WordSpacing) + ($l * $_CharSpacing)) * ($_TextScaling / 100))
EndFunc   ;==>_GetTextLength

expandcollapse popup

; #FUNCTION# ====================================================================================================================
; Name ..........: _ClosePDFFile
; Description ...: Write the buffer to the pdf
; Syntax ........: _ClosePDFFile(  )
; Parameters ....:
; Return values .: None
; Author(s) .....: Mihai Iancu (taietel at yahoo dot com)
; Modified ......:
; Remarks .......:
; Related .......: _InitPDF()
; Link ..........: http://www.autoitscript.com/forum/topic/118827-create-pdf-from-your-application/
; Example .......: No
; ===============================================================================================================================
Func _ClosePDFFile()
    $_iResource = __InitObj(4)
    __ToBuffer("<<" & _
            _Iif($_sFONT <> "", "/Font<<" & $_sFONT & ">>", "") & _
            "/ProcSet [/PDF/Text" & _Iif($_Image <> "", "/ImageB/ImageC/ImageI", "") & "]" & _
            _Iif(($_Image <> "") Or ($_sObject <> ""), "/XObject <<" & $_Image & $_sObject & ">>", "") & ">>")
    __EndObj()
    $_iPages = __InitObj(3)
    __ToBuffer("<</Type /Pages /Count " & $_Pages & " /MediaBox [0 0 " & __ToStr($_PageWidth,1) & " " & __ToStr($_PageHeight,1) & "] " & _
            "/CropBox [" & __ToStr($__SetMargin) & " " & __ToStr($__SetMargin) & " " & __ToStr($_PageWidth - $__SetMargin,1) & " " & __ToStr($_PageHeight - $__SetMargin,1) & "] " & _
            _Iif($_Orientation = $PDF_ORIENTATION_LANDSCAPE, "/Rotate -90", "") & "/Kids [" & $_sPage & "] " & "/Resources " & $_iResource & " 0 R>>")
    __EndObj()
    __ToBuffer("xref")
    __ToBuffer("0 " & $_iMaxObject+1)
    __ToBuffer("0000000000 65535 f")
    For $i = 1 To $_iMaxObject
        __ToBuffer($aXREF[$i])
    Next
    __ToBuffer("trailer" & @CRLF & _
            "<< /Size " & $_iMaxObject + 1 & "/Info 1 0 R" & "/Root 2 0 R" & ">>")
    __ToBuffer("startxref" & @CRLF & StringLen("startxref" & @CRLF & $_Buffer & "%%EOF" & @CRLF) + 6)
    $_FileName = FileOpen($PDF_NAME,18)
    FileWrite($_FileName, $_Buffer & "%%EOF" & @CRLF)
    FileClose($_FileName)
    $_Pages = ""
    $_sPage = ""
    $_sFONT = ""
    $_Image = ""
    $_sObject = ""
    $_iResource = ""
    $_Buffer = ""
    If $_bOpen Then ShellExecute($PDF_NAME)
EndFunc   ;==>_ClosePDFFile

The Error is: "error: _Iif(): undefined function."

Please can anybody help me?
Thank all who takes the time to help me

With best regards

ElTiburon

[Qwerty212]

@Eltiburon: Add this to the end of your MPDF_UDF.au3

Func _Iif($vExpression, $vTrue, $vFalse)
    Return $vExpression ? $vTrue : $vFalse
EndFunc   ;==>_Iif



One question:

I want to use this two symbols in my PDFs: ↑  and ↓ but using an standard font, no the symbols one (because they are going to be part of a sentence).

In the PDF they are showed as "?".



I'm using the udf to fill some work documentation and in need to write inside a given space in a paper, so I chck the lenght of the text and I do reduce the font size until it fits:

Local $fontsize = 13
            Local $description = $Manolo[2]
            Local $textsize = _GetTextLength(String($description), "_Calibri", $fontsize)
            If $textsize > 9.5 Then
                Do
                    Local $textsize = _GetTextLength(String($description), "_Calibri", $tamanofuente)
                    $fontsize = $fontsize - 0.1
                Until $textsize < 9.5
            EndIf
            _DrawText(6.6 + $margenizq, 7.2 - $diff + $margensup, $description, "_Calibri", $fontsize, $PDF_ALIGN_LEFT, 0)
        EndIf

But as I need to use (sometimes) the up and down arrows, I guess that it would be pian in the ass get the position of the arrow inside an string. Change that arrow for a blank space. Calculate the position where it should be drawed in the paper with the _GetTextLenght function and then draw an arrow instead of writting it directly.

Other symbols like Ø and the µ are recognized fine and writted fine with every font correctly. Maybe is there a way of adding the arrows to the standard fonts?

Greets from Barcelona



[error471]

Hey,

this UDF is awesome, but I have problem, that I could not handle so far.

I want to output some data out of an array into a table on a A4 paper. The array size varies (3 to 10 columns and 2 to XX rows). The table has always a different position. I tried different values, but without success. The table seems to be set from the low-left corner, instead of the left-up corner, which needs calculations of the table size and some "centering"-code, which I tried. Maybe someone can explain.

Best Wishes

error471

Edited February 6, 2016 by error471

[error471]

Ok guys, I could help myself with that line:

_InsertTable(2,Round(_GetPageHeight()/_GetUnit(),1)-4.7-$tNumberOfRows*0.5,0,$tNumberOfRows*0.5,$tNumberofColums,$tNumberOfRows)

It calculates pageheight-tableheight-4.7. The last -4.7 is the distance tha I prefer to the top.

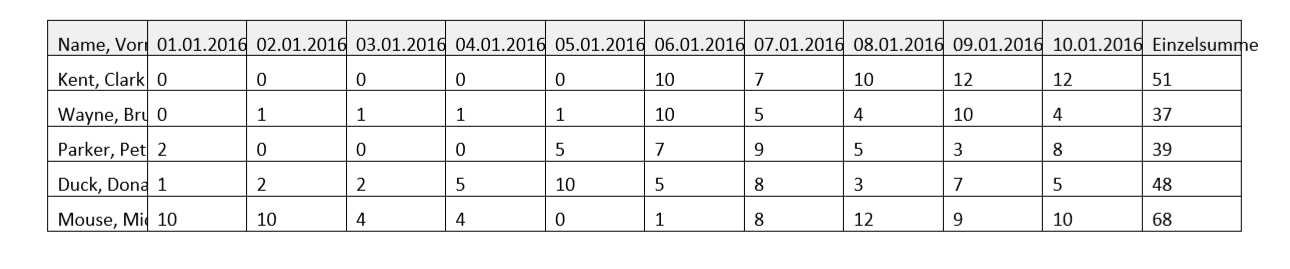

But I have another issue. The width of the table is automatically set, when it is $iW = 0. Unfortunately the automatic modus is not perfect. Longer content is consequently cut. Is there a way to set one column - for example the first - and the rest automtically?

Edited February 6, 2016 by error471

[KeshHERE]

Just in case if anyone is having this problem



Line 824 ("MPDF_UDF.au3"):

$k += _Iif(($C >= $FirstChar) And ($C <= $LastChar), $Widths[$C], $MissingWidth)
$k += ^ERROR

Error: Unknown function name.



then add this piece of code at the end of MPDF_UDF.au3 file

Func _Iif($fTest, $vTrueVal, $vFalseVal)

    If $fTest Then
        Return $vTrueVal
    Else
        Return $vFalseVal
    EndIf
EndFunc





[dmob]

2 hours ago, KeshHERE said:



Func _Iif($fTest, $vTrueVal, $vFalseVal)

    If $fTest Then
        Return $vTrueVal
    Else
        Return $vFalseVal
    EndIf
EndFunc





Or,

Func _Iif($fTest, $vTrueVal, $vFalseVal)

    Return $fTest ? $vTrueVal : $vFalseVal

EndFunc



[Zedna]

1) I tried fix by vicmandev for accented characters but unfortunatelly it still doesn't work and some Czech accented characters are still cripled (the same as before fix). Note: Czech characters inside PDF file viewed by file viewer are OK so it must be problem with declaration of font inside PDF.

2) All generated PDF files are somehow internally incorrect because in Adobe Acrobat Reader (version XI) it always before closing PDF file (after successful opening) asks "Do you want to save changes before closing file?" So I think that maybe some PDF tag <> generated by this UDF is not correctly closed ...

EDIT: Generated PDF file introducing both problems is attached

Example_Table2.pdf

Edited November 10, 2016 by Zedna
attached PDF file

[MattHiggs]

"C:\Users\whiggs\Desktop\MPDFv103\MPDF_UDF.au3"(251,54) : error: _Iif(): undefined function.
            _Iif($_sFONT <> "", "/Font<<" & $_sFONT & ">>", "")
    When I try to run one of the examples

[mLipok]

Please check last few post in this thread.

[ggraziano2005]

Is there any way to write the page number on each page in the format "page x of y"?

[DaLiMan]

Hi taietel, thanx for this amazing UDF!

I'm currently playing with it to see if I can use it for an idea I have.

But I need help to figure out how to align soms text to the right of the page.
I need an adres to be places at the right side of the page.

Can you help me with a little example on how to do this?



I tried this, but it does not work the way I expected.
This shows the text inline like [Street 51234DL Someplace 06-12345678]



Dim $AdresTxt = "Street 5" & @CRLF &  "1234DL Someplace" & @CRLF & "06-12345678"
    _DrawText(4, 16, $AdresTxt, "_Garamond", 8, $PDF_ALIGN_RIGHT)



[dmob]

On 5/29/2017 at 7:41 PM, DaLiMan said:

I tried this, but it does not work the way I expected.
This shows the text inline like [Street 51234DL Someplace 06-12345678]



Dim $AdresTxt = "Street 5" & @CRLF &  "1234DL Someplace" & @CRLF & "06-12345678"
    _DrawText(4, 16, $AdresTxt, "_Garamond", 8, $PDF_ALIGN_RIGHT)



Use the _Paragraph function for multi-line text

[Vergil]

Hi,

this UDF is a really good Job. awesome, how easy it is to create a pdf from your script, using this udf.

But i have a Little Problem. I´d like to use a Font without serifs, so i decided to use Arial. But by using the TT, I get a space after each german umlaut (ä, ü, ö). The Arial Standard works, when I open the created File, it always tells me, the /BBox value at Font Helvetica Bold is wrong.



Also there seem to be a bug at creating a Header like in the mixed Example. I can´t create a Header only for the first page. By using $PDF_OBJECT_FIRSTPAGE, it is created for all pages, exept of the first one. Same Problem with  using $PDF_OBJECT_EVENPAGES and $PDF_OBJECT_ODDPAGES.



Example:

expandcollapse popup

#include <MPDF_UDF.au3>

Const $iRand_links=20
Const $iRand_rechts=20
Const $iRand_oben=20
Const $iSeitenbreite=210-$iRand_rechts
Const $iSeitenhohe=297-$iRand_oben

_SetTitle("Test")
_SetSubject("Test")
_SetKeywords("Test")
_OpenAfter(True)
_SetUnit($PDF_UNIT_MM)
_SetPaperSize("A4")
_SetZoomMode($PDF_ZOOM_CUSTOM,90)
_SetOrientation($PDF_ORIENTATION_PORTRAIT)
_SetLayoutMode($PDF_LAYOUT_CONTINOUS)

_InitPDF(@ScriptDir & "\Test.pdf")

;fonts:
_LoadFontStandard("_Arial", $PDF_FONT_STD_ARIAL, $PDF_FONT_NORMAL)
_LoadFontStandard("_ArialBold", $PDF_FONT_STD_ARIAL, $PDF_FONT_BOLD)
_LoadFontStandard("_ArialIt", $PDF_FONT_STD_ARIAL, $PDF_FONT_ITALIC)

;=== create objects that are used in multiple pages ===
;create a header on all pages, except the first:
_StartObject("Header", $PDF_OBJECT_FIRSTPAGE)
    _DrawText($iRand_links, $iSeitenhohe, "This Header should only be at the 1st page!", "_Arial", 12, $PDF_ALIGN_LEFT)
_EndObject()

_BeginPage()
_DrawText($iRand_links, $iSeitenhohe-50, "Arial standard", "_Arial", 12, $PDF_ALIGN_LEFT)
_DrawText($iRand_links, $iSeitenhohe-55, "Arial standard Bold", "_ArialBold", 12, $PDF_ALIGN_LEFT)
_DrawText($iRand_links, $iSeitenhohe-60, "Arial standard Italic", "_ArialIt", 12, $PDF_ALIGN_LEFT)
_EndPage()

_BeginPage()
_EndPage()
_BeginPage()
_EndPage()
_ClosePDFFile()

Exit



[DaLiMan]

On 2017-5-31 at 5:28 PM, dmob said:

Use the _Paragraph function for multi-line text

Hi dmob,

Tried the paragraph function yesterday as you suggested, but unfortunately it is not helping me.
It's probably me, but it seems to real problem is with $PDF_ALIGN_RIGHT.
Somehow it does not align properly to the right.
Closing the PDF with _ClosePDFFile() and then make it up again (in the same run) makes the text move to the left?!

Although I decided to just have all text made up with $PDF_ALIGN_LEFT and have a lot of work aligning it at the right side     it would be helpfull for the future if $PDF_ALIGN_RIGHT would be working as expected.



Anyway, again, three thumbs up for this UDF!



[dmob]

It's been a while since I used this UDF, and I have only used left and centre alignment with

the paragraph function. I do remember though that the centre align initially challenged me,

but I think I played around with the X position and offset, and got it right.... I suspect that

may be your problem.

The author has explained it in one the posts above...



[Mannyfresh31]

Hi there I tried to run one of your examples but I get an undefined function error ):

Never mind the answer is on the replies above (:

Edited February 22, 2018 by Mannyfresh31

[Zedna]

Download previous AutoIt (ZIP) and exctract/copy this function _Iif() from Include/Misc.au3 to your script.

Edited February 22, 2018 by Zedna

[Mannyfresh31]

This udf is great and thanks for bringing out but can somebody help me?

I'm trying to center images with different sizes on top of the page I haven't been able to do it ):



Update:

Never mind again I solved my own problem my self thanks anyway (:

expandcollapse popup

$ReceiptFileO = FileReadToArray(@ScriptDir & "\Recibos\" & $RecipeNum & ".log")

$IMG = IniRead($Modefile, "IMG", "IMG", "")
    $IMGw = IniRead($Modefile, "IMG", "Width", "")
    $IMGw *= 0.26
    $IMGh = IniRead($Modefile, "IMG", "Height", "")
    $IMGh *= 0.26


;creating PDF
    ;set the properties for the pdf
    _SetTitle("Copia de Recibo No." & $RecipeNum)
    _SetSubject("Copia de Recibo No." & $RecipeNum)
    _SetKeywords("PDF, Copia, Loteia," & $RecipeNum)
    _OpenAfter(False) ;open after generation
    _SetUnit($PDF_UNIT_MM)
    _SetPaperSize("CUSTOM", _PrintGetPaperWidth($hp) /10, _PrintGetPaperHeight($hp) /10)
    _SetZoomMode($PDF_ZOOM_CUSTOM, 90)
    _SetOrientation($PDF_ORIENTATION_PORTRAIT)
    _SetLayoutMode($PDF_LAYOUT_DEFAULT)
    _SetPageWidth($pgwd / 10)
    _SetPageHeight($pght /10)

    ;initialize the pdf
    _InitPDF(@ScriptDir & "\Recibos\" & $RecipeNum & ".pdf")

    ;fonts:
    _LoadFontStandard("_Times", $PDF_FONT_STD_TIMES)
    ;stretch it a bit, down to 90%
    _SetTextHorizontalScaling(90)

    ;=== load resources used in pdf ===
    If Not $IMG = "" Then
    MsgBox(0,"","Has image " & Int(_GetPageWidth() /_GetUnit() - $IMGw ))
        ;images:
        _LoadResImage("IMG", $IMG)
        _BeginPage()
        ;scale image to paper size!
        _InsertImage("IMG",Int( _GetPageWidth() /_GetUnit() - $IMGw  ) ,Int( _GetPageHeight()/_GetUnit() - ($IMGh )) , $IMGw , $IMGh )

        $Diezes = _GetPageHeight()/_GetUnit() - ($IMGh ) -10
        For $aText In $ReceiptFileO
            _DrawText(10, $Diezes, $aText, "_Times", 12)
            $Diezes -= 2
        Next
        _EndPage()

    Else

        $Diezes = (_GetPageHeight()/_GetUnit()) - 2
        For $aText In $ReceiptFileO
            _DrawText(10, $Diezes, $aText, "_Times", 12)
            $Diezes -= 2
        Next
        _EndPage()

    EndIf



Edited February 24, 2018 by Mannyfresh31
Problem solved
