Embedded program not displaying right

[Herb191]

Embedded program not displaying after maximize/maximize or anything is moved over it.

Not sure what I need to change to keep it from disappearing.

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <WinApi.au3>
#Include <Constants.au3>

Global $hMian, $hChild[3], $tChild = 3, $SC_MOVE = 0xF010, $fChild_Max = False

GUIRegisterMsg($WM_SYSCOMMAND, "On_WM_SYSCOMMAND")

Run ("C:\Program Files\WellSight Systems\StarLog 6\MudLog_HL.exe")
WinWait ( "MUD.LOG 6.2a - [not saved]" )
$hHandle = WinGetHandle("MUD.LOG 6.2a - [not saved]")
$size = WinGetClientSize($hHandle)
$hMain = GUICreate("Parent Window", $size[1] + 425, $size[0], 0, 0)

_WinAPI_SetWindowLong($hHandle, $GWL_STYLE, BitOr($WS_POPUP, $WS_VISIBLE))
_WinAPI_SetParent($hHandle, $hMain)
GUISetState(@SW_SHOW)
CreateChild()
CreateChild2()

While 1
    $aMsg = GUIGetMsg(1)
    Switch $aMsg[1]
        Case $hMain
            Switch $aMsg[0]
                Case $GUI_EVENT_CLOSE
                    WinClose($hHandle)
                    Exit
                Case $GUI_EVENT_MINIMIZE
                     $hHandle = True
            EndSwitch
        Case $hChild[0]
            Switch $aMsg[0]
                Case $GUI_EVENT_CLOSE
                    GUIDelete($hChild[0])
                Case $GUI_EVENT_MAXIMIZE
                    $fChild_Max = True
                    $hHandle = True
                Case $GUI_EVENT_RESTORE
                    $fChild_Max = False
            EndSwitch
    EndSwitch
WEnd

Func CreateChild()
    $Child = GUICreate("Child " & $tChild, 250, 250, $size[0]-40, 15, $WS_POPUP)
    GUISetBkColor(0xE0FFFF)
    GUISetState()
    _WinAPI_SetParent($Child, $hMain)
    Add($hChild, $Child)
EndFunc   ;==>CreateChild

Func CreateChild2()
    $Child2 = GUICreate("Child 2 " & $tChild, 250, 250, $size[0]-40, 300, $WS_POPUP)
    GUISetBkColor(0xE0FFFF)
    GUISetState()
    _WinAPI_SetParent($Child2, $hMain)
    Add($hChild, $Child2)
EndFunc   ;==>CreateChild

Func Add(ByRef $Array, $V)
    If $Array[0] = "" Then
        $Array[0] = $V
    Else
        $p = UBound($Array)
        ReDim $Array[$p + 1]
        $Array[$p] = $V
    EndIf
    $tChild += 1
EndFunc   ;==>Add

Func On_WM_SYSCOMMAND($hWnd, $Msg, $wParam, $lParam)

    If $hWnd = $hChild[0] Then
        If $fChild_Max Then
            If BitAND($wParam, 0xFFF0) = $SC_MOVE Then Return False
        EndIf
    EndIf

    Return $GUI_RUNDEFMSG
EndFunc

Edited May 19, 2010 by Herb191

[Herb191]

Bump…

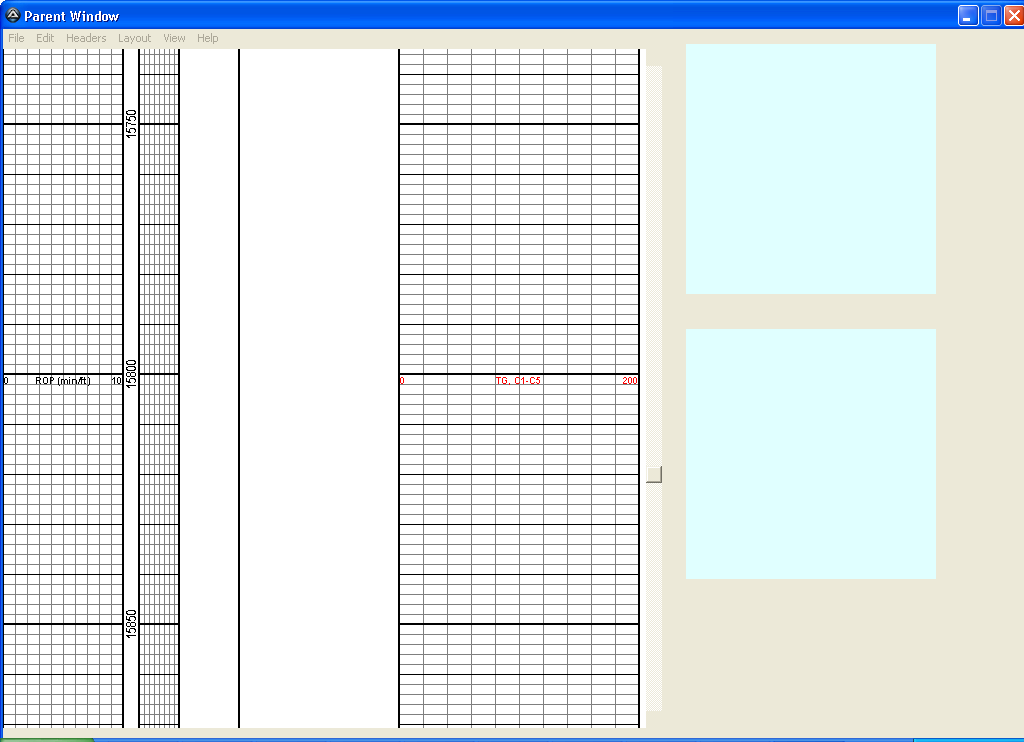

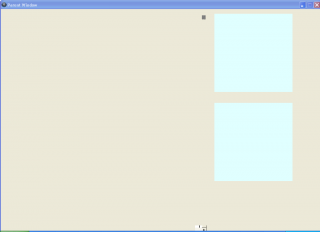

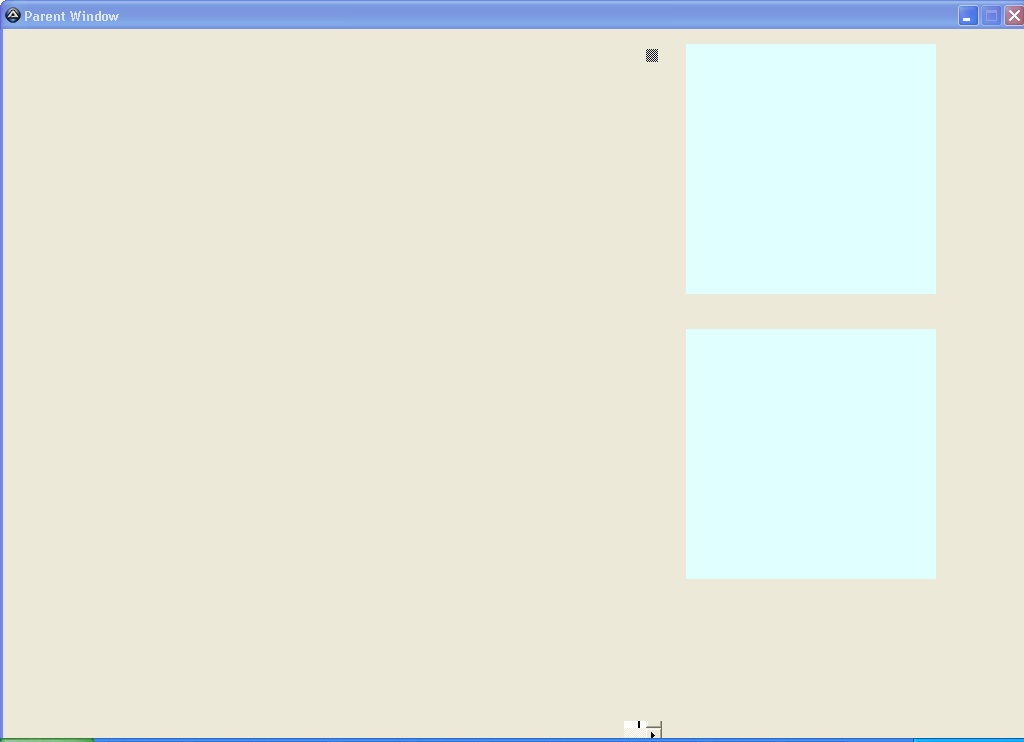

Here is a screenshot of what it looks like and what I would like it to look like.

I would also like to be able to see the taskbar of the program. I would really appreciate any help on this one.

Thanks

[PsaltyDS]

What happens if you hit it with this?

_WinAPI_RedrawWindow($hMain, 0, 0, $RDW_UPDATENOW + $RDW_ALLCHILDREN)

[Herb191]

What happens if you hit it with this?

_WinAPI_RedrawWindow($hMain, 0, 0, $RDW_UPDATENOW + $RDW_ALLCHILDREN)

No luck I also tried just putting _WinAPI_RedrawWindow ($Mudlog_Handle, 0, 0) in the While loop but it just flickers.

[PsaltyDS]

Hmm... just noticed you zeroed out the Style/ExStyle when creating the parent GUI. Try this instead:

$hMain = GUICreate("Parent Window", $size[1] + 425, $size[0], BitOr($Gui_SS_Default_GUI, $WS_CLIPCHILDREN))

This is getting over my head, but I would bet that you have issues with your window styles.

[Herb191]

Hmm... just noticed you zeroed out the Style/ExStyle when creating the parent GUI. Try this instead:

$hMain = GUICreate("Parent Window", $size[1] + 425, $size[0], BitOr($Gui_SS_Default_GUI, $WS_CLIPCHILDREN))

This is getting over my head, but I would bet that you have issues with your window styles.

Nice! That did the trick. I just had to change it to:

$hMain = GUICreate("Parent Window", $size[1], $size[0], 0, 0, BitOr($Gui_SS_Default_GUI, $WS_CLIPCHILDREN))

Now any suggestions on viewing the taskbar of the embedded program?

Edited May 20, 2010 by Herb191

[PsaltyDS]

Now any suggestions on viewing the taskbar of the embedded program?

Not a clue. Can you reproduce the problem with apps we might have already? Without your "MudLog_HD" app, it would be hard to figure out.

[Herb191]

Not a clue. Can you reproduce the problem with apps we might have already? Without your "MudLog_HD" app, it would be hard to figure out.

You can download the free viewer, which is essentially the same program just with out all the goodies. I tried it and it did the same thing. I think it must have something to do with what version of windows you are running. I ran the following on a computer with Vista and it worked great. Then I ran it on a computer with XP and I couldn’t see the taskbar again.

You can get the viewer here: Viewer Download

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#Include <Constants.au3>
#include <GuiMenu.au3>

$Mudlog_Handle = Open_Log()
$Title_Bar_Height = _WinAPI_GetSystemMetrics($SM_CYCAPTION)
$size = WinGetClientSize($Mudlog_Handle)
$hMain = GUICreate("Parent Window", @DesktopWidth , $size[1]+$Title_Bar_Height, 0, 0, BitOr($Gui_SS_Default_GUI, $WS_CLIPCHILDREN))

_WinAPI_SetWindowLong($Mudlog_Handle, $GWL_STYLE, $WS_VISIBLE)
_WinAPI_SetParent($Mudlog_Handle, $hMain)

GUISetState(@SW_SHOW)
While 1
    $aMsg = GUIGetMsg()
    If $aMsg = $GUI_EVENT_CLOSE Then
        WinClose($Mudlog_Handle)
        GUIDelete()
        Exit
    EndIf
    Sleep(10)
WEnd

Func Open_Log()
    Local $WindowHand = ""

    $var = WinList("WellSight Log Viewer")
    For $i = 0 To $var[0][1]
        If $var[$i][0] <> "" Then
            MsgBox(4096, "", "Please close all Wellsite Programs before continuing.")
            Exit
        EndIf
    Next

    $Log_Name = FileOpenDialog("Select Log to Open", @DesktopDir & "\", "Mudlogs (*.Ml6)")
    If @error Then
        MsgBox(4096, "", "No File chosen")
        Exit
    EndIf

    ShellExecute($Log_Name)
    WinWait("WellSight Log Viewer")
    Sleep(5000)
    While 1
        $var = WinList("WellSight Log Viewer")

        For $i = 0 To $var[3][1]
            If $var[$i][1] <> "" Then
                $WindowHand = $var[1][1]
                ExitLoop
            EndIf
        Next
        If $WindowHand <> "" Then ExitLoop
    WEnd
Return $WindowHand
EndFunc   ;==>Open_Log
