Active Directory Example Scripts

[water]

Version 1.2.0 has been released.

Please test before using in production!

For download please see my signature.

[Readysound]

Hello,

I really like the GetOUTreeView script, but I've found an issue with the output . See attached.

All of the sub OU's that are under "MCR Postini Quarantine" should actually be under the "Mcr" OU above it (which shows as having no sub-ou's). I'm guessing this is because they both start with "mcr ... " and it's tripping the script up? The correct DN name is showed however for the OU's (eg, "Corp" would show as being in "Mcr" when clicking "Select OU")

Edited January 19, 2012 by Readysound

[water]

This problem is caused by the spaces in the OU name. The table to create the TreeView isn't sorted propery.

Please check for a solution (ugly but it works).

[Readysound]

Thanks for the quick reply!

Still getting to grips with AutoIt. How do I make it use the Active Directory OU's rather than the locally defined ones?

[water]

Remove this lines:

Local $aAD_OUs[9][2] = [[8,2]]
$aAD_OUs[1][0] = "Root" & @Tab & "Partners"
$aAD_OUs[1][1] = "Root" & @Tab & "Partners"
$aAD_OUs[2][0] = "Root" & @Tab & "Partners.Disabled"
$aAD_OUs[2][1] = "Root" & @Tab & "Partners.Disabled"
$aAD_OUs[3][0] = "Root" & @Tab & "Partners.Disabled Never Used"
$aAD_OUs[3][1] = "Root" & @Tab & "Partners.Disabled Never Used"
$aAD_OUs[4][0] = "Root" & @Tab & "Partners.Inactive - Migrated from Media"
$aAD_OUs[4][1] = "Root" & @Tab & "Partners.Inactive - Migrated from Media"
$aAD_OUs[5][0] = "Root" & @Tab & "Partners" & @Tab & "Example 1"
$aAD_OUs[5][1] = "Root" & @Tab & "Partners" & @Tab & "Example 1"
$aAD_OUs[6][0] = "Root" & @Tab & "Partners.Disabled" & @Tab & "Example 2"
$aAD_OUs[6][1] = "Root" & @Tab & "Partners.Disabled" & @Tab & "Example 2"
$aAD_OUs[7][0] = "Root" & @Tab & "Partners.Disabled Never Used" & @Tab & "Example 3"
$aAD_OUs[7][1] = "Root" & @Tab & "Partners.Disabled Never Used" & @Tab & "Example 3"
$aAD_OUs[8][0] = "Root" & @Tab & "Partners.Inactive - Migrated from Media" & @Tab & "Example 4"
$aAD_OUs[8][1] = "Root" & @Tab & "Partners.Inactive - Migrated from Media" & @Tab & "Example 4"

and change this

;   Local $aAD_OUs = _AD_GetAllOUs($sAD_OU, $sSeparator)

to

Local $aAD_OUs = _AD_GetAllOUs($sAD_OU, $sSeparator)

[Readysound]

Made those changes and get an error when building :

C:\Program Files\AutoIt3\Include\AD.au3 (1347) : ==> Variable must be of type "Object".:

$oAD_Command.CommandText = "<LDAP://" & $sAD_HostServer & "/" & $sAD_Root & ">;" & "(objectCategory=organizationalUnit)" & ";distinguishedName;subtree"

$oAD_Command^ ERROR

[water]

Remove the ";" from lines "; _AD_Open()" and "; If $bAD_IsADOpen = False Then _AD_Close()"

[Readysound]

Water, you're an AutoIt Guru! Thanks very much!

[water]

[water]

A new example script is available: ADAT - Active Directory Administration Tool

General

• ADAT is a tool to simplify common AD administration tasks
• Every administration task has its own tab (3 sample tabs are provided)
• It is easy to add new functions (tabs) to the tool or remove them - check file "ADAT config.txt" in the ZIP archive for a description
• Some of the often used functions are available: list users, computers, OUs
• File ADAT.ini can be customized to hold the AD logon information if necessary. By default the user running the script connects to the AD

More details can be found on the first post.

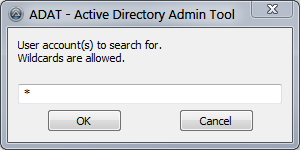

Screenshots

Edited February 27, 2012 by water

[water]

Experimental Version 1.2.1.0 has been released.

For testing purpose only!

Needs 3.3.9.2 beta for the new way the UDF handles COM errors!

For download please see my signature.

[water]

New version (1.2.0) of the _AD_Example_GetOUTreeView example script added to post #1.

3 parameters have been added to display the number of objects in an OU to the right of the OUs name:

$sAD_Category:

If this parameter is set to an ObjectClass (computer, user, group ...) or a complete LDAP query string the number of found objects will be display to the right of the OUs name

$sAD_Text:

Text to display the count. Must contain a % which will be replaced by the actual number (default = " (%)")

$iAD_SearchScope:

Search scope for function _AD_GetObjectsInOU. Can be 1 = only counts in the OU, 2 = counts in the OU and all sub-OUs (default = 1)

Edited May 18, 2012 by water

[water]

Experimental Version 1.2.2.0 has been released.

For testing purpose only!

Needs 3.3.9.2 beta for the new way the UDF handles COM errors!

For download please see my signature.

[water]

Version 1.3.0.0 of the UDF has been released.

This version combines the last production version 1.2.0 and the experimental version 1.2.2.0!

Please test before using in production!

For download please see my signature.

[ModemJunki]

Hi,

Using Active Directory Report, I get the error "More than 254 User selected!". But I am using Excel 2007 (32 bit Office installed in Windows 7 x64).

If I change the "If $oExcel.Application.Version <= 12.0" to 11.9 then it continues but hangs processing records.

Where should I be getting ExcelCOM_UDF.au3 from? Maybe that is the problem.

[water]

What do you get if you add

msgBox(0, "", $oExcel.Application.Version)

before this line?

[ModemJunki]

What do you get if you add

msgBox(0, "", $oExcel.Application.Version)

before this line?

It pops up with 12.0 in the messagebox.

[water]

It's a bug in my example script. The line should read:

If $oExcel.Application.Version < 12.0

[ModemJunki]

It's a bug in my example script. The line should read:

If $oExcel.Application.Version < 12.0

OK! Now it gets stuck processing AD records (380 of 387).

I am querying groupnames for an OU. The OU is part of a very large AD domain. The groups have members from trusted domains whose DCs are in other places on the planet and available only over slow cloud connections. These trusted domains are also very large.

If I _ArrayDisplay($aUsers) at the end of _Transpose() I see all the data in the array. This comes after some few minutes. It includes the user infos in columns 0 and 1, and the grouplist in column 3.

Excel can be seen to start in the background and is consuming only very small CPU (0.01-0.04 in Process Explorer). That is why I asked about the correct ExcelCOM_UDF.au3 to use - I think the problem could be there. When I kill the task, AutoIT opens the ExcelCOM_UDF with warnings:

WARNING: $sFound: declared, but not used in func.

WARNING: $iCurrCol possibly not declared/created yet

Not sure that the warnings are relevant.

Unfortunately I will leave to go on holiday for a week in a few moments, and I'm sure you must sleep sometime. :-) Perhaps we can continue our troubleshooting when I return?

[water]

Sure, we can troubleshoot when you return.

Have a nice vacation!
