Returncode 4 by _AD_Open means:

"Creation of the RootDSE object failed. @extended returns the error code received by the COM error handler.

Generated when connection to the domain isn't successful. @extended returns -2147023541 (0x8007054B)"

Could you please test on another machine? Maybe an installation problem?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

I have tried this on multiple machines and receive the same error. I have also used 32bit Windows 7 and 64bit Windows 7.

I saw that error message in the description, which is why I then though about trying to Open the AD connection with my admin account, because it works with my account. That didn't make a difference though.

Link to comment
Share on other sites

Local firewall! Let me check that... I just realised that it may be the outbound firewall on Windows 7 that has suddenly stopped this working for these users (they had XP previously, so only an inbound firewall).

As an admin I am exempt from those policies with the firewall. I see port 636 is used in the documentation. I'll check that out now.

Link to comment
Share on other sites

So your account is the only one who doesn't return an error?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

Would have suprised me if that was the problem. Because how would the OS check the users file permissions setc.

Is there anything else unusual in the firewall logs? Can you deactivate the firewall and test?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

So I have tried looking at this from a different angle and I am trying to use some different functions to achieve the same result.

I am not getting any error messages now with the _AD_Open command, but I do get a variable array error. This is the new code I am using. It works for my admin account, but again for a standard user it does not.

Global $grpMembers, $ADGroupMember
_AD_Open()
MsgBox(0, "_AD_Open", @error)
MsgBox(0, "_AD_Open", @extended)
;Check to make sure the user running the script has permissions to reset passwords.
$grpMembers = _AD_GetGroupMembers("PasswordReset")
MsgBox(0, "Get Group Members", @error)
If _AD_IsMemberOf("PasswordReset", @UserName, 1) Then
MsgBox(0, "Student Password Reset Utility", @UserName & ", you have the appropriate security group access to use this utility.", 4)
Else
MsgBox(0, "Number of Groups", $grpMembers[0])
For $i = 1 To $grpMembers[0]
  If _AD_IsMemberOf($grpMembers[$i], @UserName, 1) Then
   $ADGroupMember = 1
  EndIf
Next
If $ADGroupMember = 1 Then
  MsgBox(0, "Student Password Reset Utility", @UserName & ", you have the appropriate security group access to use this utility.", 4)
Else
  MsgBox(0, "Student Password Reset Utility", @UserName & ", you do not have the appropriate security group access to use this utility.", 4)
  Exit
EndIf
EndIf

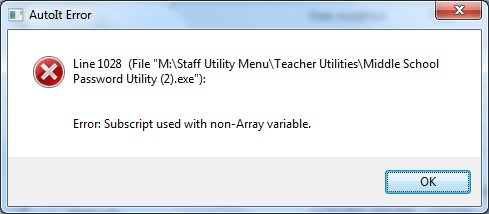

This is the error I receive.

post-54196-0-37931000-1338905463_thumb.j

Link to comment
Share on other sites

What linenumber do you get if you run the script from SciTE? The linenumber in your screenshot doesn't show us where the error occurres because it referres to the source with all comments stripped off.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

Running from Scite ( I copied scite files to a flash drive and ran it from there) worked on the users laptop. When I compile the same script on my PC it does not work. I then compile it on the users laptop and it worked fine!

Time to rebuild my machine!

Sorry for any time wasting.

Thanks for your quick responses.

Link to comment
Share on other sites

Glad to be of service ;)

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

I am experienceing a very intermittent issue with autoit crashing sometimes.

Event log 1000 "application error" is logged.

faulting application autoit3.exe version 3.3.6.1

failting module autoit3.exe version 3.3.6.1

fault address 0x00010f2a

I am not sure if it has something to do with the AD functions, or if this is some kind of other problem since the faulting module doesn't give much info away. Doesn't list a line number or anything.

Through my own debugging I've noticed that the fault seems to occur when trying to add a computer object to AD. Here is the code where the problem might be occuring.

; Check if workstation already exists in AD
    If _AD_ObjectExists(@ComputerName & "$", "sAMAccountName") Then ; if workstation exists
        _EventLog("Duplicate name found in Active Directory. Deleting.")
        Local $iSet = _AD_DeleteObject(@ComputerName & "$", "computer") ; delete workstation
        If $iSet = 0 Then
            $bError = True
            $sJoinErrors &= "Unable to delete workstation from AD" & @CR
            _EventLog("ERROR : Unable to delete workstation from AD.", "Warn")
        EndIf
        Sleep(5000)
    EndIf

    ; Create workstation
    If Not _AD_ObjectExists(@ComputerName & "$", "sAMAccountName") Then ; if workstation does not exist
        _EventLog(@ComputerName & " not found in Active Directory. Creating.")
        $n = 0
        Do
            _AD_CreateComputer($sOU, @ComputerName, "Information Technology") ; create computer as an IT Technician
            $n += 1
            Sleep(5000)
        Until _AD_ObjectExists(@ComputerName & "$", "sAMAccountName") Or $n >= 5
        If Not _AD_ObjectExists(@ComputerName & "$", "sAMAccountName") Or $n >= 5 Then
            $bError = True
            $sJoinErrors &= "Failed to create workstation" & @CR
            _EventLog("ERROR : Failed to create workstation.", "Warn")
        EndIf
    EndIf

I see EventLog "computername not found in AD, creating" logged to the event log, then about 8-10 seconds later I see the autoit crash event.

This problem is very random and sometimes happens on some machines, then try re-running and it runs fine.

Any help to troubleshoot?

Link to comment
Share on other sites

Just a few questions:

  • Why do you delete an already existing computer account and then recreate it?
  • Why do you create the computer in a loop?
  • What are the Sleep statemetns for?
  • Could you update AutoIt to the most current version 3.3.8.1?
  • What version of the AD UDF do you use?
Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

I stripped the code down a bit and added @error and @extended to the error messages so you can see what happened:

; Check if workstation already exists in AD
If _AD_ObjectExists(@ComputerName & "$", "sAMAccountName") Then ; if workstation exists
    _EventLog("Duplicate name found in Active Directory. Deleting.")
    _AD_DeleteObject(@ComputerName & "$", "computer") ; delete workstation
    If @error Then
        $bError = True
        $sJoinErrors &= "Unable to delete workstation from AD. @error = " & @error & ", @extended = " & @extended & @CR
        _EventLog("ERROR : Unable to delete workstation from AD. @error = " & @error & ", @extended = " & @extended, "Warn")
    EndIf
    Sleep(5000)
EndIf

; Create workstation
If Not _AD_ObjectExists(@ComputerName & "$", "sAMAccountName") Then ; if workstation does not exist
    _EventLog(@ComputerName & " not found in Active Directory. Creating.")
    _AD_CreateComputer($sOU, @ComputerName, "Information Technology") ; create computer as an IT Technician
    If @error Then
        $bError = True
        $sJoinErrors &= "Failed to create workstation. @error = " & @error & ", @extended = " & @extended & @CR
        _EventLog("ERROR : Failed to create workstation. @error = " & @error & ", @extended = " & @extended, "Warn")
    EndIf
EndIf

Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

Just a few questions:

  • Why do you delete an already existing computer account and then recreate it?
  • Why do you create the computer in a loop?
  • What are the Sleep statemetns for?
  • Could you update AutoIt to the most current version 3.3.8.1?
  • What version of the AD UDF do you use?
I delete the computer object first because this is for a re-imaging script. After sysprep a new SID is generated. You cannot add a new machine with a new SID to an existing computer object. You must delete it first then re-create it, or pre-stage it in AD manually.

I create the computer in a loop because I'm paranoid it won't stick the first time ;)

The sleep statements were an attempt to fix the issue since I though the delete object and create object might be happening too quickly for AD replication, etc and wanted to make sure there was ample time for the delete process to finish before trying to create a new object with the same name.

I could update AutoIt to the newest version, but I don't think that's the actual problem.

I am running AD UDF version 0.43

Link to comment
Share on other sites

The version of the UDF you use is quite old. I would suggest to upgrade to version 1.2.0 (not 1.2.1.0, that's a beta version).

Add @error and @extended to your error messages as I suggested in post and then wait till the problem occures again.

Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

I delete the computer object first because this is for a re-imaging script. After sysprep a new SID is generated. You cannot add a new machine with a new SID to an existing computer object. You must delete it first then re-create it, or pre-stage it in AD manually.

Actually, yes you can I do it all of the time.

If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Link to comment
Share on other sites

I'm also having another problem with the _AD_SetPassword

My code is

$iSet = _AD_SetPassword($sUsername, Random(000001, 999998, 1)) ; set random password
    If @error Then _Message("ERROR - Error setting random password - " & @error, True)

The error I get for @error is -2147352567

The error is random and does not happen every time I try and reset a password. But I would say it happens about 1 out of every 3 times my scripts tries to reset their password. The @error code is the same every time.

EDIT: this is also after I've already upgraded to the newest AD script version and newest Autoit and Scite versions.

Edited by kor
Link to comment
Share on other sites

Unfortunately this is 0x80020009 (DISP_E_EXCEPTION) Exception occurred. A general error.

Could you please set variable "$iAD_Debug = 2" (write the COM error to a MsgBox) or "$iAD_Debug = 3" to write detailed error messages to file @ScriptDir & "AD_Debug.txt"?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2024-07-28 - Version 1.6.3.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to comment
Share on other sites

Guest
This topic is now closed to further replies.
 Share

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
