Extended Message Box - New Version: 16 Feb 24

[Melba23]

Monooboe,

As you create the EMB you can just copy the values to the ini at that point:

; Create GUI with $WS_POPUPWINDOW, $WS_CAPTION style and required extended style
Local $hMsgGUI = GUICreate($sTitle, $iDialog_Width, $iMsg_Height, $iHpos, $iVPos, BitOR(0x80880000, 0x00C00000), $iExtStyle, $iParent_Win)
If @error Then
    Return SetError(7, 0, -1)
Else
    IniWrite($Config, 'LPEXMSG', 'XPOS', $iHpos)
    IniWrite($Config, 'LPEXMSG', 'YPOS', $iVPos)
EndIf

M23

[Rex]

Hi Melba32

Thx for this cools UDF. though I have one problem

Using this

_ExtMsgBoxSet(Default, Default, 0x008000, 0xFF8000, 12, "MS Sans Serif")

The colors is not used.

Wouldn't it normally just replace the Default keyword with the default parameter values?

btw. I'm using the latest Autoit beta, don't know if that could be the problem

Cheers
/Rex

Edited April 1, 2018 by Rex
Forgot to add what the problem was :$

[Melba23]

Rex,

From the _ExtMsgBoxSet header:

;Setting the $iStyle parameter to 'Default' resets ALL parameters to default values <<<<<<<<<<<<<<<<<<<<<<<

So use:

_ExtMsgBoxSet(0, Default, 0x008000, 0xFF8000, 12, "MS Sans Serif")

And you will get the colours.

M23

[Rex]

 I really need to read, and then understand, what's written.

Thx for clearing that one up

Cheers
/Rex

[Monooboe]

Hi Melba23,

thanks for your help.

When I  add this line in your script and run my script, it showed warning message "$Config: possible used before declaration" .

I have already declared in my main script.

; Create GUI with $WS_POPUPWINDOW, $WS_CAPTION style and required extended style
Local $hMsgGUI = GUICreate($sTitle, $iDialog_Width, $iMsg_Height, $iHpos, $iVPos, BitOR(0x80880000, 0x00C00000), $iExtStyle, $iParent_Win)
If @error Then
    Return SetError(7, 0, -1)
Else
    IniWrite($Config, 'LPEXMSG', 'XPOS', $iHpos)
    IniWrite($Config, 'LPEXMSG', 'YPOS', $iVPos)
EndIf

Sorry for confusion about saving Last Position.

EMB was started with Center of screen ( initial settings in INI) .  It will be moved to top or bottom of screen that depends on user's preference.

with my previous modification in EMB, last position of EMB was saved in INI file after move.  Next time when I use my script, EMB showed at the bottom or top of screen instead of Center of screen.

GUIRegisterMsg(0x03, "LASTPOST")

Can you tell me how to save last position for EMB after moved instead of using "GUIRegisterMsg" ?

here is part of my script.

expandcollapse popup

#include "ExtMsgBox.au3"

#include <File.au3>



Global $Config = @ScriptDir & "\config.ini"

$chkF=FileExists($Config)

if $chkF = 0 then

                IniWrite($Config, 'LPEXMSG', 'XPOS', Int(@DesktopWidth / 2))

                IniWrite($Config, 'LPEXMSG', 'YPOS', Int(@DesktopHeight / 2))

endif



selection()



Func selection()

                Local $emXPos = Int(IniRead($Config, 'LPEXMSG', 'XPOS', '')) ;ready to close position

                Local $emYPos = Int(IniRead($Config, 'LPEXMSG', 'YPOS', '')) ;ready to close position



                _ExtMsgBoxSet(32 + 64, 2, 0x004080, 0xFFFF00, 10, "Comic Sans MS")

                ; message for text body

                $sMsg = '"Message for text body'

                $iRetValue = _ExtMsgBox($EMB_ICONEXCLAM, "&Continue|&Skip|E&xit", "click 'Continue' to save current file.|click 'Skip' saving |click 'Exit' to Quit!", "Ready to Complete", $sMsg, 0, $emXPos, $emYPos)

                If $iRetValue = 2 Then

                                MsgBox(4096, 'Skip', ' "Skip" to save')

                ElseIf $iRetValue = 3 Then

                                Exit

                ElseIf $iRetValue = 1 Then

                                MsgBox(4096, 'Continue', 'save current file')

                EndIf



EndFunc







Func LASTPOST($hWnd, $nMsg, $wParam, $lParam)

                Local $aWPos = WinGetPos($hWnd)

                If IsArray($aWPos) Then

                                ;$aWPos = WinGetPos("")

                                IniWrite($Config, 'LPEXMSG', 'XPOS', $aWPos[0])

                                IniWrite($Config, 'LPEXMSG', 'YPOS', $aWPos[1])

                                $emXPos = $aWPos[0]

                                $emYPos = $aWPos[1]

                EndIf

                Return

EndFunc

Thanks

Monooboe

Edited April 1, 2018 by Monooboe

[Melba23]

Monooboe,

You need to define the ini file before the EMB include so that the path variable is defined within the UDF. Then you can do this:

expandcollapse popup

Global $Config = @ScriptDir & "\config.ini"

FileDelete($Config) ; Just to make sure we do not have an ini to start

Global $emXPos, $emYPos

#include "ExtMsgBox.au3"
#include <File.au3>

$chkF = FileExists($Config)
If $chkF Then
    $emXPos = Int(IniRead($Config, 'LPEXMSG', 'XPOS', '')) ;ready to close position
    $emYPos = Int(IniRead($Config, 'LPEXMSG', 'YPOS', '')) ;ready to close position
Else
    $emXPos = Int(@DesktopWidth / 2)
    $emYPos = Int(@DesktopHeight / 2)
    IniWrite($Config, 'LPEXMSG', 'XPOS', $emXPos)
    IniWrite($Config, 'LPEXMSG', 'YPOS', $emYPos)
EndIf

; This will be around the centre of the screen
selection()

; Set the new coords to top-left
$emXPos = 100
$emYPos = 100

; And that is where it appears
selection()

; Read from the ini
$emXPos = Int(IniRead($Config, 'LPEXMSG', 'XPOS', ''))
$emYPos = Int(IniRead($Config, 'LPEXMSG', 'YPOS', ''))

; And we get it in the same position
selection()

Func selection()
    _ExtMsgBoxSet(32 + 64, 2, 0x004080, 0xFFFF00, 10, "Comic Sans MS")
    ; message for text body
    $sMsg = '"Message for text body'
    $iRetValue = _ExtMsgBox($EMB_ICONEXCLAM, "&Continue|&Skip|E&xit", "Ready to Complete", $sMsg, 0, $emXPos, $emYPos)
    IniWrite($Config, 'LPEXMSG', 'XPOS', $emXPos)
    IniWrite($Config, 'LPEXMSG', 'YPOS', $emYPos)
    If $iRetValue = 2 Then
        MsgBox(4096, 'Skip', ' "Skip" to save')
    ElseIf $iRetValue = 3 Then
        Exit
    ElseIf $iRetValue = 1 Then
        MsgBox(4096, 'Continue', 'save current file')
    EndIf
EndFunc   ;==>selection

All clear?

M23

Edit: As this is modifying the main UDF and I am not going to support it in the future, if we need to go on any longer I shall split off these posts into a separate thread.

Edited April 1, 2018 by Melba23

[Monooboe]

thanks

[Melba23]

[NEW VERSION] 2 Aug 18

Added: When specifying the icon to use, if the $vIcon parameter is set to the name of an ico or exe file, the main icon within will be displayed, but if a trailing "|" followed by the icon index is added to the name, that icon from within the file is used.

New UDF and examples in the first post.

M23

[CaptainGadget]

On 8/2/2018 at 11:07 AM, Melba23 said:

[NEW VERSION] 2 Aug 18

New UDF and examples in the first post.

Just noticed the new date on the thread and thought I'd grab the update as it's once of my faves... Anyway, the zip file I downloaded from the OP shows a date April 6, 2018. Is that the latest or did I misunderstand the message above?

[Melba23]

CaptainGadget,

When I download the zip in the first post I get the latest version, which was created on 2/08/18 and is 17,244 bytes.

M23

[mLipok]

I had have the same issue

Edited September 14, 2018 by mLipok
wording

[Melba23]

mLipok & CaptainGadget,

I see what you mean now. That date is correct - I modified the file a long time ago and only just got around to releasing it. Sorry for the confusion.

M23

[boomingranny]

I love the UDF and thank you for sharing. Very useful indeed.

For my own usage I have moved the icon be located down vertically and added more horizontal padding (similar to the original windows msgbox)
It doesn't look like there are any settings for this, but perhaps a future version could feature it? (as an option perhaps)
Not that it matters as I'm happy to change the code myself, but it may be of benefit for others.

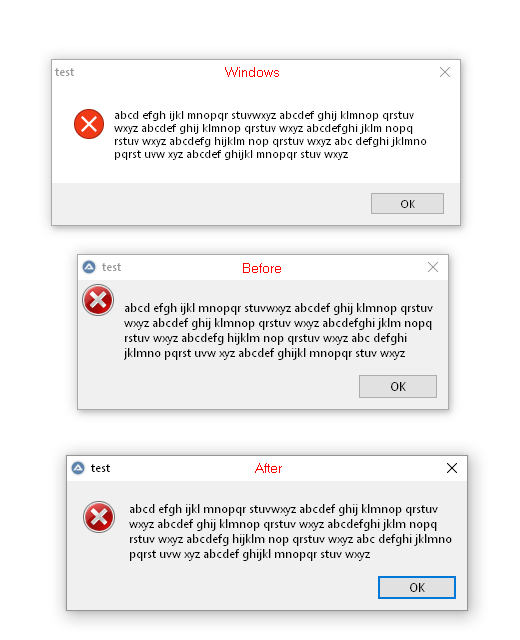

I just aligned it vertically with the label:







[Melba23]

boomingranny

Can you please let me have a copy of the lines you changed - I quite like the new icon positioning.

M23

[brisesel]

Really nice UDF, thanks a lot.

[GordonShumway]

I've been using your excellent UDF for quit some time now. Thank you, Melba23.

It's not my habbit, to modify somebody else's UDF, but I only recently found out that I could not position EMB on my second monitor.
In several places you use @DesktopWidth which seems to be limited only to the first monitor.
In this script I found what I wanted: https://www.autoitscript.com/forum/topic/113140-determine-screen-resolution-of-multiple-monitors/
I used some coding from member ahha from his (her?) post from April 16, 2010.

Here you can see the lines; one added and one modified:

; If dialog is to appear on main display
    If $bMain Then
        Local $VirtX = DllCall("user32.dll", "int", "GetSystemMetrics", "int", 78)    ;SM_CXVIRTUALSCREEN 78. New Gordon 28jan2019.
        ; Dialog is visible horizontally
        If $iHpos < 10 Then $iHpos = 10
;~      If $iHpos + $iDialog_Width > @DesktopWidth - 20 Then $iHpos = @DesktopWidth - 20 - $iDialog_Width ;Melba23 original.
        If $iHpos + $iDialog_Width > $VirtX[0] - 20 Then $iHpos = $VirtX[0] - 20 - $iDialog_Width ;Modified Gordon 28jan2019.
        ; Then vertically
        If $iVPos < 10 Then $iVPos = 10
        If $iVPos + $iMsg_Height > @DesktopHeight - 60 Then $iVPos = @DesktopHeight - 60 - $iMsg_Height
    EndIf

Hopefully it can get your approval.



[Melba23]

GordonShumway

Quote

but I only recently found out that I could not position EMB on my second monitor.

Are you sure about that?

Quote

[NEW VERSION] 30 Mar 15
-----------------------

Added: A new parameter to the _ExtMsgBox function to allow the dialog to display on secondary displays. The UDF default behaviour prevents simple coordinate errors from making the dialog invisible (the coordinates are adjusted to make sure it appears on the main screen as close as possible to the desired location) which does not allow the dialog to be deliberately positioned off the main display - setting this new parameter allows the dialog to be located at any position. Obviously the user who sets this parameter is now responsible for ensuring that the dialog is visible.

M23

[kurtykurtyboy]

Pretty cool UDF @Melba23!

I noticed a small issue - not for the UDF, just the example.
In Example 1 for the Test 1 button, it says 'It will not time out' but the timeout is set for 20.

[Melba23]

kurtykurtyboy,

Thanks - glad you like the UDF.

M23

[Rex]

Hi Melba

I broke your UDF

If I use Your UDF and the GUICtrlOnHover UDF in the same script, I get the above result

Sample code to replicate the problem (at least on my win10 and my test win7)

expandcollapse popup

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_Outfile=TEST_GUI_ERROR.exe
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <includes\GUICtrlOnHover.au3>
#include "Includes\ExtMsgBox.au3"
Opt("GUIOnEventMode", 1)
#Region ### START Koda GUI section ### Form=
Global $Form1 = GUICreate("Form1", 221, 48, Default, Default)
GUISetOnEvent($GUI_EVENT_CLOSE, "Form1Close")
Global $idInp_1 = GUICtrlCreateInput("This is a text that, is longer than 34 chars in len, and therefore it should be displayed in a tooltip, upon hover", 8, 8, 153, 21)
_GUICtrl_OnHoverRegister(-1, "_Hover_Func", "_Hover_Func")
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    Sleep(100)
WEnd

Func Form1Close()
Local $iMsgAnsw = _ExtMsgBox($EMB_ICONQUERY, $MB_YESNO, "Close GUI", "Do you want to close the GUI?")
    ; Run thru the answers
    Switch $iMsgAnsw

        Case 1 ; The user clicked yes
            ; Delete the gui's
            GUIDelete($Form1)

            Exit ; And we exit the program

        Case 2 ; The user clicked no
            Return ; We return doing nothing

    EndSwitch
EndFunc

Func _Hover_Func($iCtrlID, $iParam)
    Switch $iParam
        Case 1
            Local $sdata = GUICtrlRead($idInp_1)

            If $sdata <> '' And StringLen($sdata) > 34 Then
                If Not IsDeclared("sToolTipAnswer") Then Local $sToolTipAnswer
                $sToolTipAnswer = ToolTip(GUICtrlRead($idInp_1), Default, Default, "", 1, 1)
            EndIf
        Case 2
            ToolTip("")
    EndSwitch
EndFunc   ;==>_Hover_Func



Cheers
/Rex
