How do I use DrawThemeTextEx to get glowing text on aero glass?

Vadersapien · November 11, 2009

Got the text positioned...but...say my _DrawTime() function is like this:

Func _DrawTime()
    Local $hDC = _WinAPI_GetDC($hGUI)
    Local $tClientRect = _WinAPI_GetClientRect($hGUI)
    Local $tST = _Date_Time_GetLocalTime()
    Local $sText = _Date_Time_SystemTimeToTimeStr($tST)
    Local $hFont = _WinAPI_CreateFont(15, 6, 0, 0, 400, False, False, False, $DEFAULT_CHARSET, _
        $OUT_DEFAULT_PRECIS, $CLIP_DEFAULT_PRECIS, $DEFAULT_QUALITY, 0, 'Segoe UI') ; Edit as necessary.

    DllStructSetData($tClientRect, "Top", 76)

    _DrawGlowingText($hDC, $sText, $tClientRect, 10, $hFont, 0x000000) ; BGR, implementing RGB is easy.

    _WinAPI_DeleteObject($hFont)
    _WinAPI_ReleaseDC($hGUI, $hDC)
EndFunc

Positioning the text with this code:

DllStructSetData($tClientRect, "Top", 76)

It works, but leaves a big white rectangle at the top...any idea why?

Authenticity · November 11, 2009

Make sure you handle $WM_ERASEBKGND and fill the client area, the DWM seeks for pixels with the color 0x000000 (100% transparent black) in your GUI to apply the blur effect:

Func _WM_ERASEBKGND($hWnd, $iMsg, $iwParam, $ilParam)
    Local $hDC = $iwParam
    Local $tClientRect = _WinAPI_GetClientRect($hWnd)
    Local $hBrush = _WinAPI_GetStockObject($BLACK_BRUSH)

    _WinAPI_FillRect($hDC, DllStructGetPtr($tClientRect), $hBrush)

    Return 1
EndFunc

Edited November 11, 2009 by Authenticity

GtaSpider · November 11, 2009

This code is from this article. This guy tried numerous things and the best he came up with is this one which requires much more code (for every control) but not as much dealing with owner drawn controls:

#include <Constants.au3>
#include <Date.au3>
#include <EditConstants.au3>
#include <FontConstants.au3>
#include <GUIConstantsEx.au3>
#include <WinAPI.au3>
#include <WindowsConstants.au3>
Opt("MustDeclareVars", 1)

If Not IsDeclared("WM_DWMCOMPOSITIonchangeD") Then Global Const $WM_DWMCOMPOSITIonchangeD = 0x031E
If Not IsDeclared("WM_PRINT") Then Global Const $WM_PRINT = 0x0317
If Not IsDeclared("WM_PRINTCLIENT") Then Global Const $WM_PRINTCLIENT = 0x0318
If Not IsDeclared("tagBP_PAINTPARAMS") Then Global Const $tagBP_PAINTPARAMS = "uint Size;uint Flags;" & $tagRECT & ";ptr BlendFunction;"
If Not IsDeclared ("tagDWM_BLURBEHIND") Then Global Const $tagDWM_BLURBEHIND = "uint Flags;int Enable;hwnd RgnBlur;int TransitionOnMaximized;"
If Not IsDeclared("tagPAINTSTRUCT") Then Global Const $tagPAINTSTRUCT = "hwnd hDC;int Erase;" & $tagRECT & ";int Restore;int IncUpdate;ubyte Reserved[32]"
If Not IsDeclared("tagDTTOPTS") Then Global Const $tagDTTOPTS = _
"uint Size;uint Flags;uint clrText;uint clrBorder;uint clrShadow;int TextShadowType;" & $tagPOINT & _
";int BorderSize;int FontPropId;int ColorPropId;int StateId;int ApplyOverlay;int GlowSize;ptr DrawTextCallback;int lParam;"

Global Enum $BPBF_COMPATIBLEBITMAP, $BPBF_DIB, $BPBF_TOPDOWNDIB, $BPBF_TOPDOWNMONODIB
Global Const $PRF_CHECKVISIBLE = 0x00000001
Global Const $PRF_NONCLIENT = 0x00000002
Global Const $PRF_CLIENT = 0x00000004
Global Const $PRF_ERASEBKGND = 0x00000008
Global Const $PRF_CHILDREN = 0x00000010
Global Const $PRF_OWNED = 0x00000020
Global Const $DWM_BB_ENABLE = 0x00000001
Global Const $DWM_BB_BLURREGION = 0x00000002
Global Const $DWM_BB_TRANSITIONONMAXIMIZED = 0x00000004
Global Const $DTT_GRAYED = 0x00000001
Global Const $DTT_FLAGS2VALIDBITS = $DTT_GRAYED
Global Const $DTT_TEXTCOLOR = 0x00000001
Global Const $DTT_BORDERCOLOR = 0x00000002
Global Const $DTT_SHADOWCOLOR = 0x00000004
Global Const $DTT_SHADOWTYPE = 0x00000008
Global Const $DTT_SHADOWOFFSET = 0x00000010
Global Const $DTT_BORDERSIZE = 0x00000020
Global Const $DTT_FONTPROP = 0x00000040
Global Const $DTT_COLORPROP = 0x00000080
Global Const $DTT_STATEID = 0x00000100
Global Const $DTT_CALCRECT = 0x00000200
Global Const $DTT_APPLYOVERLAY = 0x00000400
Global Const $DTT_GLOWSIZE = 0x00000800
Global Const $DTT_CALLBACK = 0x00001000
Global Const $DTT_COMPOSITED = 0x00002000
Global Const $DTT_VALIDBITS = BitOR($DTT_TEXTCOLOR, $DTT_BORDERCOLOR, $DTT_SHADOWCOLOR, $DTT_SHADOWTYPE, $DTT_SHADOWOFFSET, $DTT_BORDERSIZE, _
        $DTT_FONTPROP, $DTT_COLORPROP, $DTT_STATEID, $DTT_CALCRECT, $DTT_APPLYOVERLAY, $DTT_GLOWSIZE, $DTT_COMPOSITED)

Global $hUxTheme = DllOpen("uxtheme.dll")

Global $hGUI = GUICreate("Test", 300, 300)
Global $hTheme = _WinAPI_OpenThemeData($hGUI, "globals", $hUxTheme)
; Initialize buffered painting for the current thread.
_WinAPI_BufferedPaintInit($hUxTheme)

Global $Edit = GUICtrlCreateInput("Hello World",20,10,260,25);Wont work
Global $hEdit = GUICtrlGetHandle(-1)
GUICtrlSetFont(-1, 15, 500)

Global $hEditProc = DllCallbackRegister("_EditProc", "int", "hwnd;uint;wparam;lparam")
Global $hWndProc = _WinAPI_SetWindowLong($hEdit, $GWL_WNDPROC, DllCallbackGetPtr($hEditProc))

GUIRegisterMsg($WM_ERASEBKGND, "_WM_ERASEBKGND")
GUIRegisterMsg($WM_DWMCOMPOSITIonchangeD, "_WM_DWMCOMPOSITIonchangeD")
GUIRegisterMsg($WM_COMMAND, "_WM_COMMAND")
_DrawTime()
_SendMessage($hGUI, $WM_DWMCOMPOSITIonchangeD)
AdlibEnable("_DrawTime", 1000)
GUISetState()

Do
Until GUIGetMsg() = $GUI_EVENT_CLOSE

_WinAPI_CloseThemeData($hTheme, $hUxTheme)
_WinAPI_SetWindowLong($hEdit, $GWL_WNDPROC, $hWndProc)
DllCallbackFree($hEditProc)

;Closes down buffered painting for the current thread.
_WinAPI_BufferedPaintUnInit($hUxTheme)
GUIDelete()
Exit


Func _EditProc($hWnd, $iMsg, $iwParam, $ilParam)
    Local $hDC, $hBufferedDC, $hPaintBuffer
    Local $tPS, $pPS
    Local $tRect

    Switch $iMsg
        Case $WM_PAINT
            $tPS = DllStructCreate($tagPAINTSTRUCT)
            $pPS = DllStructGetPtr($tPS)
            $hDC = _WinAPI_BeginPaint($hWnd, $pPS)
            $tRect = DllStructCreate($tagRECT)

            For $i = 1 To 4
                DllStructSetData($tRect, $i, DllStructGetData($tPS, $i+2))
            Next

            $hPaintBuffer = _WinAPI_BeginBufferedPaint($hDC, DllStructGetPtr($tRect), $BPBF_TOPDOWNDIB, 0, $hBufferedDC, $hUxTheme)
            _SendMessage($hWnd, $WM_PRINTCLIENT, $hBufferedDC, $PRF_CLIENT)
            _WinAPI_BufferedPaintSetAlpha($hPaintBuffer, 0, 255, $hUxTheme)
            If $hPaintBuffer Then _WinAPI_EndBufferedPaint($hPaintBuffer, True, $hUxTheme)

            _WinAPI_EndPaint($hWnd, $pPS)
            Return 0
    EndSwitch

    Return _WinAPI_CallWindowProc($hWndProc, $hWnd, $iMsg, $iwParam, $ilParam)
EndFunc

Func _DrawTime()
    Local $hDC = _WinAPI_GetDC($hGUI)
    Local $tClientRect = _WinAPI_GetClientRect($hGUI)
    Local $tST = _Date_Time_GetLocalTime()
    Local $sText = _Date_Time_SystemTimeToTimeStr($tST)
    Local $hFont = _WinAPI_CreateFont(40, 15, 0, 0, 400, False, False, False, $DEFAULT_CHARSET, _
        $OUT_DEFAULT_PRECIS, $CLIP_DEFAULT_PRECIS, $DEFAULT_QUALITY, 0, 'Arial Black') ; Edit as necessary.

    DllStructSetData($tClientRect, "Top", 50)
    _DrawGlowingText($hDC, $sText, $tClientRect, 10, $hFont, 0x0000aa) ; BGR, implementing RGB is easy.

    _WinAPI_DeleteObject($hFont)
    _WinAPI_ReleaseDC($hGUI, $hDC)
EndFunc

Func _WM_ERASEBKGND($hWnd, $iMsg, $iwParam, $ilParam)
    Local $hDC = $iwParam
    Local $tClientRect = _WinAPI_GetClientRect($hWnd)
    Local $hBrush = _WinAPI_GetStockObject($BLACK_BRUSH)

    _WinAPI_FillRect($hDC, DllStructGetPtr($tClientRect), $hBrush)
    _WinAPI_DeleteObject($hBrush)

    Return 1
EndFunc

Func _WM_DWMCOMPOSITIonchangeD($hWnd, $iMsg, $iwParam, $ilParam)
    Local $tMargs = DllStructCreate($tagMARGINS)

    If _WinAPI_DwmIsCompositionEnabled() Then
        For $i = 1 To 4
            DllStructSetData($tMargs, $i, -1)
        Next
        _WinAPI_DwmExtendFrameIntoClientArea($hWnd, $tMargs)
    EndIf

    Return 0
EndFunc

Func _WM_COMMAND($hWnd, $iMsg, $iwParam, $ilParam)
    If _WinAPI_HiWord($iwParam) = $EN_CHANGE Then
        _WinAPI_InvalidateRect($hWnd, 0, False)
        Return 0
    EndIf

    Return $GUI_RUNDEFMSG
EndFunc

Func _DrawGlowingText($hDC, $sText, $tRc, $iGlowSize = 10, $hFont = 0, $iTextClr = -1)
    Local $hCDC
    Local $hBrush, $hOldBrush
    Local $tRcText
    Local $tBI, $tDTO
    Local $hDIBBmp, $hOldBmp
    Local $hOldFont
    Local $tST
    Local $iFlags = BitOR($DTT_GLOWSIZE, $DTT_COMPOSITED)

    $hCDC = _WinAPI_CreateCompatibleDC($hDC)

    $tBI = DllStructCreate($tagBITMAPINFO)
    DllStructSetData($tBI, "Size", DllStructGetSize($tBI)-4)
    DllStructSetData($tBI, "Width", DllStructGetData($tRc, "Right")-DllStructGetData($tRc, "Left"))
    DllStructSetData($tBI, "Height", -(DllStructGetData($tRc, "Bottom")-DllStructGetData($tRc, "Top")))
    DllStructSetData($tBI, "Planes", 1)
    DllStructSetData($tBI, "BitCount", 32)
    DllStructSetData($tBI, "Compression", 0) ; BI_RGB

    $hDIBBmp = _WinAPI_CreateDIBSection($hDC, $tBI)
    $hOldBmp = _WinAPI_SelectObject($hCDC, $hDIBBmp)
    If $hFont Then $hOldFont = _WinAPI_SelectObject($hCDC, $hFont)

     $tDTO = DllStructCreate($tagDTTOPTS)
    DllStructSetData($tDTO, "Size", DllStructGetSize($tDTO))

    If $iTextClr <> -1 Then
        $iFlags = BitOR($iFlags, $DTT_TEXTCOLOR)
        DllStructSetData($tDTO, "clrText", $iTextClr)
    EndIf


    DllStructSetData($tDTO, "Flags", $iFlags)
    DllStructSetData($tDTO, "GlowSize", $iGlowSize)

    _WinAPI_DrawThemeTextEx($hTheme, $hCDC, 0, 0, $sText, _
        BitOR($DT_SINGLELINE, $DT_CENTER, $DT_VCENTER, $DT_NOPREFIX), $tRc, $tDTO)

    _WinAPI_BitBlt($hDC, DllStructGetData($tRc, "Left"), DllStructGetData($tRc, "Top"), _
        DllStructGetData($tRc, "Right")-DllStructGetData($tRc, "Left"), _
        DllStructGetData($tRc, "Bottom")-DllStructGetData($tRc, "Top"), $hCDC, 0, 0, 0xCC0020) ; SRCCOPY

    _WinAPI_SelectObject($hCDC, $hOldBmp)
    If $hFont Then _WinAPI_SelectObject($hCDC, $hOldFont)
    _WinAPI_DeleteObject($hDIBBmp)
    _WinAPI_DeleteDC($hCDC)
EndFunc

Func _WinAPI_DwmExtendFrameIntoClientArea($hWnd, ByRef $tMargins)
    Local $aResult = DllCall("dwmapi.dll", "int", "DwmExtendFrameIntoClientArea", "hwnd", $hWnd, "ptr", DllStructGetPtr($tMargins))

    If @error Then Return SetError(@error, @extended, -1)
    Return $aResult[0]
EndFunc

Func _WinAPI_DwmIsCompositionEnabled()
    Local $aResult = DllCall("dwmapi.dll", "int", "DwmIsCompositionEnabled", "int*", 0)

    If @error Then Return SetError(@error, @extended, -1)
    Return SetError($aResult[0], 0, $aResult[1])
EndFunc

Func _WinAPI_DwmEnableBlurBehindWindow($hWnd, ByRef $tBlurBehind)
    Local $aResult = DllCall("dwmapi.dll", "int", "DwmEnableBlurBehindWindow", "hwnd", $hWnd, "ptr", DllStructGetPtr($tBlurBehind))

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, 0, $aResult[0] = 0)
EndFunc

Func _WinAPI_CreateDIBSection($hDC, Const ByRef $tBmpInfo, $iUsage = 0, $pBits = 0, $hSecond = 0, $iOffset = 0)
    Local $aResult = DllCall("gdi32.dll", "hwnd", "CreateDIBSection", "hwnd", $hDC, "ptr", DllStructGetPtr($tBmpInfo), _
                        "uint", $iUsage, "ptr", $pBits, "hwnd", $hSecond, "uint", $iOffset)

    If @error Then Return SetError(@error, @extended, 0)
    If $aResult[0] = 87 Then Return SetError(1, 1, 0); 87 = ERROR_INVALID_PARAMETER
    If $aResult[0] = 0 Then Return SetError(1, 2, 0)
    Return SetError(0, 0, $aResult[0])
EndFunc

Func _WinAPI_BeginPaint($hWnd, $pPaintStruct)
    Local $aResult = DllCall("user32.dll", "hwnd", "BeginPaint", "hwnd", $hWnd, "ptr", $pPaintStruct)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, 0, $aResult[0])
EndFunc

Func _WinAPI_EndPaint($hWnd, $pPaintStruct)
    Local $aResult = DllCall("user32.dll", "int", "EndPaint", "hwnd", $hWnd, "ptr", $pPaintStruct)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, 0, $aResult[0])
EndFunc

Func _WinAPI_DrawThemeTextEx($hTheme, $hDC, $iPartId, $iStateId, $sText, $iFlags, ByRef $tRect, Const ByRef $tDTTOPTS)
    Local $aResult = DllCall("uxtheme.dll", "int", "DrawThemeTextEx", "ptr", $hTheme, "hwnd", $hDC, "int", $iPartId, "int", $iStateId, _
                        "wstr", $sText, "int", -1, "uint", $iFlags, "ptr", DllStructGetPtr($tRect), "ptr", DllStructGetPtr($tDTTOPTS))

    If @error Then Return SetError(@error, @extended, 0)
    If $aResult[0] <> 0 Then Return SetError(1, 0, 0)
    Return SetError(0, 0, $aResult[0] = 0)
EndFunc

Func _WinAPI_OpenThemeData($hWnd, $sClassList, $hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "hwnd", "OpenThemeData", "hwnd", $hWnd, "wstr", $sClassList)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, 0, $aResult[0])
EndFunc

Func _WinAPI_CloseThemeData($hTheme, $hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "int", "CloseThemeData", "hwnd", $hTheme)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, $aResult[0], $aResult[0] = 0)
EndFunc

Func _WinAPI_BufferedPaintInit($hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "int", "BufferedPaintInit")

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, $aResult[0], $aResult[0] = 0)
EndFunc

Func _WinAPI_BufferedPaintUnInit($hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "int", "BufferedPaintUnInit")

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, $aResult[0], $aResult[0] = 0)
EndFunc

Func _WinAPI_BeginBufferedPaint($hDC, $pRc, $iBufferFormat, $pPaintParams ,ByRef $phDC, $hDll = "uxtheme.dll")
    Local $tHDC = DllStructCreate("hwnd")
    Local $aResult = DllCall($hDll, "hwnd", "BeginBufferedPaint", "hwnd", $hDC, "ptr", $pRc, "int", $iBufferFormat, "ptr", $pPaintParams, "ptr", DllStructGetPtr($tHDC))

    If @error Then Return SetError(@error, @extended, 0)
    $phDC = DllStructGetData($tHDC, 1)
    Return SetError(0, 0, $aResult[0])
EndFunc

Func _WinAPI_EndBufferedPaint($hPaintBuffer, $fUpdateTarget = True, $hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "int", "EndBufferedPaint", "hwnd", $hPaintBuffer, "int", $fUpdateTarget)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, $aResult[0], $aResult[0] = 0)
EndFunc

Func _WinAPI_BufferedPaintSetAlpha($hPaintBuffer, $pRc, $bAlpha = 255, $hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "int", "BufferedPaintSetAlpha", "hwnd", $hPaintBuffer, "ptr", $pRc, "ubyte", $bAlpha)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, $aResult[0], $aResult[0] = 0)
EndFunc

Another simpler method is to handle the basic controls' WM_CTLCOLOREDIT or WM_CTLCOLORBTN (for example), isn't as satisfying, but it's easier:

#include <Constants.au3>
#include <Date.au3>
#include <EditConstants.au3>
#include <FontConstants.au3>
#include <GUIConstantsEx.au3>
#include <WinAPI.au3>
#include <WindowsConstants.au3>
Opt("MustDeclareVars", 1)

If Not IsDeclared("WM_DWMCOMPOSITIonchangeD") Then Global Const $WM_DWMCOMPOSITIonchangeD = 0x031E
If Not IsDeclared("WM_PRINT") Then Global Const $WM_PRINT = 0x0317
If Not IsDeclared("WM_PRINTCLIENT") Then Global Const $WM_PRINTCLIENT = 0x0318
If Not IsDeclared("WM_CTLCOLOREDIT") Then Global Const $WM_CTLCOLOREDIT = 0x0133
If Not IsDeclared("tagBP_PAINTPARAMS") Then Global Const $tagBP_PAINTPARAMS = "uint Size;uint Flags;" & $tagRECT & ";ptr BlendFunction;"
If Not IsDeclared ("tagDWM_BLURBEHIND") Then Global Const $tagDWM_BLURBEHIND = "uint Flags;int Enable;hwnd RgnBlur;int TransitionOnMaximized;"
If Not IsDeclared("tagPAINTSTRUCT") Then Global Const $tagPAINTSTRUCT = "hwnd hDC;int Erase;" & $tagRECT & ";int Restore;int IncUpdate;ubyte Reserved[32]"
If Not IsDeclared("tagDTTOPTS") Then Global Const $tagDTTOPTS = _
"uint Size;uint Flags;uint clrText;uint clrBorder;uint clrShadow;int TextShadowType;" & $tagPOINT & _
";int BorderSize;int FontPropId;int ColorPropId;int StateId;int ApplyOverlay;int GlowSize;ptr DrawTextCallback;int lParam;"

Global Enum $BPBF_COMPATIBLEBITMAP, $BPBF_DIB, $BPBF_TOPDOWNDIB, $BPBF_TOPDOWNMONODIB
Global Const $PRF_CHECKVISIBLE = 0x00000001
Global Const $PRF_NONCLIENT = 0x00000002
Global Const $PRF_CLIENT = 0x00000004
Global Const $PRF_ERASEBKGND = 0x00000008
Global Const $PRF_CHILDREN = 0x00000010
Global Const $PRF_OWNED = 0x00000020
Global Const $DWM_BB_ENABLE = 0x00000001
Global Const $DWM_BB_BLURREGION = 0x00000002
Global Const $DWM_BB_TRANSITIONONMAXIMIZED = 0x00000004
Global Const $DTT_GRAYED = 0x00000001
Global Const $DTT_FLAGS2VALIDBITS = $DTT_GRAYED
Global Const $DTT_TEXTCOLOR = 0x00000001
Global Const $DTT_BORDERCOLOR = 0x00000002
Global Const $DTT_SHADOWCOLOR = 0x00000004
Global Const $DTT_SHADOWTYPE = 0x00000008
Global Const $DTT_SHADOWOFFSET = 0x00000010
Global Const $DTT_BORDERSIZE = 0x00000020
Global Const $DTT_FONTPROP = 0x00000040
Global Const $DTT_COLORPROP = 0x00000080
Global Const $DTT_STATEID = 0x00000100
Global Const $DTT_CALCRECT = 0x00000200
Global Const $DTT_APPLYOVERLAY = 0x00000400
Global Const $DTT_GLOWSIZE = 0x00000800
Global Const $DTT_CALLBACK = 0x00001000
Global Const $DTT_COMPOSITED = 0x00002000
Global Const $DTT_VALIDBITS = BitOR($DTT_TEXTCOLOR, $DTT_BORDERCOLOR, $DTT_SHADOWCOLOR, $DTT_SHADOWTYPE, $DTT_SHADOWOFFSET, $DTT_BORDERSIZE, _
        $DTT_FONTPROP, $DTT_COLORPROP, $DTT_STATEID, $DTT_CALCRECT, $DTT_APPLYOVERLAY, $DTT_GLOWSIZE, $DTT_COMPOSITED)

Global $hUxTheme = DllOpen("uxtheme.dll")

Global $hGUI = GUICreate("Test", 300, 300)
Global $hTheme = _WinAPI_OpenThemeData($hGUI, "globals", $hUxTheme)
Global $hBrush = _WinAPI_CreateSolidBrush(0)

Global $Edit = GUICtrlCreateInput("Hello World",20,10,260,25)
Global $hEdit = GUICtrlGetHandle(-1)
GUICtrlSetFont(-1, 15, 500)

GUIRegisterMsg($WM_ERASEBKGND, "_WM_ERASEBKGND")
GUIRegisterMsg($WM_DWMCOMPOSITIonchangeD, "_WM_DWMCOMPOSITIonchangeD")
GUIRegisterMsg($WM_CTLCOLOREDIT, "_WM_CTLCOLOREDIT")
_DrawTime()
_SendMessage($hGUI, $WM_DWMCOMPOSITIonchangeD)
AdlibEnable("_DrawTime", 1000)
GUISetState()

Do
Until GUIGetMsg() = $GUI_EVENT_CLOSE

_WinAPI_DeleteObject($hBrush)
_WinAPI_CloseThemeData($hTheme, $hUxTheme)
GUIDelete()
Exit

Func _WM_CTLCOLOREDIT($hWnd, $iMsg, $iwParam, $ilParam)
    Local $hDC = $iwParam
    _WinAPI_SetTextColor($hDC, 0x00FFFF)
    _WinAPI_SetBkColor($hDC, 0)
    Return $hBrush
EndFunc

Func _DrawTime()
    Local $hDC = _WinAPI_GetDC($hGUI)
    Local $tClientRect = _WinAPI_GetClientRect($hGUI)
    Local $tST = _Date_Time_GetLocalTime()
    Local $sText = _Date_Time_SystemTimeToTimeStr($tST)
    Local $hFont = _WinAPI_CreateFont(40, 15, 0, 0, 400, False, False, False, $DEFAULT_CHARSET, _
        $OUT_DEFAULT_PRECIS, $CLIP_DEFAULT_PRECIS, $DEFAULT_QUALITY, 0, 'Arial Black') ; Edit as necessary.

    DllStructSetData($tClientRect, "Top", 50)
    _DrawGlowingText($hDC, $sText, $tClientRect, 10, $hFont, 0x0000aa) ; BGR, implementing RGB is easy.

    _WinAPI_DeleteObject($hFont)
    _WinAPI_ReleaseDC($hGUI, $hDC)
EndFunc

Func _WM_ERASEBKGND($hWnd, $iMsg, $iwParam, $ilParam)
    Local $hDC = $iwParam
    Local $tClientRect = _WinAPI_GetClientRect($hWnd)
    Local $hBrush = _WinAPI_GetStockObject($BLACK_BRUSH)

    _WinAPI_FillRect($hDC, DllStructGetPtr($tClientRect), $hBrush)
    _WinAPI_DeleteObject($hBrush)

    Return 1
EndFunc

Func _WM_DWMCOMPOSITIonchangeD($hWnd, $iMsg, $iwParam, $ilParam)
    Local $tMargs = DllStructCreate($tagMARGINS)

    If _WinAPI_DwmIsCompositionEnabled() Then
        For $i = 1 To 4
            DllStructSetData($tMargs, $i, -1)
        Next
        _WinAPI_DwmExtendFrameIntoClientArea($hWnd, $tMargs)
    EndIf

    Return 0
EndFunc

Func _WM_COMMAND($hWnd, $iMsg, $iwParam, $ilParam)
    If _WinAPI_HiWord($iwParam) = $EN_CHANGE Then
        _WinAPI_InvalidateRect($hWnd, 0, False)
        Return 0
    EndIf

    Return $GUI_RUNDEFMSG
EndFunc

Func _DrawGlowingText($hDC, $sText, $tRc, $iGlowSize = 10, $hFont = 0, $iTextClr = -1)
    Local $hCDC
    Local $hBrush, $hOldBrush
    Local $tRcText
    Local $tBI, $tDTO
    Local $hDIBBmp, $hOldBmp
    Local $hOldFont
    Local $tST
    Local $iFlags = BitOR($DTT_GLOWSIZE, $DTT_COMPOSITED)

    $hCDC = _WinAPI_CreateCompatibleDC($hDC)

    $tBI = DllStructCreate($tagBITMAPINFO)
    DllStructSetData($tBI, "Size", DllStructGetSize($tBI)-4)
    DllStructSetData($tBI, "Width", DllStructGetData($tRc, "Right")-DllStructGetData($tRc, "Left"))
    DllStructSetData($tBI, "Height", -(DllStructGetData($tRc, "Bottom")-DllStructGetData($tRc, "Top")))
    DllStructSetData($tBI, "Planes", 1)
    DllStructSetData($tBI, "BitCount", 32)
    DllStructSetData($tBI, "Compression", 0) ; BI_RGB

    $hDIBBmp = _WinAPI_CreateDIBSection($hDC, $tBI)
    $hOldBmp = _WinAPI_SelectObject($hCDC, $hDIBBmp)
    If $hFont Then $hOldFont = _WinAPI_SelectObject($hCDC, $hFont)

     $tDTO = DllStructCreate($tagDTTOPTS)
    DllStructSetData($tDTO, "Size", DllStructGetSize($tDTO))

    If $iTextClr <> -1 Then
        $iFlags = BitOR($iFlags, $DTT_TEXTCOLOR)
        DllStructSetData($tDTO, "clrText", $iTextClr)
    EndIf


    DllStructSetData($tDTO, "Flags", $iFlags)
    DllStructSetData($tDTO, "GlowSize", $iGlowSize)

    _WinAPI_DrawThemeTextEx($hTheme, $hCDC, 0, 0, $sText, _
        BitOR($DT_SINGLELINE, $DT_CENTER, $DT_VCENTER, $DT_NOPREFIX), $tRc, $tDTO)

    _WinAPI_BitBlt($hDC, DllStructGetData($tRc, "Left"), DllStructGetData($tRc, "Top"), _
        DllStructGetData($tRc, "Right")-DllStructGetData($tRc, "Left"), _
        DllStructGetData($tRc, "Bottom")-DllStructGetData($tRc, "Top"), $hCDC, 0, 0, 0xCC0020) ; SRCCOPY

    _WinAPI_SelectObject($hCDC, $hOldBmp)
    If $hFont Then _WinAPI_SelectObject($hCDC, $hOldFont)
    _WinAPI_DeleteObject($hDIBBmp)
    _WinAPI_DeleteDC($hCDC)
EndFunc

Func _WinAPI_DwmExtendFrameIntoClientArea($hWnd, ByRef $tMargins)
    Local $aResult = DllCall("dwmapi.dll", "int", "DwmExtendFrameIntoClientArea", "hwnd", $hWnd, "ptr", DllStructGetPtr($tMargins))

    If @error Then Return SetError(@error, @extended, -1)
    Return $aResult[0]
EndFunc

Func _WinAPI_DwmIsCompositionEnabled()
    Local $aResult = DllCall("dwmapi.dll", "int", "DwmIsCompositionEnabled", "int*", 0)

    If @error Then Return SetError(@error, @extended, -1)
    Return SetError($aResult[0], 0, $aResult[1])
EndFunc

Func _WinAPI_DwmEnableBlurBehindWindow($hWnd, ByRef $tBlurBehind)
    Local $aResult = DllCall("dwmapi.dll", "int", "DwmEnableBlurBehindWindow", "hwnd", $hWnd, "ptr", DllStructGetPtr($tBlurBehind))

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, 0, $aResult[0] = 0)
EndFunc

Func _WinAPI_CreateDIBSection($hDC, Const ByRef $tBmpInfo, $iUsage = 0, $pBits = 0, $hSecond = 0, $iOffset = 0)
    Local $aResult = DllCall("gdi32.dll", "hwnd", "CreateDIBSection", "hwnd", $hDC, "ptr", DllStructGetPtr($tBmpInfo), _
                        "uint", $iUsage, "ptr", $pBits, "hwnd", $hSecond, "uint", $iOffset)

    If @error Then Return SetError(@error, @extended, 0)
    If $aResult[0] = 87 Then Return SetError(1, 1, 0); 87 = ERROR_INVALID_PARAMETER
    If $aResult[0] = 0 Then Return SetError(1, 2, 0)
    Return SetError(0, 0, $aResult[0])
EndFunc

Func _WinAPI_BeginPaint($hWnd, $pPaintStruct)
    Local $aResult = DllCall("user32.dll", "hwnd", "BeginPaint", "hwnd", $hWnd, "ptr", $pPaintStruct)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, 0, $aResult[0])
EndFunc

Func _WinAPI_EndPaint($hWnd, $pPaintStruct)
    Local $aResult = DllCall("user32.dll", "int", "EndPaint", "hwnd", $hWnd, "ptr", $pPaintStruct)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, 0, $aResult[0])
EndFunc

Func _WinAPI_DrawThemeTextEx($hTheme, $hDC, $iPartId, $iStateId, $sText, $iFlags, ByRef $tRect, Const ByRef $tDTTOPTS)
    Local $aResult = DllCall("uxtheme.dll", "int", "DrawThemeTextEx", "ptr", $hTheme, "hwnd", $hDC, "int", $iPartId, "int", $iStateId, _
                        "wstr", $sText, "int", -1, "uint", $iFlags, "ptr", DllStructGetPtr($tRect), "ptr", DllStructGetPtr($tDTTOPTS))

    If @error Then Return SetError(@error, @extended, 0)
    If $aResult[0] <> 0 Then Return SetError(1, 0, 0)
    Return SetError(0, 0, $aResult[0] = 0)
EndFunc

Func _WinAPI_OpenThemeData($hWnd, $sClassList, $hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "hwnd", "OpenThemeData", "hwnd", $hWnd, "wstr", $sClassList)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, 0, $aResult[0])
EndFunc

Func _WinAPI_CloseThemeData($hTheme, $hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "int", "CloseThemeData", "hwnd", $hTheme)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, $aResult[0], $aResult[0] = 0)
EndFunc

Func _WinAPI_BufferedPaintInit($hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "int", "BufferedPaintInit")

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, $aResult[0], $aResult[0] = 0)
EndFunc

Func _WinAPI_BufferedPaintUnInit($hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "int", "BufferedPaintUnInit")

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, $aResult[0], $aResult[0] = 0)
EndFunc

Func _WinAPI_BeginBufferedPaint($hDC, $pRc, $iBufferFormat, $pPaintParams ,ByRef $phDC, $hDll = "uxtheme.dll")
    Local $tHDC = DllStructCreate("hwnd")
    Local $aResult = DllCall($hDll, "hwnd", "BeginBufferedPaint", "hwnd", $hDC, "ptr", $pRc, "int", $iBufferFormat, "ptr", $pPaintParams, "ptr", DllStructGetPtr($tHDC))

    If @error Then Return SetError(@error, @extended, 0)
    $phDC = DllStructGetData($tHDC, 1)
    Return SetError(0, 0, $aResult[0])
EndFunc

Func _WinAPI_EndBufferedPaint($hPaintBuffer, $fUpdateTarget = True, $hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "int", "EndBufferedPaint", "hwnd", $hPaintBuffer, "int", $fUpdateTarget)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, $aResult[0], $aResult[0] = 0)
EndFunc

Func _WinAPI_BufferedPaintSetAlpha($hPaintBuffer, $pRc, $bAlpha = 255, $hDll = "uxtheme.dll")
    Local $aResult = DllCall($hDll, "int", "BufferedPaintSetAlpha", "hwnd", $hPaintBuffer, "ptr", $pRc, "ubyte", $bAlpha)

    If @error Then Return SetError(@error, @extended, 0)
    Return SetError(0, $aResult[0], $aResult[0] = 0)
EndFunc

I guess that Vista doesn't make it easy with the old GDI drawing controls. ::

Thanks alot for your answer

The first Method is realy complicated, and flickrs a little bit (sometimes it tooks some seconds until the text is black again).

The second Method is nice, but its hard to read anyway.

I founded out, that we dont need WM_CTLCOLOREDIT. It's very easy:

Global $Edit = GUICtrlCreateInput("Hello World",20,10,260,25)
GUICtrlSetColor(-1,0xFFFFFF)
GUICtrlSetBkColor(-1,0)
GUICtrlSetFont(-1, 15, 500)

Same effect but much less code.

So. Does anybody now perhaps another method to draw black (or dark) Text in AutoIt Controls (like GuiCtrlCreateInput,Button,...)

I guess that Vista doesn't make it easy with the old GDI drawing controls. ::

I guess you're right ;-) Windows allways try to make it easy for devs. But why the heck not with Aero developing? ;P

Greetings,

Spdier

Vadersapien · December 2, 2009

A quick question...how would I make the text positioned from the top and not the center?

Yashied · May 24, 2010

Hey there,

Is there also a posibility to draw e.g. Inputs (GuiCtrlCreateInput) on Aero? So that black is not transparency? (I think we just have to set the Alpha Channel to 255 (0xFF000000).)
Any Ideas?

You can do the following trick.

#Include <WinAPIEx.au3>
#Include <WindowsConstants.au3>

Opt('MustDeclareVars', 1)

Global $hForm, $AlphaKey = 0xABABAB

$hForm = GUICreate('MyGUI', 400, 400, -1, -1, -1, $WS_EX_LAYERED)
GUISetBkColor($AlphaKey)
GUICtrlCreateInput('Simple Text', 20, 20, 360, 19)
GUICtrlCreateEdit('', 20, 47, 360, 200)
GUICtrlCreateButton('OK', 165, 370, 70, 23)

_WinAPI_SetLayeredWindowAttributes($hForm, $AlphaKey, 0, $LWA_COLORKEY)
_WinAPI_DwmExtendFrameIntoClientArea($hForm)

GUISetState()

Do
Until GUIGetMsg() = -3

A more complex example.

#Include <GUIConstantsEx.au3>
#Include <WinAPIEx.au3>
#Include <WindowsConstants.au3>

Opt('MustDeclareVars', 1)
Opt('WinWaitDelay', 0)

Global Const $WM_NCXBUTTONDOWN = 0x00AB

Global $hForm, $Area, $hDll, $pDll, $hHook, $AlphaKey = 0xABABAB

OnAutoItExitRegister('OnAutoItExit')

$hForm = GUICreate('MyGUI', 400, 400, -1, -1, -1, $WS_EX_LAYERED)
GUISetBkColor($AlphaKey)
$Area = GUICtrlCreateLabel('', 0, 0, 400, 400)
GUICtrlSetBkColor(-1, $AlphaKey)
GUICtrlSetState(-1, $GUI_DISABLE)
GUICtrlCreateInput('Simple Text', 20, 20, 360, 19)
GUICtrlCreateEdit('', 20, 47, 360, 200)
GUICtrlCreateButton('OK', 165, 370, 70, 23)

_WinAPI_SetLayeredWindowAttributes($hForm, $AlphaKey, 0, $LWA_COLORKEY)
_WinAPI_DwmExtendFrameIntoClientArea($hForm)

$hDll = DllCallbackRegister('_MouseHook', 'ptr', 'int;wparam;lparam')
$pDll = DllCallbackGetPtr($hDll)
$hHook = _WinAPI_SetWindowsHookEx($WH_MOUSE_LL, $pDll, 0)

GUISetState()

Do
Until GUIGetMsg() = -3

Func _MouseHook($iCode, $wParam, $lParam)
    If $iCode > -1 Then
        Switch $wParam
            Case $WM_LBUTTONDOWN, $WM_MBUTTONDOWN, $WM_RBUTTONDOWN, $WM_XBUTTONDOWN, $WM_NCXBUTTONDOWN

                Local $Data = GUIGetCursorInfo($hForm)

                If (IsArray($Data)) And ($Data[4] = $Area) Then
                    If Not BitAND(WinGetState($hForm), 8) Then
                        WinActivate($hForm)
                    EndIf
                    Return -1
                EndIf
        EndSwitch
    EndIf
    Return _WinAPI_CallNextHookEx($hHook, $iCode, $wParam, $lParam)
EndFunc   ;==>_MouseHook

Func OnAutoItExit()
    _WinAPI_UnhookWindowsHookEx($hHook)
    DllCallbackFree($hDll)
EndFunc   ;==>OnAutoItExit

WinAPIEx.au3

Edited May 24, 2010 by Yashied

XxShadowxX · June 5, 2010

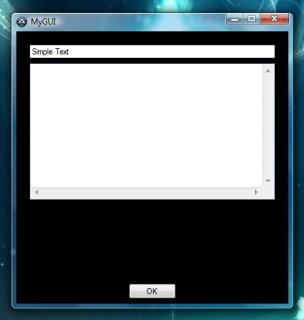

Hmm...your example doesn't work for me. I'm on Windows Vista (maybe the API changed between Vista and 7?) See attached.

MilesAhead · August 18, 2010

You can do the following trick.

Thanks for this Yashied. I used your code and example to provide an alternative Gui option for 7 users.

On Vista Glass, or if the option is disabled on 7, the Gui looks like this:

http://www.favessoft.com/Selector.jpg

but if the 7 user enabled the .ini option it uses your code:

http://www.favessoft.com/SelectorTrans.jpg

edit: I kludged it to make the text easier to read. A little cheesy but maybe I'll find a better way later.

Edited August 18, 2010 by MilesAhead

Sign In

How do I use DrawThemeTextEx to get glowing text on aero glass?

Recommended Posts

Vadersapien

Authenticity

GtaSpider

Vadersapien

Yashied

XxShadowxX

MilesAhead

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members

Browse

AutoIt Resources

Release

Beta
