DickG Posted December 10, 2013 Share Posted December 10, 2013 This is a really great UDF! Thank you very much!!! I managed to get it to work in my situation. But there's something I can't figure out how to do: I need the Y axis to show dollar amounts (up to maybe $100,000). But the labels are too narrow, so they are cut off on the left end. And they only show unformatted values (like 21560, which is hard to read). I would like to format the labels such as "$21,560". But when I format them, they are no longer real numbers, so it doesn't plot the values. Is there any way to show formatted values? Link to comment Share on other sites More sharing options...
RTFC Posted May 24, 2014 Share Posted May 24, 2014 (edited) Point of interest if using this very useful UDF to create multiple graphs in separate GUis simultaneously: The $aGraphArray that this UDF relies upon to keep track of a graph's properties does not store the GUI where that graph is defined as a control. Consequently, if you decide to change the X/Y scale later on for any graph except the last-defined one, you'll need to GUIswitch() to the appropriate GUI before calling _GraphGDIPlus_Set_Range#(), otherwise the new tickmark labels will be associated with the wrong graph. So if you, like me, are dealing with multiple dynamically updated graphs, you'll need to put in place some admin handling for that (in your own code). Just thought I'd mention it, as it might save you spending lots of time hunting a non-existent bug, as I just did. Edited May 24, 2014 by RTFC My Contributions and Wrappers Spoiler BitMaskSudokuSolver BuildPartitionTable CodeCrypter CodeScanner DigitalDisplay Eigen4AutoIt FAT Suite HighMem MetaCodeFileLibrary OSgrid Pool RdRand SecondDesktop SimulatedAnnealing Xbase I/O Link to comment Share on other sites More sharing options...
QuimiQ Posted March 4, 2015 Share Posted March 4, 2015 (edited) I got an error after only including your UDF (did not yet use any functions of it) Line 635: Const $SRCCOPY = 0x00CC0020 error: $SRCCOPY previously declared as a 'Const'. ok found the problem; $SRCCOPY is used in WindowsConstants.au3 which is used for extended GUI styles Edited March 4, 2015 by QuimiQ Link to comment Share on other sites More sharing options...
TheOnlyOne Posted June 14, 2015 Share Posted June 14, 2015 I got a problem when I try to use _GraphGDIPlus_Set_Range#() on the same graph multiple times(I only have one graph so what RTFC says above shouldn't be the problem ?) I have tried to clear it with _GraphGDIPlus_Clear() but this only removes the graph not the ticks. Is it possible to do this without destroying the graph and then recreating it? Link to comment Share on other sites More sharing options...
Blaxxun Posted March 26, 2016 Share Posted March 26, 2016 Just to keep this UDF up to date and working. I had to replace $ghGDIPDll with $__g_hGDIPDll since it got renamed. Now it works fine. expandcollapse popup;#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 ; #INDEX# =============================================================================== ; Title .........: GraphGDIPlus ; AutoIt Version: 3.3.0.0+ ; Language: English ; Description ...: A Graph control to draw line graphs, using GDI+, also double-buffered. ; Notes .........: ; ======================================================================================= ; #VARIABLES/INCLUDES# ================================================================== #include-once #include <GDIplus.au3> Global $aGraphGDIPlusaGraphArrayINTERNAL[1] ; ======================================================================================= ; #FUNCTION# ============================================================================ ; Name...........: _GraphGDIPlus_Create ; Description ...: Creates graph area, and prepares array of specified data ; Syntax.........: _GraphGDIPlus_Create($hWnd,$iLeft,$iTop,$iWidth,$iHeight,$hColorBorder = 0xFF000000,$hColorFill = 0xFFFFFFFF) ; Parameters ....: $hWnd - Handle to GUI ; $iLeft - left most position in GUI ; $iTop - top most position in GUI ; $iWidth - width of graph in pixels ; $iHeight - height of graph in pixels ; $hColorBorder - Color of graph border (ARGB) ; $hColorFill - Color of background (ARGB) ; Return values .: Returns array containing variables for subsequent functions... ; Returned Graph array is: ; [1] graphic control handle ; [2] left ; [3] top ; [4] width ; [5] height ; [6] x low ; [7] x high ; [8] y low ; [9] y high ; [10] x ticks handles ; [11] x labels handles ; [12] y ticks handles ; [13] y labels handles ; [14] Border Color ; [15] Fill Color ; [16] Bitmap Handle ; [17] Backbuffer Handle ; [18] Last used x pos ; [19] Last used y pos ; [20] Pen (main) Handle ; [21] Brush (fill) Handle ; [22] Pen (border) Handle ; [23] Pen (grid) Handle ; ======================================================================================= Func _GraphGDIPlus_Create($hWnd, $iLeft, $iTop, $iWidth, $iHeight, $hColorBorder = 0xFF000000, $hColorFill = 0xFFFFFFFF, $iSmooth = 2) Local $graphics, $bitmap, $backbuffer, $brush, $bpen, $gpen, $pen Local $ahTicksLabelsX[1] Local $ahTicksLabelsY[1] Local $ahTicksX[1] Local $ahTicksY[1] Local $aGraphArray[1] ;----- Set GUI transparency to SOLID (prevents GDI+ glitches) ----- ;WinSetTrans($hWnd, "", 255) - causes problems when more than 2 graphs used ;----- GDI+ Initiate ----- _GDIPlus_Startup() $graphics = _GDIPlus_GraphicsCreateFromHWND($hWnd) ;graphics area $bitmap = _GDIPlus_BitmapCreateFromGraphics($iWidth + 1, $iHeight + 1, $graphics);buffer bitmap $backbuffer = _GDIPlus_ImageGetGraphicsContext($bitmap) ;buffer area _GDIPlus_GraphicsSetSmoothingMode($backbuffer, $iSmooth) ;----- Set background Color ----- $brush = _GDIPlus_BrushCreateSolid($hColorFill) _GDIPlus_GraphicsFillRect($backbuffer, 0, 0, $iWidth, $iHeight, $brush) ;----- Set border Pen + color ----- $bpen = _GDIPlus_PenCreate($hColorBorder) _GDIPlus_PenSetEndCap($bpen, $GDIP_LINECAPROUND) ;----- Set Grid Pen + color ----- $gpen = _GDIPlus_PenCreate(0xFFf0f0f0) _GDIPlus_PenSetEndCap($gpen, $GDIP_LINECAPROUND) ;----- set Drawing Pen + Color ----- $pen = _GDIPlus_PenCreate() ;drawing pen initially black, user to set _GDIPlus_PenSetEndCap($pen, $GDIP_LINECAPROUND) _GDIPlus_GraphicsDrawRect($backbuffer, 0, 0, $iWidth, $iHeight, $pen) ;----- draw ----- _GDIPlus_GraphicsDrawImageRect($graphics, $bitmap, $iLeft, $iTop, $iWidth + 1, $iHeight + 1) ;----- register redraw ----- GUIRegisterMsg(0x0006, "_GraphGDIPlus_ReDraw") ;0x0006 = win activate GUIRegisterMsg(0x0003, "_GraphGDIPlus_ReDraw") ;0x0003 = win move ;----- prep + load array ----- Dim $aGraphArray[24] = ["", $graphics, $iLeft, $iTop, $iWidth, $iHeight, 0, 1, 0, 1, _ $ahTicksX, $ahTicksLabelsX, $ahTicksY, $ahTicksLabelsY, $hColorBorder, $hColorFill, _ $bitmap, $backbuffer, 0, 0, $pen, $brush, $bpen, $gpen] ;----- prep re-draw array for all graphs created ----- ReDim $aGraphGDIPlusaGraphArrayINTERNAL[UBound($aGraphGDIPlusaGraphArrayINTERNAL) + 1] $aGraphGDIPlusaGraphArrayINTERNAL[UBound($aGraphGDIPlusaGraphArrayINTERNAL) - 1] = $aGraphArray Return $aGraphArray EndFunc ;==>_GraphGDIPlus_Create Func _GraphGDIPlus_ReDraw($hWnd) ;----- Allows redraw of the GDI+ Image upon window min/maximize ----- Local $i _WinAPI_RedrawWindow($hWnd, 0, 0, 0x0100) For $i = 1 To UBound($aGraphGDIPlusaGraphArrayINTERNAL) - 1 If $aGraphGDIPlusaGraphArrayINTERNAL[$i] = 0 Then ContinueLoop _GraphGDIPlus_Refresh($aGraphGDIPlusaGraphArrayINTERNAL[$i]) Next EndFunc ;==>_GraphGDIPlus_ReDraw ; #FUNCTION# ============================================================================ ; Name...........: _GraphGDIPlus_Delete ; Description ...: Deletes previously created graph and related ticks/labels ; Syntax.........: _GraphGDIPlus_Delete($hWnd,ByRef $aGraphArray) ; Parameters ....: $hWnd - GUI handle ; $aGraphArray - the array returned from _GraphGDIPlus_Create ; $iKeepGDIPlus - if not zero, function will not _GDIPlus_Shutdown() ; ======================================================================================= Func _GraphGDIPlus_Delete($hWnd, ByRef $aGraphArray, $iKeepGDIPlus = 0) If IsArray($aGraphArray) = 0 Then Return Local $ahTicksX, $ahTicksLabelsX, $ahTicksY, $ahTicksLabelsY, $i, $aTemp ;----- delete x ticks/labels ----- $ahTicksX = $aGraphArray[10] $ahTicksLabelsX = $aGraphArray[11] For $i = 1 To (UBound($ahTicksX) - 1) GUICtrlDelete($ahTicksX[$i]) Next For $i = 1 To (UBound($ahTicksLabelsX) - 1) GUICtrlDelete($ahTicksLabelsX[$i]) Next ;----- delete y ticks/labels ----- $ahTicksY = $aGraphArray[12] $ahTicksLabelsY = $aGraphArray[13] For $i = 1 To (UBound($ahTicksY) - 1) GUICtrlDelete($ahTicksY[$i]) Next For $i = 1 To (UBound($ahTicksLabelsY) - 1) GUICtrlDelete($ahTicksLabelsY[$i]) Next ;----- delete graphic control ----- _GDIPlus_GraphicsDispose($aGraphArray[17]) _GDIPlus_BitmapDispose($aGraphArray[16]) _GDIPlus_GraphicsDispose($aGraphArray[1]) _GDIPlus_BrushDispose($aGraphArray[21]) _GDIPlus_PenDispose($aGraphArray[20]) _GDIPlus_PenDispose($aGraphArray[22]) _GDIPlus_PenDispose($aGraphArray[23]) If $iKeepGDIPlus = 0 Then _GDIPlus_Shutdown() _WinAPI_InvalidateRect($hWnd) ;----- remove form global redraw array ----- For $i = 1 To UBound($aGraphGDIPlusaGraphArrayINTERNAL) - 1 $aTemp = $aGraphGDIPlusaGraphArrayINTERNAL[$i] If IsArray($aTemp) = 0 Then ContinueLoop If $aTemp[1] = $aGraphArray[1] Then $aGraphGDIPlusaGraphArrayINTERNAL[$i] = 0 Next ;----- close array ----- $aGraphArray = 0 EndFunc ;==>_GraphGDIPlus_Delete ; #FUNCTION# ============================================================================ ; Name...........: _GraphGDIPlus_Clear ; Description ...: Clears graph content ; Syntax.........: _GraphGDIPlus_Clear(ByRef $aGraphArray) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; ======================================================================================= Func _GraphGDIPlus_Clear(ByRef $aGraphArray) If IsArray($aGraphArray) = 0 Then Return ;----- Set background Color ----- _GDIPlus_GraphicsFillRect($aGraphArray[17], 0, 0, $aGraphArray[4], $aGraphArray[5], $aGraphArray[21]) ;----- set border + Color ----- _GraphGDIPlus_RedrawRect($aGraphArray) EndFunc ;==>_GraphGDIPlus_Clear ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_Refresh ; Description ...: refreshes the graphic ; Syntax.........: _GraphGDIPlus_Refresh(ByRef $aGraphArray) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; ======================================================================================== Func _GraphGDIPlus_Refresh(ByRef $aGraphArray) If IsArray($aGraphArray) = 0 Then Return ;----- draw ----- _GDIPlus_GraphicsDrawImageRect($aGraphArray[1], $aGraphArray[16], $aGraphArray[2], _ $aGraphArray[3], $aGraphArray[4] + 1, $aGraphArray[5] + 1) EndFunc ;==>_GraphGDIPlus_Refresh ; #FUNCTION# ============================================================================ ; Name...........: _GraphGDIPlus_Set_RangeX ; Description ...: Allows user to set the range of the X axis and set ticks and rounding levels ; Syntax.........: _GraphGDIPlus_Set_RangeX(ByRef $aGraphArray,$iLow,$iHigh,$iXTicks = 1,$bLabels = 1,$iRound = 0) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; $iLow - the lowest value for the X axis (can be negative) ; $iHigh - the highest value for the X axis ; $iXTicks - [optional] number of ticks to show below axis, if = 0 then no ticks created ; $bLabels - [optional] 1=show labels, any other number=do not show labels ; $iRound - [optional] rounding level of label values ; ======================================================================================= Func _GraphGDIPlus_Set_RangeX(ByRef $aGraphArray, $iLow, $iHigh, $iXTicks = 1, $bLabels = 1, $iRound = 0) If IsArray($aGraphArray) = 0 Then Return Local $ahTicksX, $ahTicksLabelsX, $i ;----- load user vars to array ----- $aGraphArray[6] = $iLow $aGraphArray[7] = $iHigh ;----- prepare nested array ----- $ahTicksX = $aGraphArray[10] $ahTicksLabelsX = $aGraphArray[11] ;----- delete any existing ticks ----- For $i = 1 To (UBound($ahTicksX) - 1) GUICtrlDelete($ahTicksX[$i]) Next Dim $ahTicksX[1] ;----- create new ticks ----- For $i = 1 To $iXTicks + 1 ReDim $ahTicksX[$i + 1] $ahTicksX[$i] = GUICtrlCreateLabel("", (($i - 1) * ($aGraphArray[4] / $iXTicks)) + $aGraphArray[2], _ $aGraphArray[3] + $aGraphArray[5], 1, 5) GUICtrlSetBkColor(-1, 0x000000) GUICtrlSetState(-1, 128) Next ;----- delete any existing labels ----- For $i = 1 To (UBound($ahTicksLabelsX) - 1) GUICtrlDelete($ahTicksLabelsX[$i]) Next Dim $ahTicksLabelsX[1] ;----- create new labels ----- For $i = 1 To $iXTicks + 1 ReDim $ahTicksLabelsX[$i + 1] $ahTicksLabelsX[$i] = GUICtrlCreateLabel("", _ ($aGraphArray[2] + (($aGraphArray[4] / $iXTicks) * ($i - 1))) - (($aGraphArray[4] / $iXTicks) / 2), _ $aGraphArray[3] + $aGraphArray[5] + 10, $aGraphArray[4] / $iXTicks, 13, 1) GUICtrlSetBkColor(-1, -2) Next ;----- if labels are required, then fill ----- If $bLabels = 1 Then For $i = 1 To (UBound($ahTicksLabelsX) - 1) GUICtrlSetData($ahTicksLabelsX[$i], _ StringFormat("%." & $iRound & "f", _GraphGDIPlus_Reference_Pixel("p", (($i - 1) * ($aGraphArray[4] / $iXTicks)), _ $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]))) Next EndIf ;----- load created arrays back into array ----- $aGraphArray[10] = $ahTicksX $aGraphArray[11] = $ahTicksLabelsX EndFunc ;==>_GraphGDIPlus_Set_RangeX ; #FUNCTION# ============================================================================ ; Name...........: _GraphGDIPlus_Set_RangeY ; Description ...: Allows user to set the range of the Y axis and set ticks and rounding levels ; Syntax.........: _GraphGDIPlus_SetRange_Y(ByRef $aGraphArray,$iLow,$iHigh,$iYTicks = 1,$bLabels = 1,$iRound = 0) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; $iLow - the lowest value for the Y axis (can be negative) ; $iHigh - the highest value for the Y axis ; $iYTicks - [optional] number of ticks to show next to axis, if = 0 then no ticks created ; $bLabels - [optional] 1=show labels, any other number=do not show labels ; $iRound - [optional] rounding level of label values ; ======================================================================================= Func _GraphGDIPlus_Set_RangeY(ByRef $aGraphArray, $iLow, $iHigh, $iYTicks = 1, $bLabels = 1, $iRound = 0) If IsArray($aGraphArray) = 0 Then Return Local $ahTicksY, $ahTicksLabelsY, $i ;----- load user vars to array ----- $aGraphArray[8] = $iLow $aGraphArray[9] = $iHigh ;----- prepare nested array ----- $ahTicksY = $aGraphArray[12] $ahTicksLabelsY = $aGraphArray[13] ;----- delete any existing ticks ----- For $i = 1 To (UBound($ahTicksY) - 1) GUICtrlDelete($ahTicksY[$i]) Next Dim $ahTicksY[1] ;----- create new ticks ----- For $i = 1 To $iYTicks + 1 ReDim $ahTicksY[$i + 1] $ahTicksY[$i] = GUICtrlCreateLabel("", $aGraphArray[2] - 5, _ ($aGraphArray[3] + $aGraphArray[5]) - (($aGraphArray[5] / $iYTicks) * ($i - 1)), 5, 1) GUICtrlSetBkColor(-1, 0x000000) GUICtrlSetState(-1, 128) Next ;----- delete any existing labels ----- For $i = 1 To (UBound($ahTicksLabelsY) - 1) GUICtrlDelete($ahTicksLabelsY[$i]) Next Dim $ahTicksLabelsY[1] ;----- create new labels ----- For $i = 1 To $iYTicks + 1 ReDim $ahTicksLabelsY[$i + 1] $ahTicksLabelsY[$i] = GUICtrlCreateLabel("", $aGraphArray[2] - 40, _ ($aGraphArray[3] + $aGraphArray[5]) - (($aGraphArray[5] / $iYTicks) * ($i - 1)) - 6, 30, 13, 2) GUICtrlSetBkColor(-1, -2) Next ;----- if labels are required, then fill ----- If $bLabels = 1 Then For $i = 1 To (UBound($ahTicksLabelsY) - 1) GUICtrlSetData($ahTicksLabelsY[$i], StringFormat("%." & $iRound & "f", _GraphGDIPlus_Reference_Pixel("p", _ (($i - 1) * ($aGraphArray[5] / $iYTicks)), $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]))) Next EndIf ;----- load created arrays back into array ----- $aGraphArray[12] = $ahTicksY $aGraphArray[13] = $ahTicksLabelsY EndFunc ;==>_GraphGDIPlus_Set_RangeY ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_Plot_Start ; Description ...: Move starting point of plot ; Syntax.........: _GraphGDIPlus_Plot_Start(ByRef $aGraphArray,$iX,$iY) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; $iX - x value to start at ; $iY - y value to start at ; ======================================================================================== Func _GraphGDIPlus_Plot_Start(ByRef $aGraphArray, $iX, $iY) If IsArray($aGraphArray) = 0 Then Return ;----- MOVE pen to start point ----- $aGraphArray[18] = _GraphGDIPlus_Reference_Pixel("x", $iX, $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]) $aGraphArray[19] = _GraphGDIPlus_Reference_Pixel("y", $iY, $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]) EndFunc ;==>_GraphGDIPlus_Plot_Start ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_Plot_Line ; Description ...: draws straight line to x,y from previous point / starting point ; Syntax.........: _GraphGDIPlus_Plot_Line(ByRef $aGraphArray,$iX,$iY) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; $iX - x value to draw to ; $iY - y value to draw to ; ======================================================================================== Func _GraphGDIPlus_Plot_Line(ByRef $aGraphArray, $iX, $iY) If IsArray($aGraphArray) = 0 Then Return ;----- Draw line from previous point to new point ----- $iX = _GraphGDIPlus_Reference_Pixel("x", $iX, $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]) $iY = _GraphGDIPlus_Reference_Pixel("y", $iY, $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]) ;~ _GDIPlus_GraphicsDrawLine($aGraphArray[17], $aGraphArray[18], $aGraphArray[19], $iX, $iY, $aGraphArray[20]) DllCall($__g_hGDIPDll, "int", "GdipDrawLine", "handle", $aGraphArray[17], "handle", $aGraphArray[20], "float", $aGraphArray[18], "float", $aGraphArray[19], "float", $iX, "float", $iY) _GraphGDIPlus_RedrawRect($aGraphArray) ;----- save current as last coords ----- $aGraphArray[18] = $iX $aGraphArray[19] = $iY EndFunc ;==>_GraphGDIPlus_Plot_Line ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_Plot_Point ; Description ...: draws point at coords ; Syntax.........: _GraphGDIPlus_Plot_Point(ByRef $aGraphArray,$iX,$iY) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; $iX - x value to draw at ; $iY - y value to draw at ; ======================================================================================== Func _GraphGDIPlus_Plot_Point(ByRef $aGraphArray, $iX, $iY) If IsArray($aGraphArray) = 0 Then Return ;----- Draw point from previous point to new point ----- $iX = _GraphGDIPlus_Reference_Pixel("x", $iX, $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]) $iY = _GraphGDIPlus_Reference_Pixel("y", $iY, $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]) ;~ _GDIPlus_GraphicsDrawRect($aGraphArray[17], $iX-1, $iY-1, 2, 2, $aGraphArray[20]) DllCall($__g_hGDIPDll, "int", "GdipDrawRectangle", "handle", $aGraphArray[17], "handle", $aGraphArray[20], "float", $iX-1, "float", $iY-1,"float", 2, "float", 2) _GraphGDIPlus_RedrawRect($aGraphArray) ;----- save current as last coords ----- $aGraphArray[18] = $iX $aGraphArray[19] = $iY EndFunc ;==>_GraphGDIPlus_Plot_Point ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_Plot_Dot ; Description ...: draws single pixel dot at coords ; Syntax.........: _GraphGDIPlus_Plot_Dot(ByRef $aGraphArray,$iX,$iY) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; $iX - x value to draw at ; $iY - y value to draw at ; ======================================================================================== Func _GraphGDIPlus_Plot_Dot(ByRef $aGraphArray, $iX, $iY) If IsArray($aGraphArray) = 0 Then Return ;----- Draw point from previous point to new point ----- $iX = _GraphGDIPlus_Reference_Pixel("x", $iX, $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]) $iY = _GraphGDIPlus_Reference_Pixel("y", $iY, $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]) ;~ _GDIPlus_GraphicsDrawRect($aGraphArray[17], $iX, $iY, 1, 1, $aGraphArray[20]) ;draws 2x2 dot ?HOW to get 1x1 pixel????? DllCall($__g_hGDIPDll, "int", "GdipDrawRectangle", "handle", $aGraphArray[17], "handle", $aGraphArray[20], "float", $iX, "float", $iY,"float", 1, "float", 1) _GraphGDIPlus_RedrawRect($aGraphArray) ;----- save current as last coords ----- $aGraphArray[18] = $iX $aGraphArray[19] = $iY EndFunc ;==>_GraphGDIPlus_Plot_Dot ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_Set_PenColor ; Description ...: sets the Color for the next drawing ; Syntax.........: _GraphGDIPlus_Set_PenColor(ByRef $aGraphArray,$hColor,$hBkGrdColor = $GUI_GR_NOBKColor) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; $hColor - the Color of the next item (ARGB) ; ======================================================================================== Func _GraphGDIPlus_Set_PenColor(ByRef $aGraphArray, $hColor) If IsArray($aGraphArray) = 0 Then Return ;----- apply pen Color ----- _GDIPlus_PenSetColor($aGraphArray[20], $hColor) EndFunc ;==>_GraphGDIPlus_Set_PenColor ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_Set_PenSize ; Description ...: sets the pen for the next drawing ; Syntax.........: _GraphGDIPlus_Set_PenSize(ByRef $aGraphArray,$iSize = 1) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; $iSize - size of pen line ; ======================================================================================== Func _GraphGDIPlus_Set_PenSize(ByRef $aGraphArray, $iSize = 1) If IsArray($aGraphArray) = 0 Then Return ;----- apply pen size ----- _GDIPlus_PenSetWidth($aGraphArray[20], $iSize) EndFunc ;==>_GraphGDIPlus_Set_PenSize ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_Set_PenDash ; Description ...: sets the pen dash style for the next drawing ; Syntax.........: GraphGDIPlus_Set_PenDash(ByRef $aGraphArray,$iDash = 0) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; $iDash - style of dash, where: ; 0 = solid line ; 1 = simple dashed line ; 2 = simple dotted line ; 3 = dash dot line ; 4 = dash dot dot line ; ======================================================================================== Func _GraphGDIPlus_Set_PenDash(ByRef $aGraphArray, $iDash = 0) If IsArray($aGraphArray) = 0 Then Return Local $Style Switch $iDash Case 0 ;solid line _____ $Style = $GDIP_DASHSTYLESOLID Case 1 ;simple dash ----- $Style = $GDIP_DASHSTYLEDASH Case 2 ;simple dotted ..... $Style = $GDIP_DASHSTYLEDOT Case 3 ;dash dot -.-.- $Style = $GDIP_DASHSTYLEDASHDOT Case 4 ;dash dot dot -..-..-.. $Style = $GDIP_DASHSTYLEDASHDOTDOT EndSwitch ;----- apply pen dash ----- _GDIPlus_PenSetDashStyle($aGraphArray[20], $Style) EndFunc ;==>_GraphGDIPlus_Set_PenDash ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_Set_GridX ; Description ...: Adds X gridlines. ; Syntax.........: _GraphGDIPlus_Set_GridX(ByRef $aGraphArray, $Ticks=1, $hColor=0xf0f0f0) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; $Ticks - sets line at every nth unit assigned to axis ; $hColor - [optional] RGB value, defining Color of grid. Default is a light gray ; $hColorY0 - [optional] RGB value, defining Color of Y=0 line, Default black ; ======================================================================================= Func _GraphGDIPlus_Set_GridX(ByRef $aGraphArray, $Ticks = 1, $hColor = 0xFFf0f0f0, $hColorY0 = 0xFF000000) If IsArray($aGraphArray) = 0 Then Return ;----- Set gpen to user color ----- _GDIPlus_PenSetColor($aGraphArray[23], $hColor) ;----- draw grid lines ----- Select Case $Ticks > 0 For $i = $aGraphArray[6] To $aGraphArray[7] Step $Ticks If $i = Number($aGraphArray[6]) Or $i = Number($aGraphArray[7]) Then ContinueLoop _GDIPlus_GraphicsDrawLine($aGraphArray[17], _ _GraphGDIPlus_Reference_Pixel("x", $i, $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]), _ 1, _ _GraphGDIPlus_Reference_Pixel("x", $i, $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]), _ $aGraphArray[5] - 1, _ $aGraphArray[23]) Next EndSelect ;----- draw y=0 ----- _GDIPlus_PenSetColor($aGraphArray[23], $hColorY0) _GDIPlus_GraphicsDrawLine($aGraphArray[17], _ _GraphGDIPlus_Reference_Pixel("x", 0, $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]), _ 1, _ _GraphGDIPlus_Reference_Pixel("x", 0, $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]), _ $aGraphArray[5] - 1, _ $aGraphArray[23]) _GDIPlus_GraphicsDrawLine($aGraphArray[17], _ 1, _ _GraphGDIPlus_Reference_Pixel("y", 0, $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]), _ $aGraphArray[4] - 1, _ _GraphGDIPlus_Reference_Pixel("y", 0, $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]), _ $aGraphArray[23]) _GraphGDIPlus_RedrawRect($aGraphArray) ;----- re-set to user specs ----- _GDIPlus_PenSetColor($aGraphArray[23], $hColor) ;set Color back to user def EndFunc ;==>_GraphGDIPlus_Set_GridX ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_Set_GridY ; Description ...: Adds Y gridlines. ; Syntax.........: _GraphGDIPlus_Set_GridY(ByRef $aGraphArray, $Ticks=1, $hColor=0xf0f0f0) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; $Ticks - sets line at every nth unit assigned to axis ; $hColor - [optional] RGB value, defining Color of grid. Default is a light gray ; $hColorX0 - [optional] RGB value, defining Color of X=0 line, Default black ; ======================================================================================= Func _GraphGDIPlus_Set_GridY(ByRef $aGraphArray, $Ticks = 1, $hColor = 0xFFf0f0f0, $hColorX0 = 0xFF000000) If IsArray($aGraphArray) = 0 Then Return ;----- Set gpen to user color ----- _GDIPlus_PenSetColor($aGraphArray[23], $hColor) ;----- draw grid lines ----- Select Case $Ticks > 0 For $i = $aGraphArray[8] To $aGraphArray[9] Step $Ticks If $i = Number($aGraphArray[8]) Or $i = Number($aGraphArray[9]) Then ContinueLoop _GDIPlus_GraphicsDrawLine($aGraphArray[17], _ 1, _ _GraphGDIPlus_Reference_Pixel("y", $i, $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]), _ $aGraphArray[4] - 1, _ _GraphGDIPlus_Reference_Pixel("y", $i, $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]), _ $aGraphArray[23]) Next EndSelect ;----- draw abcissa/ordinate ----- _GDIPlus_PenSetColor($aGraphArray[23], $hColorX0) _GDIPlus_GraphicsDrawLine($aGraphArray[17], _ _GraphGDIPlus_Reference_Pixel("x", 0, $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]), _ 1, _ _GraphGDIPlus_Reference_Pixel("x", 0, $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]), _ $aGraphArray[5] - 1, _ $aGraphArray[23]) _GDIPlus_GraphicsDrawLine($aGraphArray[17], _ 1, _ _GraphGDIPlus_Reference_Pixel("y", 0, $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]), _ $aGraphArray[4] - 1, _ _GraphGDIPlus_Reference_Pixel("y", 0, $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]), _ $aGraphArray[23]) _GraphGDIPlus_RedrawRect($aGraphArray) ;----- re-set to user specs ----- _GDIPlus_PenSetColor($aGraphArray[23], $hColor) ;set Color back to user def EndFunc ;==>_GraphGDIPlus_Set_GridY ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_RedrawRect ; Description ...: INTERNAL FUNCTION - Re-draws the border ; Syntax.........: _GraphGDIPlus_RedrawRect(ByRef $aGraphArray) ; Parameters ....: $aGraphArray - the array returned from _GraphGDIPlus_Create ; Notes..........: This prevents drawing over the border of the graph area ; ========================================================================================= Func _GraphGDIPlus_RedrawRect(ByRef $aGraphArray) If IsArray($aGraphArray) = 0 Then Return ;----- draw border ----- _GDIPlus_GraphicsDrawRect($aGraphArray[17], 0, 0, $aGraphArray[4], $aGraphArray[5], $aGraphArray[22]) ;draw border EndFunc ;==>_GraphGDIPlus_RedrawRect ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_Reference_Pixel ; Description ...: INTERNAL FUNCTION - performs pixel reference calculations ; Syntax.........: _GraphGDIPlus_Reference_Pixel($iType,$iValue,$iLow,$iHigh,$iTotalPixels) ; Parameters ....: $iType - "x"=x axis pix, "y" = y axis pix, "p"=value from pixels ; $iValue - pixels reference or value ; $iLow - lower limit of axis ; $iHigh - upper limit of axis ; $iTotalPixels - total number of pixels in range (either width or height) ; ========================================================================================= Func _GraphGDIPlus_Reference_Pixel($iType, $iValue, $iLow, $iHigh, $iTotalPixels) ;----- perform pixel reference calculations ----- Switch $iType Case "x" Return (($iTotalPixels / ($iHigh - $iLow)) * (($iHigh - $iLow) * (($iValue - $iLow) / ($iHigh - $iLow)))) Case "y" Return ($iTotalPixels - (($iTotalPixels / ($iHigh - $iLow)) * (($iHigh - $iLow) * (($iValue - $iLow) / ($iHigh - $iLow))))) Case "p" Return ($iValue / ($iTotalPixels / ($iHigh - $iLow))) + $iLow EndSwitch EndFunc ;==>_GraphGDIPlus_Reference_Pixel ; #FUNCTION# ============================================================================= ; Name...........: _GraphGDIPlus_SaveImage ; Description ...: INTERNAL FUNCTION - save drawn image to file ; Syntax.........: _GraphGDIPlus_SaveImage($aGraphArray, $file) ; Parameters ....: ByRef $aGraphArray - the array returned from _GraphGDIPlus_Create ; $file - filename ; Autor .........: UEZ ; ========================================================================================= Func _GraphGDIPlus_SaveImage(ByRef $aGraphArray, $file) If IsArray($aGraphArray) = 0 Then Return _GDIPlus_ImageSaveToFile($aGraphArray[16], $file) If @error Then Return SetError(1, 0, 0) Return 1 EndFunc ;==>_GraphGDIPlus_SaveImage Func _GraphGDIPlus_DrawText(ByRef $aGraphArray, $sString, $iX, $iY, $iBrushColor = 0xFF000000, $sFont = "Arial", $iFontSize = 12, $iStyle = 0) If IsArray($aGraphArray) = 0 Then Return Local $hBrush = _GDIPlus_BrushCreateSolid($iBrushColor) Local $hFormat = _GDIPlus_StringFormatCreate() Local $hFamily = _GDIPlus_FontFamilyCreate($sFont) Local $hFont = _GDIPlus_FontCreate($hFamily, $iFontSize, $iStyle) Local $tLayout = _GDIPlus_RectFCreate($iX, $iY, 0, 0) _GDIPlus_GraphicsDrawStringEx($aGraphArray[17], $sString, $hFont, $tLayout, $hFormat, $hBrush) _GDIPlus_FontDispose($hFont) _GDIPlus_FontFamilyDispose($hFamily) _GDIPlus_StringFormatDispose($hFormat) _GDIPlus_BrushDispose($hBrush) Return 1 EndFunc ;==>_GraphGDIPlus_DrawText AnonymousX 1 Link to comment Share on other sites More sharing options...
Valnurat Posted May 24, 2016 Share Posted May 24, 2016 How can I not have any numbers showing on graph at x/y? Yours sincerely Kenneth. Link to comment Share on other sites More sharing options...
badeend Posted February 6, 2018 Share Posted February 6, 2018 Hi, Anyone can help me to use time and date as labels for the x-axis? Can't get it to work. Thanks! Link to comment Share on other sites More sharing options...
AnonymousX Posted September 14, 2018 Share Posted September 14, 2018 (edited) On 2/20/2010 at 9:49 AM, andybiochem said: I'm having an issue where I took your example and increased the Y-axis to 30,000 and now the number gets cut off while drawing so that you can't see the full number (looks like 0000.0) When I try to increase the _GraphGDIPlus_Create size it just expands how much space is taken up along the X axis. When trying to increase Padding to move text over more, the right portion of my graph starts moving off screen from window, but left portion with the axis numbering never becomes more visible. I hope that makes sense.... I'm kind of new at this stuff, don't know proper language to use. Easier to see visually. Seems like there is no way to make larger axis numbers fit into the window space. expandcollapse popup#include "GraphGDIPlus.au3" #include <Array.au3> #include <MsgBoxConstants.au3> Opt("GUIOnEventMode", 1) ; Create 2D array to display Global $aArray_2D[1000][2] For $i = 0 To UBound($aArray_2D) - 1 $aArray_2D[$i][0] = $i For $j = 0 To UBound($aArray_2D, 2) - 1 $aArray_2D[$i][1] = $i^4 Next Next $aArray_2D[5][1] = 10 _ArrayDisplay($aArray_2D) $GUI = GUICreate("",600,600) GUISetOnEvent(-3,"_Exit") GUISetState() ;----- Create Graph area ----- $Graph = _GraphGDIPlus_Create($GUI,70,30,510,520,0xFF000000,0xFF88B3DD) Global $iXRange=50,$iYRange=30000 ;----- Set X axis range ----- _GraphGDIPlus_Set_RangeX($Graph,0,$iXRange,10,1,1) _GraphGDIPlus_Set_RangeY($Graph,0,$iYRange,10,1,1) ;----- Set Y axis range ----- _GraphGDIPlus_Set_GridX($Graph,1,0xFF6993BE) _GraphGDIPlus_Set_GridY($Graph,1,0xFF6993BE) _GraphGDIPlus_Set_PenSize($Graph,1) _GraphGDIPlus_Plot_Start($Graph,-$iXRange,-$iYRange) _Draw_Graph() While 1 Sleep(100) WEnd Func _Draw_Graph() ;----- Set line color and size ----- _GraphGDIPlus_Set_PenColor($Graph,0xFF0000FF) _GraphGDIPlus_Set_PenSize($Graph,1) ;----- draw lines ----- $First = True For $i = 0 to UBound($aArray_2D)-1 Step 1 If $First = True Then _GraphGDIPlus_Plot_Start($Graph,$aArray_2D[$i][0],$aArray_2D[$i][1]) $First = False _GraphGDIPlus_Plot_Line($Graph,$aArray_2D[$i][0],$aArray_2D[$i][1]) _GraphGDIPlus_Refresh($Graph) Next EndFunc Func _Exit() ;----- close down GDI+ and clear graphic ----- _GraphGDIPlus_Delete($GUI,$Graph) Exit EndFunc Edited September 14, 2018 by AnonymousX Link to comment Share on other sites More sharing options...
AnonymousX Posted September 14, 2018 Share Posted September 14, 2018 (edited) Sorry ignore me, got my answer $ghGDIPDll needs to be changed to $__g_hGDIPDll Thanks Blaxxun Edited September 14, 2018 by AnonymousX Link to comment Share on other sites More sharing options...
notsure Posted June 13, 2019 Share Posted June 13, 2019 (edited) On 12/8/2013 at 3:51 AM, AZJIO said: Examples, 14 pieces, 2.75 KB, Ru GraphGDIPlus_Example.7z Genius, can you please comment in english, all i get is this; ; Óñòàíàâëèâàåò ñåòêó ïî îñÿì XY _GraphGDIPlus_Set_GridX($aGraph, 1, 0xFF6C6342) _GraphGDIPlus_Set_GridY($aGraph, $iMax / 15, 0xFF6C6342) ; Ðèñóåò ãðàôèê _GraphGDIPlus_Set_PenColor($aGraph, 0xFF00FFFF) ; Çàäà¸ò öâåò ëèíèè ãðàôèêà For $i = 0 To 30 _GraphGDIPlus_Plot_Point($aGraph, $i, $i / 3 + 1.5) ; Çàäà¸ò ñëåäóþùóþ òî÷êó Next Englisch would be very welcome here. Edited June 13, 2019 by notsure Link to comment Share on other sites More sharing options...
AZJIO Posted June 14, 2019 Share Posted June 14, 2019 19 hours ago, notsure said: Englisch would be very welcome here. I converted to utf-8. You can now use Google Translator. Download QTranslate GraphGDIPlus_Example.7z My other projects or all Link to comment Share on other sites More sharing options...
notsure Posted June 14, 2019 Share Posted June 14, 2019 2 hours ago, AZJIO said: I converted to utf-8. You can now use Google Translator. Download QTranslate GraphGDIPlus_Example.7z 2.9 kB · 1 download Nice thanks. are you able to make an example of something like this? I dont know how to approach Link to comment Share on other sites More sharing options...

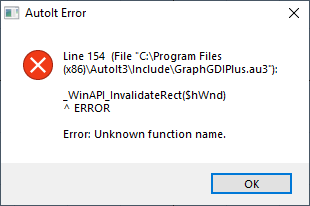

cetipabo Posted July 25, 2021 Share Posted July 25, 2021 (edited) Hello, i tried the example in the first post, and of course i updated the udf lilke mentioned by @Blaxxun here and when i close the window i 'm getting this error (i'm using autoit 3.3.14.5 and the function exists) : Edited July 25, 2021 by cetipabo Link to comment Share on other sites More sharing options...
KaFu Posted July 25, 2021 Share Posted July 25, 2021 Adding #include <WinAPISysWin.au3> to the top of the script or UDF should fix this. OS: Win10-22H2 - 64bit - German, AutoIt Version: 3.3.16.1, AutoIt Editor: SciTE, Website: https://funk.eu AMT - Auto-Movie-Thumbnailer (2024-Oct-13) BIC - Batch-Image-Cropper (2023-Apr-01) COP - Color Picker (2009-May-21) DCS - Dynamic Cursor Selector (2024-Oct-13) HMW - Hide my Windows (2024-Oct-19) HRC - HotKey Resolution Changer (2012-May-16) ICU - Icon Configuration Utility (2018-Sep-16) SMF - Search my Files (2024-Oct-20) - THE file info and duplicates search tool SSD - Set Sound Device (2017-Sep-16) Link to comment Share on other sites More sharing options...
cetipabo Posted July 25, 2021 Share Posted July 25, 2021 Thank you @KaFu Link to comment Share on other sites More sharing options...
cetipabo Posted July 25, 2021 Share Posted July 25, 2021 (edited) Well, i have another problem now, with the grids. in my example below, i'm supposed to have a light grey background with a blue grid, but because of the high amount in Rangex (4000) the backgroung is filled in blue, is it a bug in the UDF or i forgot something ? #include "GraphGDIPlus.au3" #include <WinAPISysWin.au3> Opt("GUIOnEventMode", 1) $GUI = GUICreate("",900,600) GUISetOnEvent(-3,"_Exit") GUISetState() ;----- Create Graph area ----- $Graph = _GraphGDIPlus_Create($GUI,40,30,830,520,0xFF000000,0xFFD6D6D6) _GraphGDIPlus_Set_RangeX($Graph,0,4000,17,1,0) _GraphGDIPlus_Set_RangeY($Graph,-100,0,20,1,0) _GraphGDIPlus_Set_GridX($Graph,1,0xFF6993BE) _GraphGDIPlus_Set_GridY($Graph,1,0xFF6993BE) ;----- Draw the graph ----- _Draw_Graph() While 1 Sleep(100) WEnd Func _Draw_Graph() _GraphGDIPlus_Refresh($Graph) EndFunc Func _Exit() ;----- close down GDI+ and clear graphic ----- _GraphGDIPlus_Delete($GUI,$Graph) Exit EndFunc Edited July 25, 2021 by cetipabo Link to comment Share on other sites More sharing options...
cetipabo Posted July 26, 2021 Share Posted July 26, 2021 (edited) Finaly i found, i just have to increase the value, i thought 1 was only to enable the ticks 😄 but you can set the amount of ticks you want, so i just changed the parameters like this, and now it works, i can see the grid. _GraphGDIPlus_Set_GridX($Graph,50,0xFF6993BE) _GraphGDIPlus_Set_GridY($Graph,5,0xFF6993BE) Edited July 27, 2021 by cetipabo Link to comment Share on other sites More sharing options...
l4tran Posted January 20, 2023 Share Posted January 20, 2023 Hi I'm trying to modify the UDF to output colours depending on the Y input data. I'm modifying the colour using RGB Dim $aColor[3] = [255, 255, 0] and then converting that into Hex using _ColorSetRGB($aColor) function to feed into $hPen = _GDIPlus_PenCreate(). What am I doing wrong? Func _GraphGDIPlus_Plot_Point(ByRef $aGraphArray, $iX, $iY) If IsArray($aGraphArray) = 0 Then Return $hexcolour=getRGB($iY,0,$aGraphArray[9]) $hPen = _GDIPlus_PenCreate($hexcolour, 2) ;----- Draw point from previous point to new point ----- $iX = _GraphGDIPlus_Reference_Pixel("x", $iX, $aGraphArray[6], $aGraphArray[7], $aGraphArray[4]) $iY = _GraphGDIPlus_Reference_Pixel("y", $iY, $aGraphArray[8], $aGraphArray[9], $aGraphArray[5]) $hPen1 = _GDIPlus_PenCreate(_StringToHex("000255000"), 2) _GDIPlus_GraphicsDrawRect($aGraphArray[17], $iX - 1, $iY - 1, 2, 2, $hPen) _GraphGDIPlus_RedrawRect($aGraphArray) ;----- save current as last coords ----- $aGraphArray[18] = $iX $aGraphArray[19] = $iY EndFunc ;==>_GraphGDIPlus_Plot_Point Func getRGB($i,$min,$max) $i*=100 $max*=100 if $i < 0 then $i *= -1 if $i > $max then Return Dim $aColor[3] = [255, 255, 0] if $i < $max/2 Then $aColor[0] = Map($i,$min,$max/2,0,255) if $i > $max then $aColor[1] = Map($i,$max/2,$max,255,0) ConsoleWrite(" Red=" & Hex($aColor[0], 2) & " Green=" & Hex($aColor[1], 2) & " Blue=" & Hex($aColor[2], 2) & " Color=" & Hex(_ColorSetRGB($aColor)) & @CRLF) Return _ColorSetRGB($aColor) EndFunc ;==>getRGB Func Map($iValue, $iFromLow, $iFromHigh, $iToLow, $iToHigh) Return round(($iValue - $iFromLow) * ($iToHigh - $iToLow) / ($iFromHigh - $iFromLow) + $iTolow,0) EndFunc Link to comment Share on other sites More sharing options...
Dan_555 Posted January 20, 2023 Share Posted January 20, 2023 (edited) The color format for _GDIPlus_PenCreate("") should look something like "0xFF00FF00" your function is creating a number 0000FF00 therefore need you'll need to add the "0x" in front of it. the 2 bytes after 0x are the alpha channel. If this is set to 00 then there will be no line, as it is set to transparent, so you will need to change the value to "FF" Moreover, your function is returning the array. replace the return statement of the getRGB function with this: Return "0xff" & Hex($aColor[0], 2) & Hex($aColor[1], 2) & Hex($aColor[1], 2) The $hPen1 = _GDIPlus_PenCreate(_StringToHex("000255000"), 2) Does not look right, either. You should use "0xFF" & Hex("000",2) & Hex("255",2) & Hex("000",2) instead of _StringToHex. Edited January 20, 2023 by Dan_555 Some of my script sourcecode Link to comment Share on other sites More sharing options...
l4tran Posted January 20, 2023 Share Posted January 20, 2023 1 hour ago, Dan_555 said: Return "0xff" & Hex($aColor[0], 2) & Hex($aColor[1], 2) & Hex($aColor[1], 2) Thanks that works. Link to comment Share on other sites More sharing options...
