Hi Maybe I am just being silly, but I don't understand what is supposed to happen here. ::/html/functions/GUICreate.htm GuiCreate from the Help file has 2 examples. Specifically, the 2nd example creates a ChildGui. Or so it says. I do not see this on screen. $hGUI gets created, no problem. Local $hChild = GUICreate("ChildGui", 10, 10, 20, 20, $WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $hGUI) What exactly does this line do? Should I see it on screen? Skysnake

#include <GUIConstantsEx.au3> #include "GUIExtender.au3" $hGUI = GUICreate("Move Example", 250, 230) GUICtrlCreateGroup(" Choose Orientation ", 10, 10, 230, 80) $cRadio_Horz = GUICtrlCreateRadio(" Horizontal ", 20, 30, 100, 20) GUICtrlSetState(-1, $GUI_CHECKED) $cRadio_Vert = GUICtrlCreateRadio(" Vertical ", 20, 60, 100, 20) GUICtrlCreateGroup(" Choose Move Style ", 10, 100, 230, 110) $cRadio_0 = GUICtrlCreateRadio(" Fix Left ", 20, 120, 100, 20) $cRadio_1 = GUICtrlCreateRadio(" Fix Centre ", 20, 150, 100, 20) $cRadio_2 = GUICtrlCreateRadio(" Fix Right ", 20, 180, 100, 20) GUICtrlCreateGroup("", -99, -99, 1, 1) GUISetState() While 1 Switch GUIGetMsg() Case $GUI_EVENT_CLOSE Exit Case $cRadio_Horz GUICtrlSetData($cRadio_0, " Fix Left ") GUICtrlSetState($cRadio_0, $GUI_UNCHECKED) GUICtrlSetState($cRadio_1, $GUI_UNCHECKED) GUICtrlSetData($cRadio_2, " Fix Right ") GUICtrlSetState($cRadio_2, $GUI_UNCHECKED) Case $cRadio_Vert GUICtrlSetData($cRadio_0, " Fix Top ") GUICtrlSetState($cRadio_0, $GUI_UNCHECKED) GUICtrlSetState($cRadio_1, $GUI_UNCHECKED) GUICtrlSetData($cRadio_2, " Fix Bottom ") GUICtrlSetState($cRadio_2, $GUI_UNCHECKED) Case $cRadio_0 _Create_GUI(0) Case $cRadio_1 _Create_GUI(1) Case $cRadio_2 _Create_GUI(2) EndSwitch WEnd Func _Create_GUI($iMove) Local $sTitle Switch $iMove Case 0 If GUICtrlRead($cRadio_Horz) = 1 Then $sTitle = "Fixed Left" Else $sTitle = "Fixed Top" EndIf Case 1 $sTitle = "Fixed Centre" Case 2 If GUICtrlRead($cRadio_Horz) = 1 Then $sTitle = "Fixed Right" Else $sTitle = "Fixed Bottom" EndIf EndSwitch GUISetState(@SW_HIDE, $hGUI) $hGUI_Ex = GUICreate($sTitle, 500, 500) If GUICtrlRead($cRadio_Horz) = 1 Then _GUIExtender_Init($hGUI_Ex, 1, $iMove) _GUIExtender_Section_Create($hGUI_Ex, 0, 250) _GUIExtender_Section_Activate($hGUI_Ex, 2, "", "", 220, 10, 20, 20) _GUIExtender_Section_Create($hGUI_Ex, 250, 250) GUICtrlCreateLabel("", 250, 0, 250, 500) GUICtrlSetBkColor(-1, 0xFFCCCC) _GUIExtender_Section_Create($hGUI_Ex, -99) Else _GUIExtender_Init($hGUI_Ex, 0, $iMove) _GUIExtender_Section_Create($hGUI_Ex, 250, 0) _GUIExtender_Section_Activate($hGUI_Ex, 2, "", "", 470, 220, 20, 20) _GUIExtender_Section_Create($hGUI_Ex, 250, 250) GUICtrlCreateLabel("", 0, 250, 500, 250) GUICtrlSetBkColor(-1, 0xFFCCCC) _GUIExtender_Section_Create($hGUI_Ex, -99) EndIf _GUIExtender_Section_Action($hGUI_Ex, 2, False) GUISetState() While 1 $aMsg = GUIGetMsg(1) Switch $aMsg[0] Case $GUI_EVENT_CLOSE GUISetState(@SW_SHOW, $hGUI) GUIDelete($hGUI_Ex) _GUIExtender_Clear($hGUI_Ex) ExitLoop EndSwitch _GUIExtender_EventMonitor($aMsg[1], $aMsg[0]) ; Check for click on Action control WEnd EndFunc I am trying to implement 2 side window toggle hide and show with 2 different menu. can someone give me some direction thanks

Hello, i was working in two tipes of design have difirent problems for the same design 1st one i was making child gui for all tabs and sub tabs -problems: to big the code, for the tab1 its go back, but tab 2 doesn t move if for item 3, but i have to declarate 20 child guis in the end if it of course not now 2nd one i make child guid only for the sub tabs problems: doesnt go back from tab 1 to tab, and from tab2 to tab1, wen enter in tab1 doesnt charge the buttons, only if i click in outher tab item and go back the button appear CODE 1 - BIG MESSI #include <GuiTab.au3> #include <WindowsConstants.au3> #include <GUIConstantsEx.au3> $GUI = GUICreate("", 450, 600, 0, 0); BitOR($WS_SIZEBOX, $WS_MINIMIZEBOX)) ;GUICtrlCreateMenu("") ;GUISetBkColor(0x940F1B) GUISetIcon("hunosicon.ico") $Pic1 = GUICtrlCreatePic("img\App\barra.jpg", 0, 0, 450, 120) $Button1 = GUICtrlCreateButton("FIRST TAB ITEM A", 0, 580, 450, 20) $Tab = GUICtrlCreateTab(1,120) GUICtrlCreateTabItem("A") ;GUICtrlSetState(-1, $GUI_SHOW) GUICtrlCreateTabItem("B") GUICtrlCreateTabItem("C") GUICtrlCreateTabItem("D") GUICtrlCreateTabItem("E") GUICtrlCreateTabItem("") GUISetState() ; //////////////////////////////A\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ $GUI_Child_1 = GUICreate("", 450, 440, 0, 140, BitOR($WS_POPUP, 0), $WS_EX_MDICHILD, $GUI) GUISetBkColor(0xE0A652) GUISetState(@SW_SHOW) ; //////////////////////////////B\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ $GUI_Child_2 = GUICreate("", 450, 440, 0, 140, BitOR($WS_POPUP, 1), $WS_EX_MDICHILD, $GUI) GUISetBkColor(0xAAAAAAA) GUISetState(@SW_HIDE) ; //////////////////////////////C\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ $GUI_Child_3 = GUICreate("", 445, 440, 0, 140, BitOR($WS_POPUP, $WS_BORDER), $WS_EX_MDICHILD, $GUI) GUISetBkColor(0xAAAEEAA) GUISetState(@SW_HIDE) ; //////////////////////////////D\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ $GUI_Child_4 = GUICreate("", 445, 440, 0, 120, BitOR($WS_POPUP, $WS_BORDER), $WS_EX_MDICHILD, $GUI) GUISetBkColor(0xAAAEEAA) $Tab1 = GUICtrlCreateTab(0,0,455,440,$tcs_buttons) _GUICtrlTab_SetBkColor($GUI_Child_4, $Tab1, 0xFFCCCC) GUICtrlCreateTabItem("<----") GUICtrlCreateTabItem("11") GUICtrlCreateTabItem("22") GUICtrlCreateTabItem("33") GUICtrlCreateTabItem("44") GUICtrlCreateTabItem("55") GUICtrlCreateTabItem("66") GUICtrlCreateTabItem("") GUISetState(@SW_HIDE) ; //////////////////////////////E\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ $GUI_Child_5 = GUICreate("", 445, 440, 0, 140, BitOR($WS_POPUP, $WS_BORDER), $WS_EX_MDICHILD, $GUI) GUISetBkColor(0xAAAEEAA) GUISetState(@SW_HIDE) ; //////////////////////////////11\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ $GUI_Child_6 = GUICreate("", 445, 440, 0, 120, BitOR($WS_POPUP, $WS_BORDER), $WS_EX_MDICHILD, $GUI) GUISetBkColor(0xAAAE6AA) $Tab2 = GUICtrlCreateTab(0,0,455,440,$tcs_buttons) _GUICtrlTab_SetBkColor($GUI_Child_6, $Tab2, 0xFFAACC) GUICtrlCreateTabItem("<----") GUICtrlCreateTabItem("H2O") GUICtrlCreateTabItem("CO2") GUICtrlCreateTabItem("H2") GUICtrlCreateTabItem("O2") GUICtrlCreateTabItem("") GUISetState(@SW_HIDE) ; //////////////////////////////22\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ $GUI_Child_7 = GUICreate("", 445, 440, 0, 140, BitOR($WS_POPUP, $WS_BORDER), $WS_EX_MDICHILD, $GUI) GUISetBkColor(0xAAAEEAA) GUISetState(@SW_HIDE) While 1 $msg = GUIGetMsg() Switch $msg Case -3 Exit Case $Tab $SelTab = _GUICtrlTab_GetCurSel($Tab) _GUICtrlTab_SetCurSel($Tab1, 2) ;_GUICtrlTab_SetCurSel($Tab2, 1) Switch $SelTab Case 0 ;A GUISetState(@SW_HIDE,$GUI_Child_7) GUISetState(@SW_HIDE,$GUI_Child_6) GUISetState(@SW_HIDE,$GUI_Child_5) GUISetState(@SW_HIDE,$GUI_Child_4) GUISetState(@SW_HIDE,$GUI_Child_3) GUISetState(@SW_HIDE,$GUI_Child_2) GUISetState(@SW_SHOW,$GUI_Child_1) Case 1 ;B GUISetState(@SW_HIDE,$GUI_Child_7) GUISetState(@SW_HIDE,$GUI_Child_6) GUISetState(@SW_HIDE,$GUI_Child_5) GUISetState(@SW_HIDE,$GUI_Child_1) GUISetState(@SW_SHOW,$GUI_Child_2) GUISetState(@SW_HIDE,$GUI_Child_3) GUISetState(@SW_HIDE,$GUI_Child_4) Case 2 ;C GUISetState(@SW_HIDE,$GUI_Child_7) GUISetState(@SW_HIDE,$GUI_Child_6) GUISetState(@SW_HIDE,$GUI_Child_5) GUISetState(@SW_HIDE,$GUI_Child_4) GUISetState(@SW_SHOW,$GUI_Child_3) GUISetState(@SW_HIDE,$GUI_Child_2) GUISetState(@SW_HIDE,$GUI_Child_1) Case 3 ;D GUISetState(@SW_HIDE,$GUI_Child_7) GUISetState(@SW_HIDE,$GUI_Child_6) GUISetState(@SW_HIDE,$GUI_Child_5) GUISetState(@SW_SHOW,$GUI_Child_4) GUISetState(@SW_HIDE,$GUI_Child_3) GUISetState(@SW_HIDE,$GUI_Child_2) GUISetState(@SW_HIDE,$GUI_Child_1) Case 4 ;E GUISetState(@SW_HIDE,$GUI_Child_7) GUISetState(@SW_HIDE,$GUI_Child_6) GUISetState(@SW_SHOW,$GUI_Child_5) GUISetState(@SW_HIDE,$GUI_Child_4) GUISetState(@SW_HIDE,$GUI_Child_3) GUISetState(@SW_HIDE,$GUI_Child_2) GUISetState(@SW_HIDE,$GUI_Child_1) EndSwitch Case $Tab1 ; NUMBERS Tab $SelTab1 = _GUICtrlTab_GetCurSel($Tab1) _GUICtrlTab_SetCurSel($Tab2, 1) Switch $SelTab1 Case 0 _GUICtrlTab_ClickTab($Tab, 0, "left", False, 1, 100) Case 1 ;11 GUISetState(@SW_HIDE,$GUI_Child_7) GUISetState(@SW_SHOW,$GUI_Child_6) GUISetState(@SW_HIDE,$GUI_Child_5) GUISetState(@SW_HIDE,$GUI_Child_4) GUISetState(@SW_HIDE,$GUI_Child_3) GUISetState(@SW_HIDE,$GUI_Child_2) GUISetState(@SW_HIDE,$GUI_Child_1) Case 2; 22 GUISetState(@SW_SHOW,$GUI_Child_7) GUISetState(@SW_HIDE,$GUI_Child_6) GUISetState(@SW_HIDE,$GUI_Child_5) GUISetState(@SW_HIDE,$GUI_Child_4) GUISetState(@SW_HIDE,$GUI_Child_3) GUISetState(@SW_HIDE,$GUI_Child_2) GUISetState(@SW_HIDE,$GUI_Child_1) EndSwitch Case $Tab2 ; TABLE PER $SelTab2 = _GUICtrlTab_GetCurSel($Tab2) ;_GUICtrlTab_SetCurSel($Tab1, 2) Switch $SelTab2 Case 0 ;MsgBox("0", "tttt", "hehhheh") _GUICtrlTab_ClickTab($Tab, 3, "left", False, 1, 100); IF I CHANGE TO 2 IT MOVE EndSwitch Case $Button1 _GUICtrlTab_ClickTab($Tab, 0, "left", False, 1, 100) EndSwitch WEnd Func _GUICtrlTab_SetBkColor($hWnd, $hSysTab32, $sBkColor) Local $aTabPos = ControlGetPos($hWnd, "", $hSysTab32) Local $aTab_Rect = _GUICtrlTab_GetItemRect($hSysTab32, -1) GUICtrlCreateLabel("", $aTabPos[0]+2, $aTabPos[1]+$aTab_Rect[3]+4, $aTabPos[2]-6, $aTabPos[3]-$aTab_Rect[3]-7) GUICtrlSetBkColor(-1, $sBkColor) GUICtrlSetState(-1, $GUI_DISABLE) EndFuncCODE 2 I THINK IS THE BETHER OPTION IF WORKS #include <GuiTab.au3> #include <WindowsConstants.au3> #include <GUIConstantsEx.au3> ; //////////////////////////////MENU\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ ; $GUI = GUICreate("", 450, 600, 0, 0); BitOR($WS_SIZEBOX, $WS_MINIMIZEBOX)) ;GUICtrlCreateMenu("") ;GUISetBkColor(0x940F1B) GUISetIcon("hunosicon.ico") $Pic1 = GUICtrlCreatePic("img\App\barra.jpg", 0, 0, 450, 120) $Button1 = GUICtrlCreateButton("BACK TO GUI", 0, 580, 450, 20); TESTE BUTON $Tab = GUICtrlCreateTab(1,120) GUICtrlCreateTabItem("A") $Button1 = GUICtrlCreateButton("AAAAAAA", 16, 254, 75, 25) ;GUICtrlSetState(-1, $GUI_SHOW) GUICtrlCreateTabItem("B") $Button2 = GUICtrlCreateButton("BBBBBBBB", 16, 254, 75, 25) GUICtrlCreateTabItem("C") GUICtrlCreateTabItem("D") GUICtrlCreateTabItem("E") GUICtrlCreateTabItem("") GUISetState() ; //////////////////////////////MENU1\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ $GUI_Child_1 = GUICreate("", 450, 440, 0, 120, BitOR($WS_POPUP, 0), $WS_EX_MDICHILD, $GUI) ;GUISetBkColor(0xE0A652) $Tab1 = GUICtrlCreateTab(0,0,455,440,$tcs_buttons) ; _GUICtrlTab_SetBkColor($GUI_Child_1, $Tab1, 0xFFCCCC) GUICtrlCreateTabItem("<----") GUICtrlCreateTabItem("11") GUICtrlCreateTabItem("22") $Button3 = GUICtrlCreateButton("222222", 16, 254, 75, 25) GUICtrlCreateTabItem("33") GUICtrlCreateTabItem("44") GUICtrlCreateTabItem("55") GUICtrlCreateTabItem("66") GUICtrlCreateTabItem("") GUISetState(@SW_HIDE) ; //////////////////////////////MENU 2\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ ;<---, CASTELO PRINCIPAL, PA1, PA2, PA3 $GUI_Child_2 = GUICreate("", 445, 440, 0, 120, BitOR($WS_POPUP, $WS_BORDER), $WS_EX_MDICHILD, $GUI) ;GUISetBkColor(0xAAAE6AA) $Tab2 = GUICtrlCreateTab(0,0,455,440,$tcs_buttons) ; _GUICtrlTab_SetBkColor($GUI_Child_2, $Tab2, 0xFFAACC) GUICtrlCreateTabItem("<----") GUICtrlCreateTabItem("H2O") $Button4 = GUICtrlCreateButton("WATER C", 16, 254, 75, 25) GUICtrlCreateTabItem("CO2") GUICtrlCreateTabItem("H2") GUICtrlCreateTabItem("02") GUICtrlCreateTabItem("") GUISetState(@SW_HIDE) While 1 $msg = GUIGetMsg() Switch $msg Case -3 Exit Case $Tab $SelTab = _GUICtrlTab_GetCurSel($Tab) _GUICtrlTab_SetCurSel($Tab1, 2) ;_GUICtrlTab_SetCurSel($Tab2, 1) Switch $SelTab Case 3 GUISetState(@SW_HIDE,$GUI_Child_2) GUISetState(@SW_SHOW,$GUI_Child_1) EndSwitch Case $Tab1 ; $SelTab1 = _GUICtrlTab_GetCurSel($Tab1) _GUICtrlTab_SetCurSel($Tab2, 1) Switch $SelTab1 Case 0 ;MsgBox("0", "tttt", "hehhheh") _GUICtrlTab_ClickTab($Tab, 0, "left", False, 1, 100); GO BACK TO MENU Case 1 GUISetState(@SW_SHOW,$GUI_Child_2) GUISetState(@SW_HIDE,$GUI_Child_1) EndSwitch Case $Tab2 ; $SelTab2 = _GUICtrlTab_GetCurSel($Tab2) ;_GUICtrlTab_SetCurSel($Tab1, 2) Switch $SelTab2 Case 0 ;MsgBox("0", "tttt", "h55555") _GUICtrlTab_ClickTab($Tab, 0, "left", False, 1, 100); GO BACK TO MENU1 EndSwitch Case $Button1 _GUICtrlTab_ClickTab($Tab, 0, "left", False, 1, 100) EndSwitch WEnd Func _GUICtrlTab_SetBkColor($hWnd, $hSysTab32, $sBkColor) Local $aTabPos = ControlGetPos($hWnd, "", $hSysTab32) Local $aTab_Rect = _GUICtrlTab_GetItemRect($hSysTab32, -1) GUICtrlCreateLabel("", $aTabPos[0]+2, $aTabPos[1]+$aTab_Rect[3]+4, $aTabPos[2]-6, $aTabPos[3]-$aTab_Rect[3]-7) GUICtrlSetBkColor(-1, $sBkColor) GUICtrlSetState(-1, $GUI_DISABLE) EndFuncAny idea? I have been Reading a lot of the help file and web, but didnt get Thanks

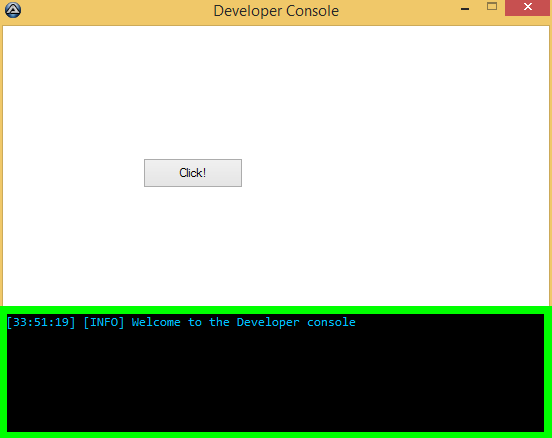

How can I make a GUI like stated in the question ? Here is a screenshot showing a part of my GUI which needs to be detached: TD

Hi, I was wondering why there is no panel control in autoit, this can be useful for moving/hidding more than one control at time. I have made some searches and I found nothing on it so I decided to create an UDF on it. In order to do that, It creates child GUIs and you can manage it as real controls (coord mode based on the parent GUI and not on the screen), so I have made it to be really easy in use like any other ctrl. Preview : Example : #include <WindowsConstants.au3> #include <GUIConstantsEx.au3> #include "GUIPanel_UDF.au3" Opt("GUIOnEventMode", 1) Global $sLogo4imgPath = @ProgramFilesDir & "\AutoIt3\Examples\GUI\logo4.gif" Global $iPanel1step = 0, $iPanel3step = 0 #region GUI $GUI = GUICreate("GUIPanel UDF - Example", 400, 350) GUISetOnEvent($GUI_EVENT_CLOSE, "_Exit") GUICtrlCreateLabel("Label on the GUI", 300, 320) #region Panel1 $hPanel1 = _GUICtrlPanel_Create($GUI, "Coords", 10, 40, 200, 50) _GUICtrlPanel_SetBackground($hPanel1, 0xFF0000) GUICtrlCreateLabel("Label on the Panel1", 5, 5, 95, 13) $btnPanel1 = GUICtrlCreateButton("Swap with Panel4", 10, 20, 100, 22) GUICtrlSetOnEvent($btnPanel1, "_Panel1_BtnEvent") #endregion Panel1 #region Panel2 $hPanel2 = _GUICtrlPanel_Create($GUI, "BottomLeft", 0, 0, 200, 100, $WS_BORDER, @SW_SHOWNA, 0x00FF00) GUICtrlCreateLabel("Label on the Panel2", 5, 5, 95, 13) #region Panel2Sub $hPanel2Sub = _GUICtrlPanel_Create($hPanel2, "CenterRight", 0, 0, 120, 30, $WS_BORDER, @SW_SHOWNA) Global $aGUIPanelExample_Panel2SubPos = _GUICtrlPanel_GetPos($hPanel2Sub) GUICtrlCreateLabel("Pos (X, Y) : " & $aGUIPanelExample_Panel2SubPos[0] & ", " & $aGUIPanelExample_Panel2SubPos[1], 5, 8, 100, 13) #endregion #endregion Panel2 #region Panel3 $hPanel3 = _GUICtrlPanel_Create($GUI, "Centered", 0, 0, 169, 68, $WS_BORDER, @SW_SHOWNA, $sLogo4imgPath) $btnPanel3 = GUICtrlCreateButton("Move me", 10, 10, 70, 22) GUICtrlSetOnEvent($btnPanel3, "_Panel3_BtnEvent") GUICtrlCreateCheckbox("no event", 70, 55, 68, 13) GUICtrlSetBkColor(-1, 0xFFFFFF) #endregion Panel3 #region Panel4 $hPanel4 = _GUICtrlPanel_Create($GUI, "TopRight", 0, 0, 100, 50, $WS_BORDER) GUICtrlCreateCombo("Panel4", 10, 10, 80) #endregion Panel4 GUISetState(@SW_SHOW, $GUI) #endregion GUI While 1 Sleep(1000) WEnd Func _Panel3_BtnEvent() Switch $iPanel3step Case 0 _GUICtrlPanel_SetPos($hPanel3, "CenterRight") GUICtrlSetData($btnPanel3, "Hide me") Case 1 _GUICtrlPanel_SetState($hPanel3, @SW_HIDE) EndSwitch $iPanel3step += 1 EndFunc ;==>_Panel3_BtnEvent Func _Panel1_BtnEvent() Switch $iPanel1step Case 0 _GUICtrlPanel_SetPos($hPanel1, "TopRight") _GUICtrlPanel_SetPos($hPanel4, "Coords", 10, 40) GUICtrlSetData($btnPanel1, "Disable me") Case 1 _GUICtrlPanel_SetState($hPanel1, @SW_DISABLE) GUICtrlSetData($btnPanel1, "Disabled") EndSwitch $iPanel1step += 1 EndFunc ;==>_Panel1_BtnEvent Func _Exit() Exit EndFunc ;==>_Exit Attachments : GUIPanel_UDF.au3 (Previous: 279 downloads) GUIPanel_Example.au3 Enjoy !
